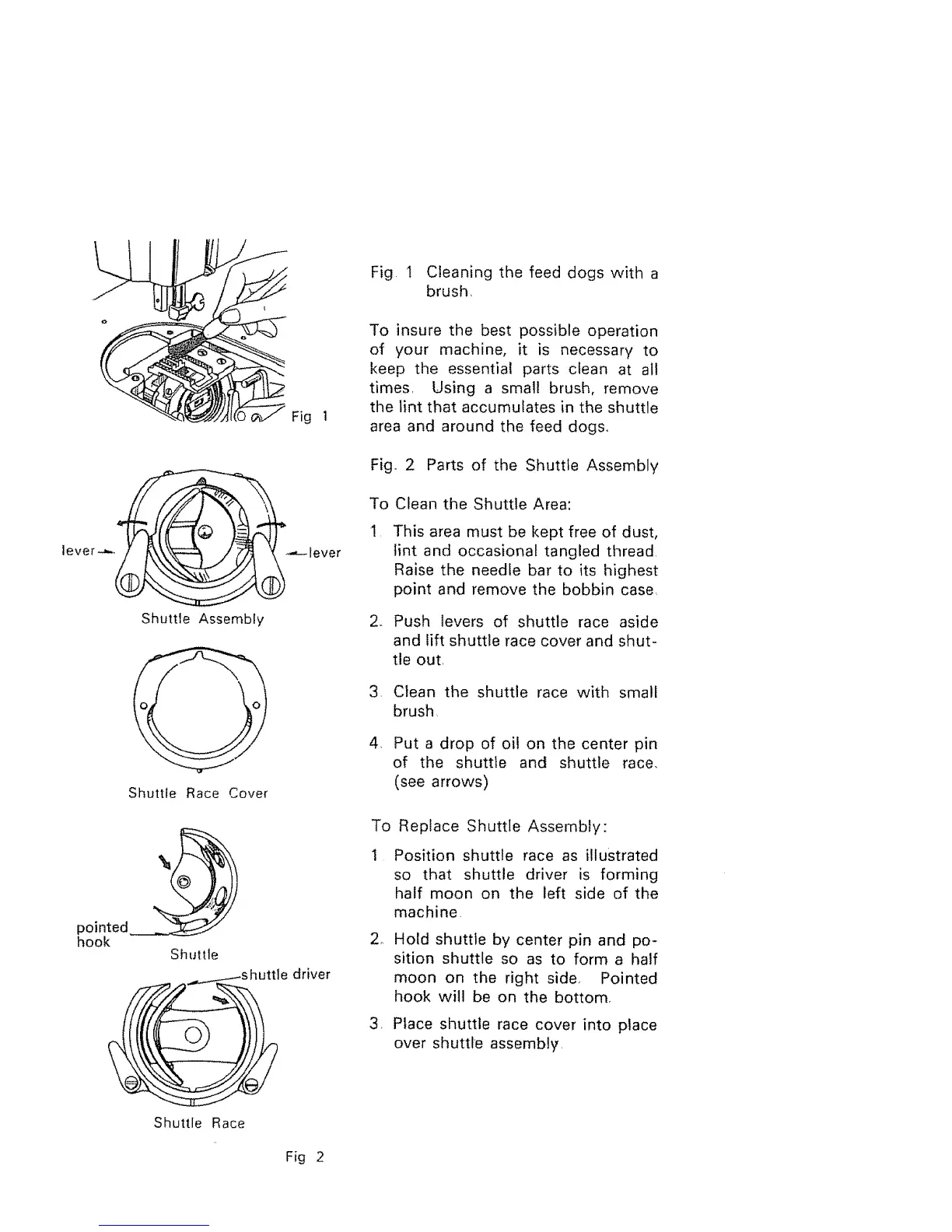

Fig. 1 Cleaning the feed dogs with a
brush,
Fig I
Iever -,-./tl_ _._ f_\o_- lever
Shuttle Assembly
Shuttle Race Cover
pointed_
hook
Shuttle
driver
Shuttle Race
To insure the best possible operation
of your machine, it is necessary to
keep the essential parts clean at all
times. Using a small brush, remove
the lint that accumulates in the shuttle
area and around the feed dogs.
Fig. 2 Parts of the Shuttle Assembly
To
1
Am
Clean the Shuttle Area:
This area must be kept free of dust,
lint and occasional tangled thread
Raise the needle bar to its highest
point and remove the bobbin case,
Push levers of shuttle race aside
and lift shuttle race cover and shut-
tle out,
3, Clean the shuttle race with small
brush
4, Put a drop of oi! on the center pin
of the shuttle and shuttle race,
(see arrows)
To Replace Shuttle Assembly:
1 Position shuttle race as illustrated
so that shuttle driver is forming
half moon on the left side of the
machine
2. Hold shuttle by center pin and po-
sition shuttle so as to form a half
moon on the right side, Pointed
hook will be on the bottom.
3, Place shuttle race cover into place
over shuttle assembly,
Fig 2
