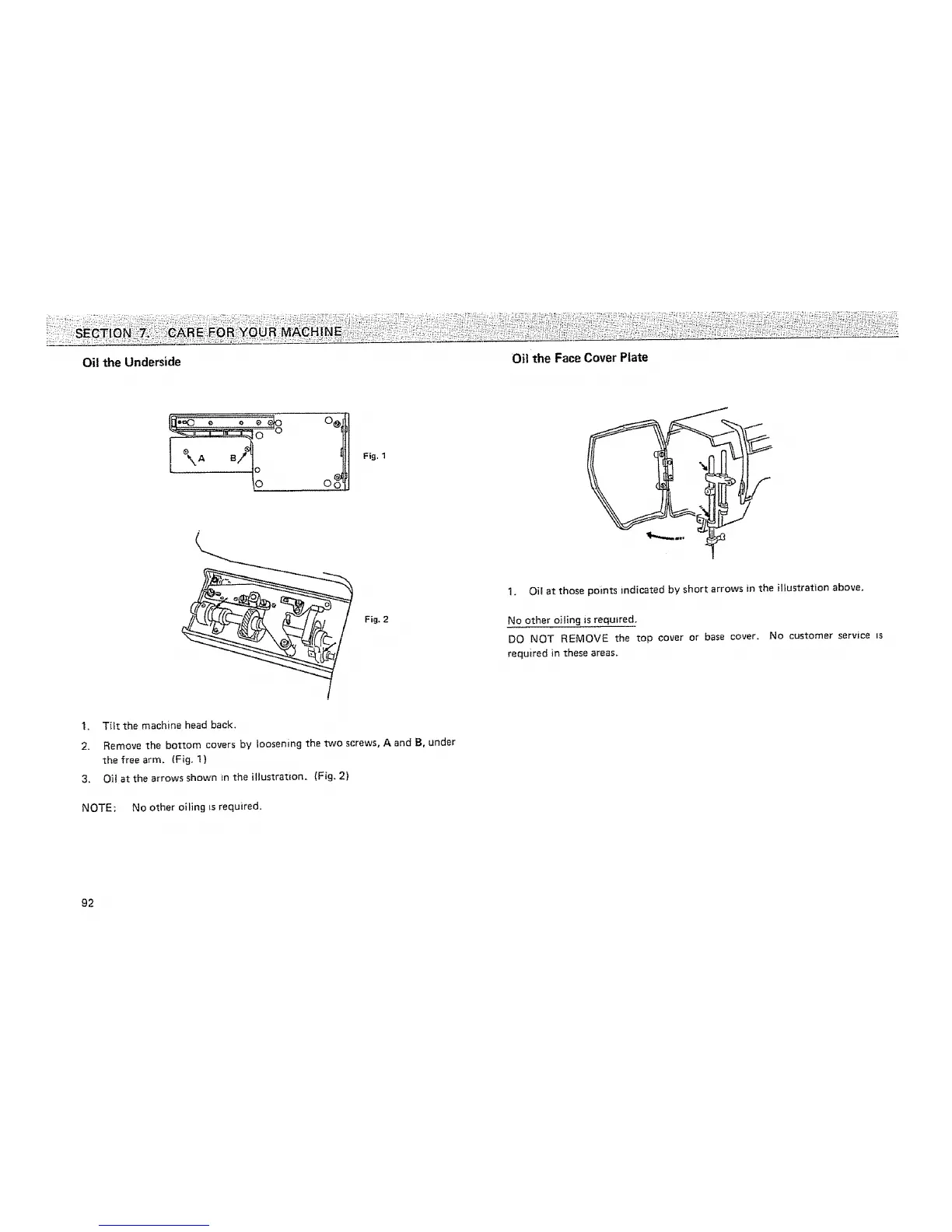

Oil the Underside
Oil the Face Cover Plate
%xA
o
Fig. 1
Fig. 2
I. Tiltthe machine head back.
2. Remove the bottom covers by loosening the two screws, A and B, under
the free arm, _Fig. 1)
3. Oil at the arrows shown _n the illustration, (Fig, 2)
NOTE: No other oiling is required.
1. Oil at those points indicated by short arrows in the il|ustration above.
No other oiting is required.
DO NOT REMOVE the top cover or base cover, No customer service Js
required in these areas.
92
