Assembly of the Surface Burner Heads, Burner Caps and Burner Grates
Before Setting Surface Controls
use.
Locations of the Gas Surface Burners
The SIMMER burner is best used for simmering
delicate sauces, etc. This burner is located at the right
rear burner position on the cooktop.
The STANDARD sized burners are used for most
surface cooking needs. These burners are located at
the left rear and center positions on the cooktop.
The POWER burners are best used for bringing large
quantities of liquid rapidly up to temperature or when
preparing larger quantities of food. These burners are
located at the right front and left front positions on the
cooktop.
FRONT REAR CENTER REAR FRONT
POWER
BURNER
SIMMER
BURNER
Figure 3
Heads (Figure 1). Note: The Burner Heads should sit flat on
Cooktop Burner Skirts.
5. Unpack Burner Grates and position on cooktop.
REMEMBER — DO NOT ALLOW SPILLS, FOOD, CLEANING
AGENTS OR ANY OTHER MATERIAL TO ENTER THE GAS
ORIFICE HOLDER OPENING. Always keep the Burner Caps
and Burner Heads in place whenever the surface burners are in
Electrodes
must align into slot or hole
for each Burner Head
Figure 1
Figure 2

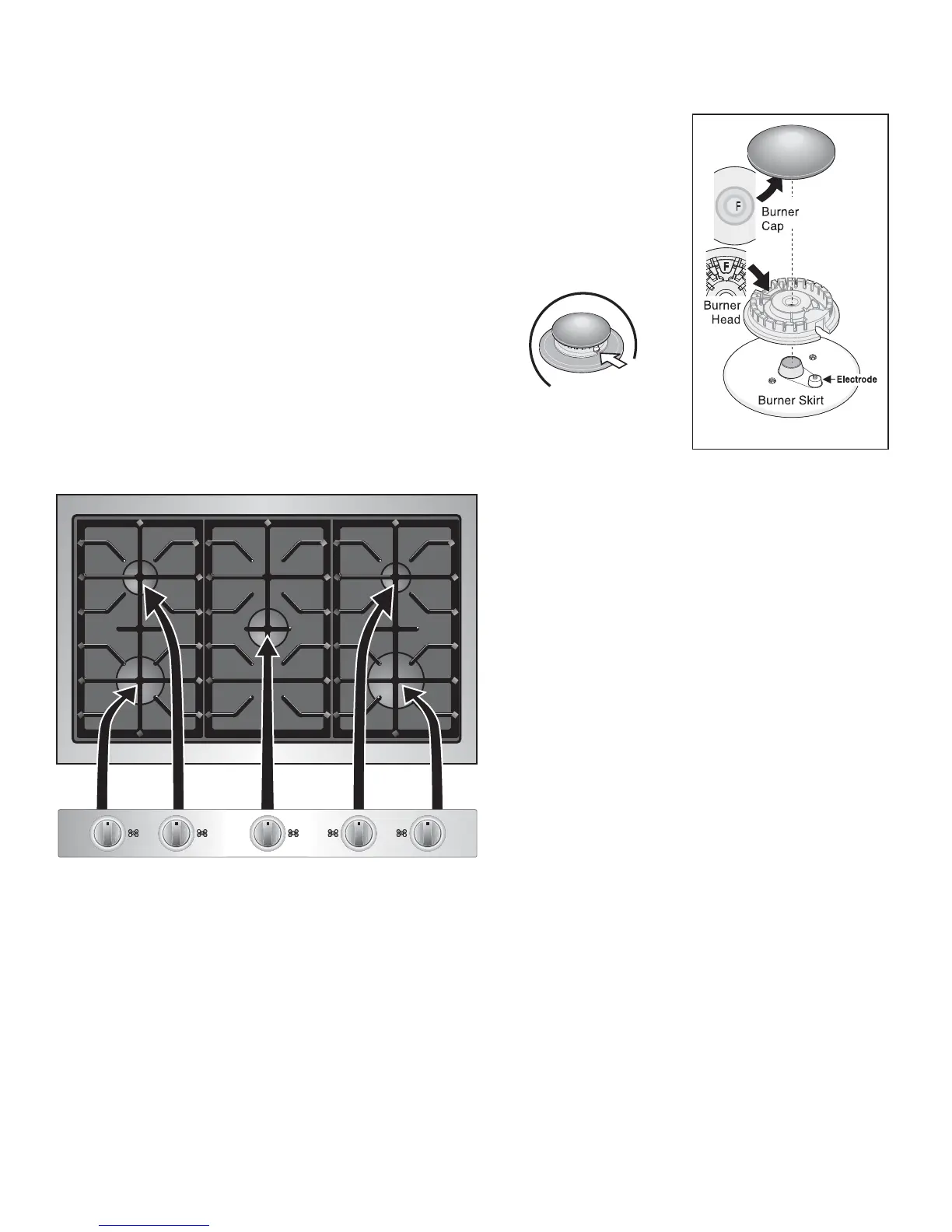

It is very important to make sure that all of the Surface Burner Heads, Surface Burner
Caps and Surface Burner Grates are installed correctly and at the correct locations.
1. Remove all packing tape from cooktop. Remove Burner Caps and Burner Heads.
2. Discard all packing material located under all Burner Heads.
3. To replace Burner Heads & Caps, match the letters located under center of Burner Caps
with the letters located inside Burner Head (See Figure 2).
4. Match the letters stamped on Burner skirts with Burner Heads and Burner Caps on
cooktop (See Figure 2). Carefully align the Electrodes into slots or holes of the Burner
To Next Page
