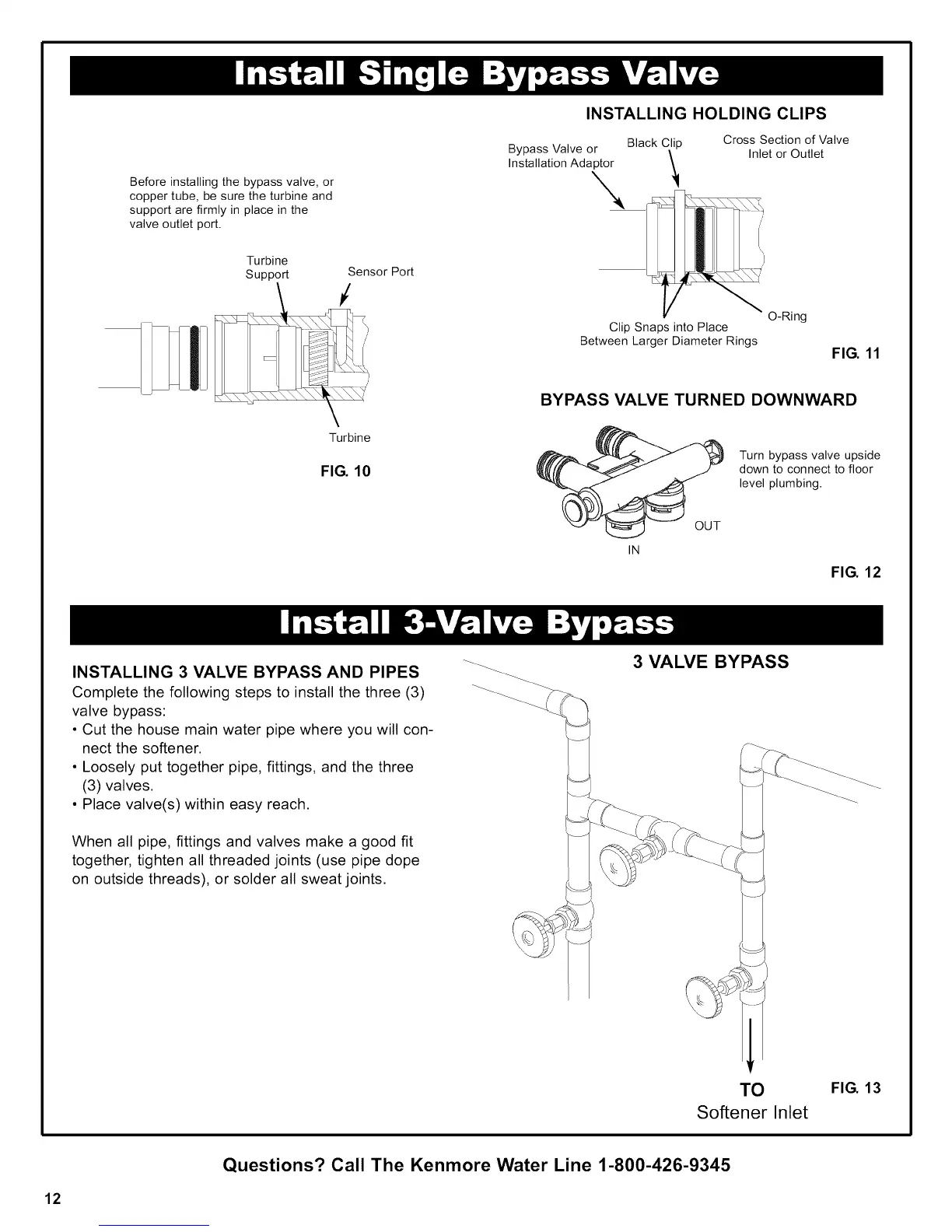

Before installing the bypass valve, or
copper tube, be sure the turbine and
support are firmly in place in the
valve outlet port.
Turbine
Support Sensor Port
H/I
Turbine
FIG. 10
INSTALLING HOLDING CLIPS
Bypass Valve or
Installation Adaptor
Black Cli Cross Section of Valve
Inlet or Outlet
Clip Sna)s into Place
Between Larger Diameter Rings
O-Ring
FIG. 11
BYPASS VALVE TURNED DOWNWARD
Turn bypass valve upside
down to connect to floor
level plumbing.
IN
OUT
FIG. 12
INSTALLING 3 VALVE BYPASS AND PIPES
Complete the following steps to install the three (3)
valve bypass:
• Cut the house main water pipe where you will con-
nect the softener.
• Loosely put together pipe, fittings, and the three
(3) valves.
• Place valve(s) within easy reach.
When all pipe, fittings and valves make a good fit
together, tighten all threaded joints (use pipe dope
on outside threads), or solder all sweat joints.
3 VALVE BYPASS
TO FIG. 13
Softener Inlet
Questions? Call The Kenmore Water Line 1-800-426-9345
12
