Kenwood AG-203 User Manual

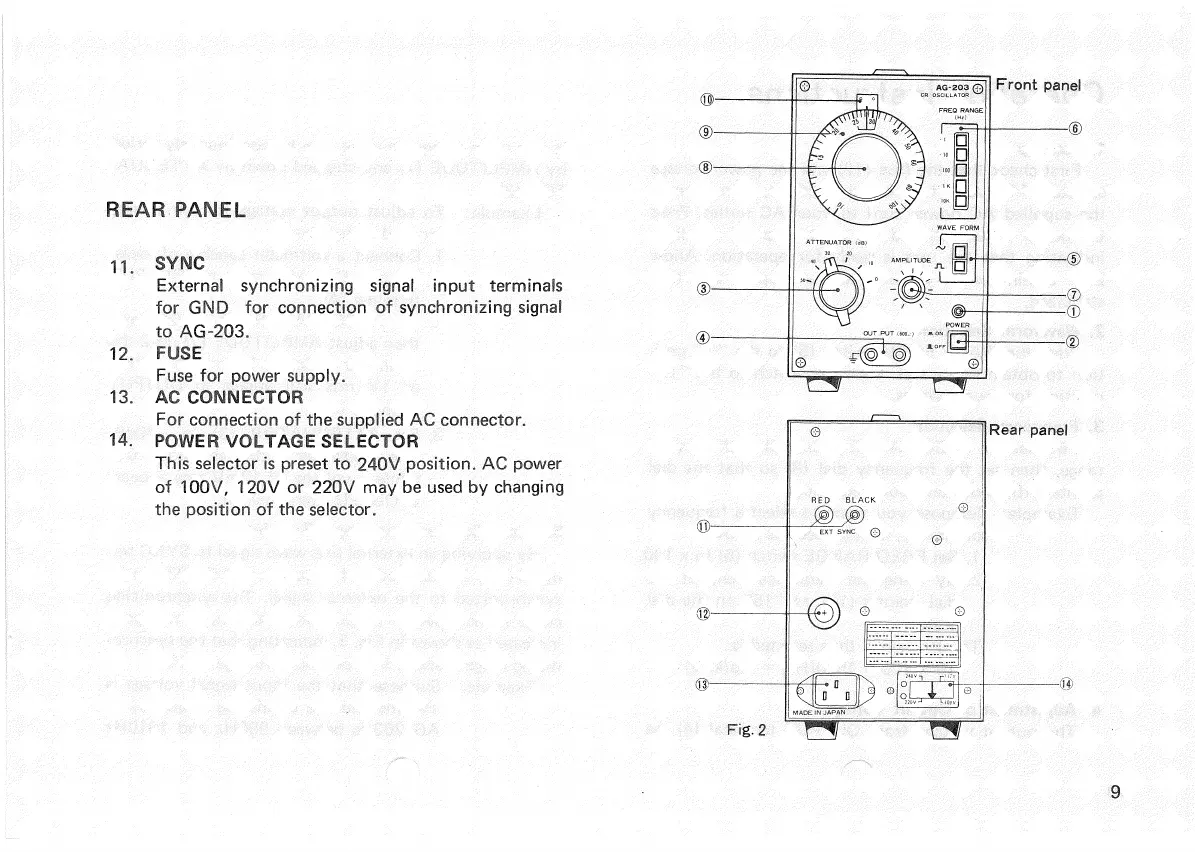

REAR.PANEL- ' ' .
11. SYNC
External synchronizing signal input terminals
for GND for connection of synchronizing signal
to AG-203.
12. FUSE
Fuse for power supply.
13. AC CONNECTOR
For connection of the supplied AC connector.
14. POWER VOLTAGE SELECTOR •
This selector is preset to 240V position. AC power
of 100V, 120V or 220V may be used by changing
the position of the selector.
Front panel
] Rear panel
FIG. 2
