Kenwood DMX958XR User Manual

Connection/Installation
94

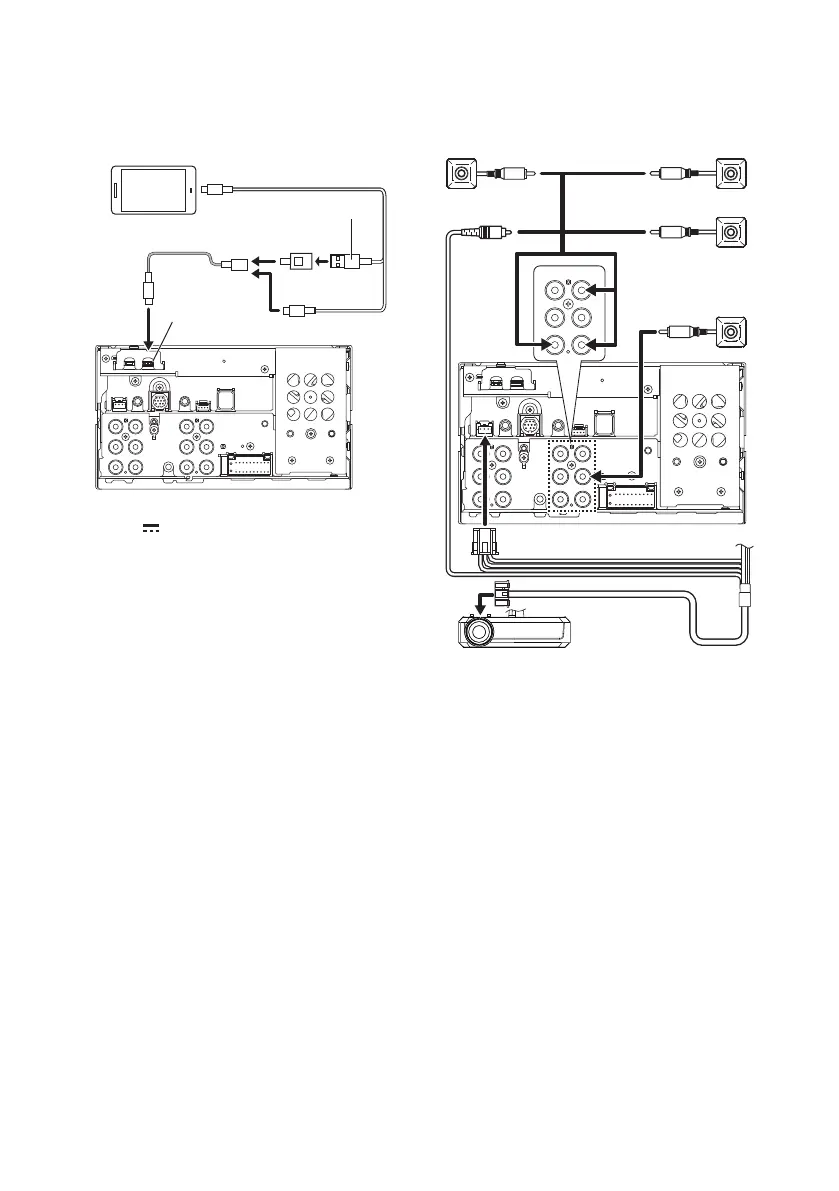

Ñ Connecting an Android
smartphone
USB Type-A Cable
[2]
Android smartphone
[2]
USB terminal
[1]
USB Type-C Cable
[2]
Accessory 2 (1.0 m)
Accessory 3
[1]
USB maximum power supply current :
DC 5 V 3.0 A
[2]
Sold separately
Ñ Connecting the camera
3-CAM
R-CAM
F-CAMV-IN
V-OUT
NC
DRV-N520
[1]
[3]
[6]
[5]
Front view camera
[2] [4]
Left side view
camera
[2]
Right side view
camera
[2]
Rear view
camera
[2] [4]
Dashboard camera interface
[1]
Optional accessory
[2]
Sold separately
[3]
Up to 3 cameras of Dashboard camera, Front
view camera, Left side view camera and Right
side view camera can be connected. For
more information, see Camera Assignment
Settings (P.64).
[4]
CMOS-3xx series (optional accessory) or
commercially available camera.
[5]
For HD video, connect an HD camera to Rear
view camera input terminal. (DMX958XR only)
[6]
For HD video, connect an HD camera to
Front view camera/Dashboard camera input
terminal. (DMX958XR only)
