20

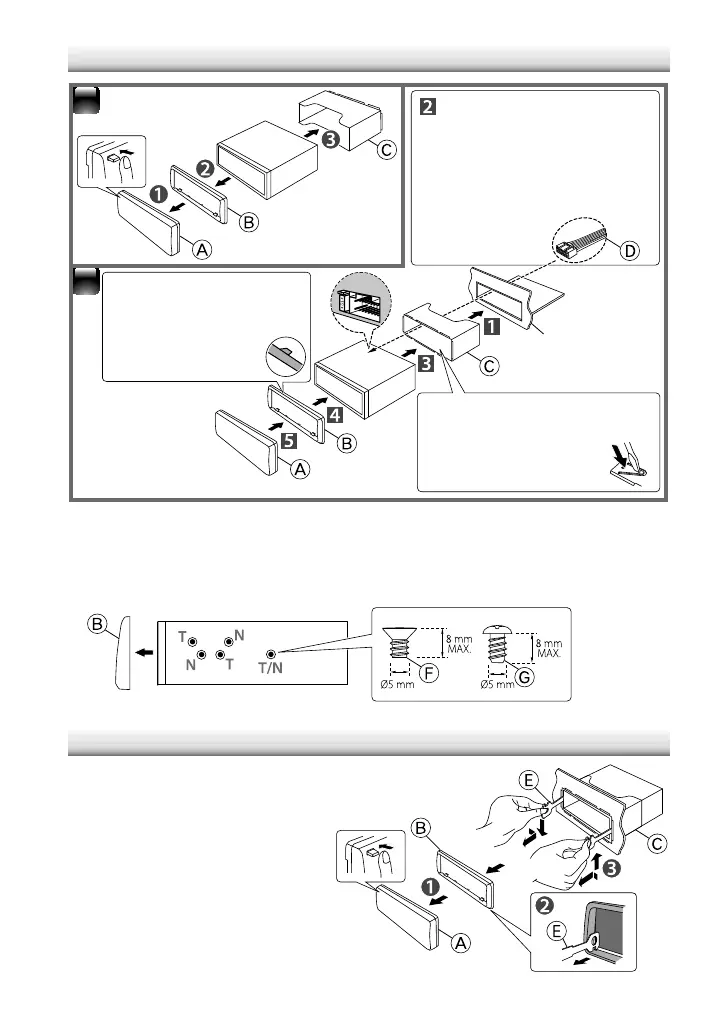

Installing the unit
Removing the unit
Installing without using the mounting sleeve (Japanese car)
1
Remove the mounting sleeve and escutcheon from the unit.
2
Align the holes in the unit (on both sides) with the vehicle mounting bracket and secure
the unit with the supplied screws.
2
1
Connect the wiring harness
to the unit. Other wiring
connection has been completed
earlier. (page 19)
Before attaching, make
sure the direction of the
escutcheon is correct.
(Wider hooks on the
top side.)
Dashboard of your car
T: Toyota cars ; N: Nissan cars
1
Detach the faceplate.
2
Engage the catch pin on the
removal tools into the holes on
both sides of the escutcheon, then
pull it out.
3
Insert the removal tools deeply into
the slots on each side, then follow
the arrows instructions as shown
on the right.
Bend the appropriate tabs
to hold the mounting
sleeve firmly in place.
EN02-21_KDC-200U[K]1.indd 20EN02-21_KDC-200U[K]1.indd 20 4/20/12 12:56:46 PM4/20/12 12:56:46 PM
