English
— 16 —— 16 —
P.CONT
ANT.
CONT.
FRONT • L
FRONT • R
REAR • L
REAR • R
–
+
REAR
L
R
FM/AM antenna input 1
Rear left output (White) 23
Rear right output (Red) 28
Fuse (10A) 24
2 KENWOOD disc changer control input (KDC-4023/3023/2023 only)
Wiring harness
(Accessory1)25
29
White/Black
32
Gray/Black
35
Green/Black
38
Purple/Black
White
31
Gray
34
Green
37
Purple
40
To front left
speaker 30
To front right
speaker 33
To rear right
speaker 39
To rear left
speaker 36
Ignition wire (Red) 20
Battery wire (Yellow) 21
Ground wire (Black) · (To car chassis) 22
Ignition key
switch
10
Car fuse box
(Main fuse)
11
ACC 13
Car fuse
box 14
Battery 12
If no connections are made, do not let the wire come out from the tab.
4
Front left output (White) (KDC-4023 only) 26
Front right output (Red) (KDC-4023 only) 27
To connect the Disc changer, consult your
Disc changer manual. 3
Power control wire (Blue/White) 15
Motor antenna control wire (Blue)
17
5 When using the optional power amplifier,
connect to its power control terminal.
7 Depending on what antenna you are using,
connect either to the control terminal of the
motor antenna, or to the power terminal for
the booster amplifier of the film-type antenna.

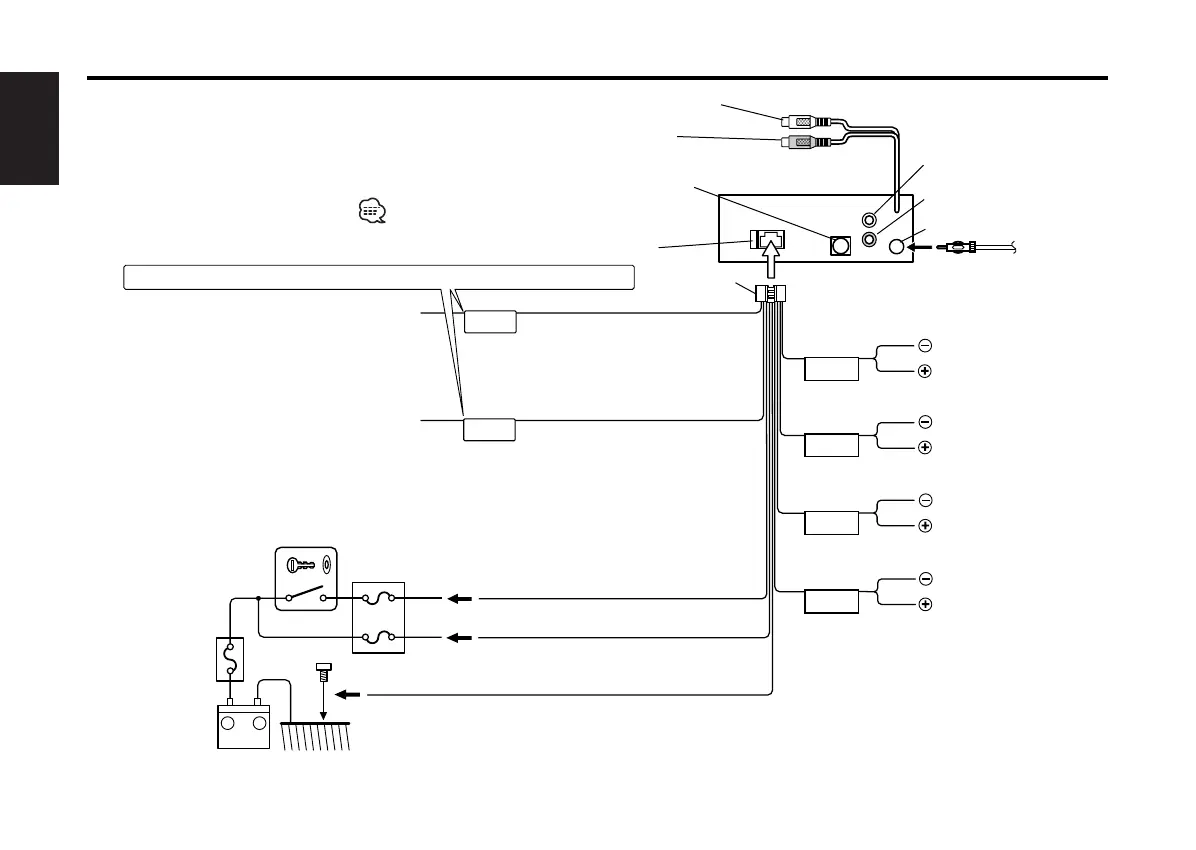

Connecting Wires to Terminals
KDC-4023_U.S 02.9.26 3:09 PM Page 16
