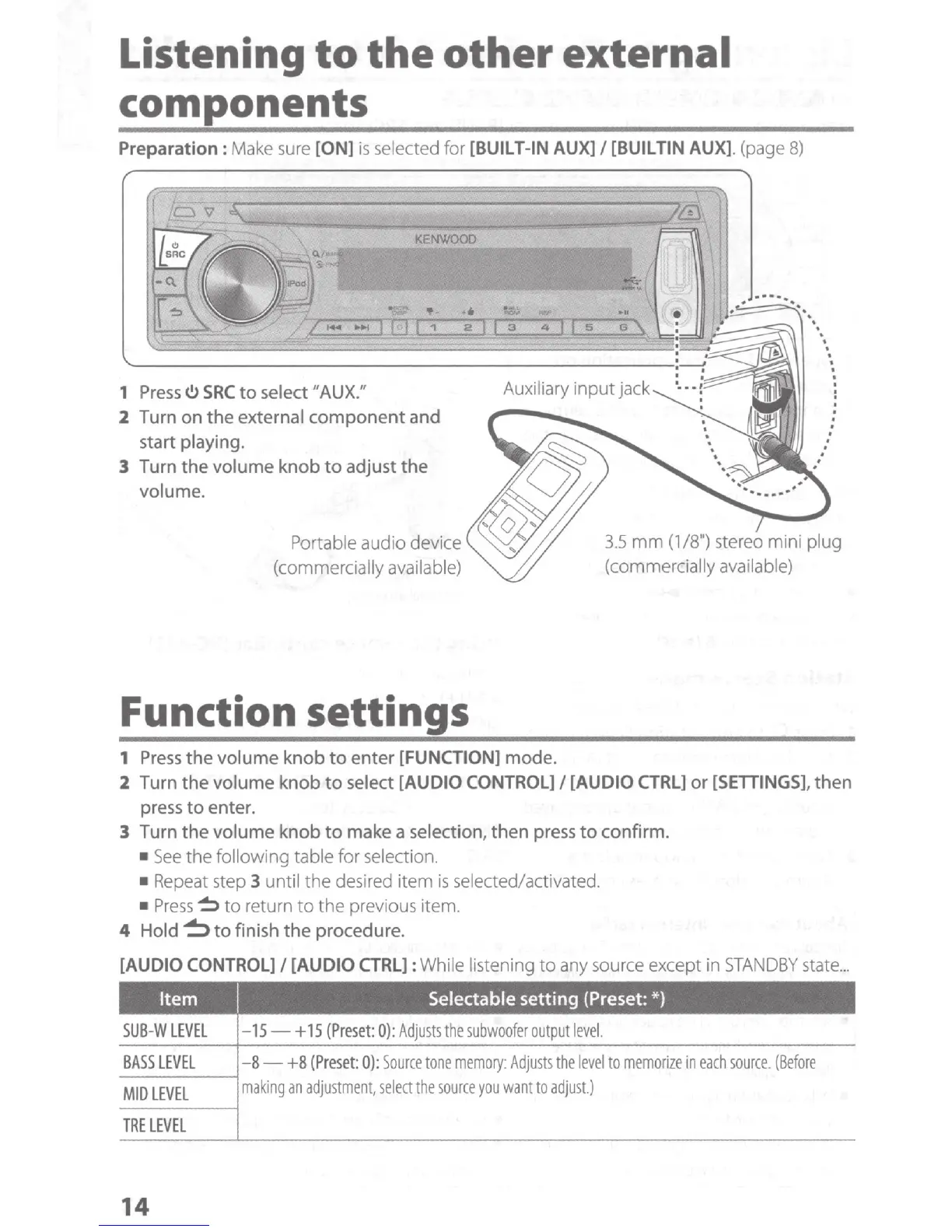

Kenwood KDC-252U User Manual

Listening to the other external
components
Preparation: Make sure [ON] is selected for [BUILT-IN AUX}I [BUILTIN AUX]. (page 8)
1 Press(!) SRC to select "AUX."
2 Turn
on the external component and
start playing.
3 Turn
the volume knob to adjust the
volume .
.
:
.
.
.
.
.
.
Portable audio device
(commercially available)
3.5 mm (1/8") stereo mini plug
(commercially available)
Function settings
1 Press the volume knob to enter [FUNCTION] mode .
2 Turn
the volume knob to select [AUDIO CONTROL] I [AUDIO CTRL] or [SETIINGSL then
press to enter.
3 Turn
the volume knob to make a selection, then press to confirm .
•
See the foll owing table for se lection.
• Repeat step 3 until the desired item
is selected/activated.
•
Press ~ to return to the previous item.
4
Hold~ to finish the procedure.
[AUDIO CONTROL]
I [AUDIO CTRLl : While listening to any source except in STANDBY state ...
Item I Selectable setting (Preset:*)
SUB -W LEVEL - 15 - + 15 (Preset 0) : Adjusts the subwoofer output level.
BASS LEVEL - 8- +8 (Preset 0): Source tone memory: Adjusts the level to memorize in each source. (Before
MID LEVEL making an adjustment, select the source you want to adjust.)
TRE LEVEL
14

Kenwood KDC-252U Specifications

General

MP3 playback	Yes
Playback disc formats	CD audio
Audio formats supported	MP3, WMA
AM band range	530 - 1700 kHz
FM band range	87.9 - 107.9 MHz
Supported radio bands	AM, FM
DIN size	1 DIN
Impedance	8 Ω
Product color	Black
Frequency range	20 - 20000 Hz
CD changer capacity	1 discs
Signal-to-Noise Ratio (SNR)	105 dB
Display type	Fluorescent
Display number of lines	1 lines
Filter	Low-Pass Filter
File format system	FAT 16/32
Amplifier output power	88 W

Weight and Dimensions

Dimensions (WxDxH)	182 x 158 x 53 mm
