ENGLISH
15
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
Warning
• The unit can only be used with a 12 V DC power supply, negative ground.
• Disconnect the battery’s negative terminal before wiring and mounting.
• Do not connect Battery wire (yellow) and Ignition wire (red) to the car chassis or Ground wire (black) to prevent a
short circuit.
• To prevent short circuit:
– Insulate unconnected wires with vinyl tape.
– Be sure to ground this unit to the car’s chassis again after installation.
– Secure the wires with cable clamps and wrap vinyl tape around the wires that comes into contact with metal parts
to protect the wires.
Caution
• For safety’s sake, leave wiring and mounting to professionals. Consult the car audio dealer.
• Install this unit in the console of your vehicle. Do not touch the metal parts of this unit during and shortly after use of
the unit. Metal parts such as the heat sink and enclosure become hot.
• Do not connect the
wires of speakers to the car chassis or Ground wire (black), or connect them in parallel.
• Mount the unit at an angle of less than 30°.
• If your vehicle wiring harness does not have the ignition terminal, connect Ignition wire (red) to the terminal on the
vehicle’s fuse box which provides 12 V DC power supply and is turned on and off by the ignition key.
• Keep all cables away from heat dissipate metal parts.
• After the unit is installed, check whether the brake lamps, blinkers, wipers, etc. on the car are working properly.
• If the fuse blows, first make sure the wires are not touching car’s chassis, then replace the old fuse with one that has
the same rating.
Basic procedure
1
Remove the key from the ignition switch, then disconnect the terminal of the car battery.
2
Connect the wires properly.
See “Wiring connection” on page 17.
3
Install the unit to your car.
See “Installing the unit (in-dash mounting)” on page 16.
4
Connect the terminal of the car battery.
5
Press
B
SRC to turn on the power.
6
Detach the faceplate and reset the unit. (Page3)
INSTALLATION/CONNECTION

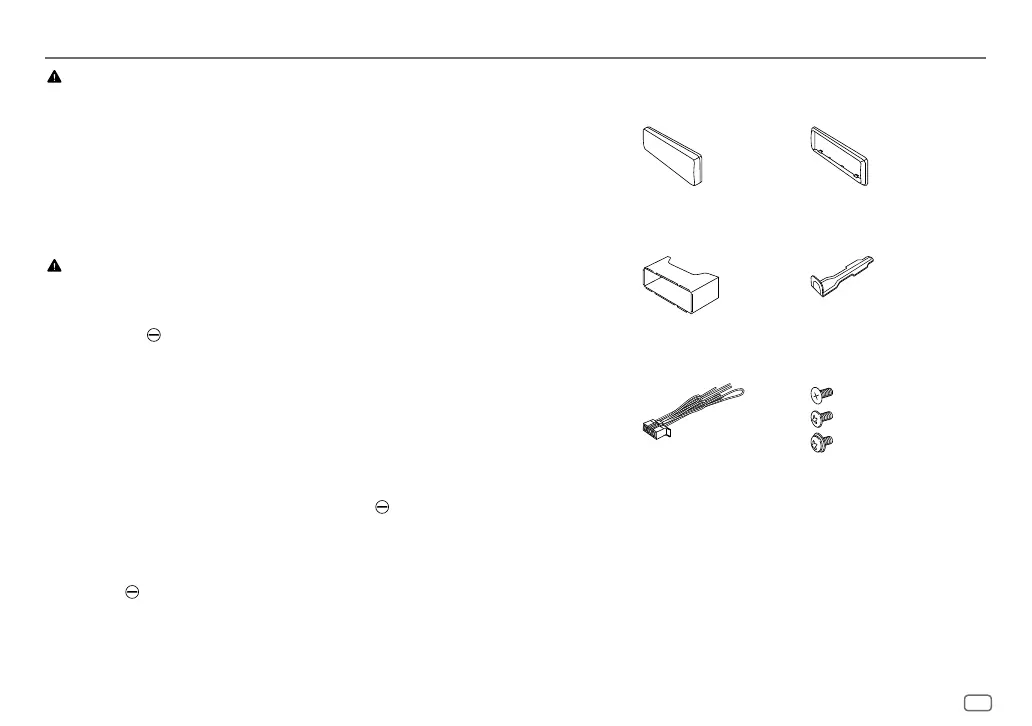

Part list for installation
(A) Faceplate (×1) (B) Trim plate (×1)
(C) Mounting sleeve (×1) (D) Extraction key (×2)
(E) Wiring harness (×1) (F) Screws
M5 × 7 mm (×4)
M5 × 6 mm (×4)
M4 × 8 mm (×1)
JS_KWD_KMM_105_MN_M2N_EN_4th Draft.indd 15JS_KWD_KMM_105_MN_M2N_EN_4th Draft.indd 15 7/24/2018 11:36:45 AM7/24/2018 11:36:45 AM
