Kenwood KRF-V5200D Instruction Manual

English
15

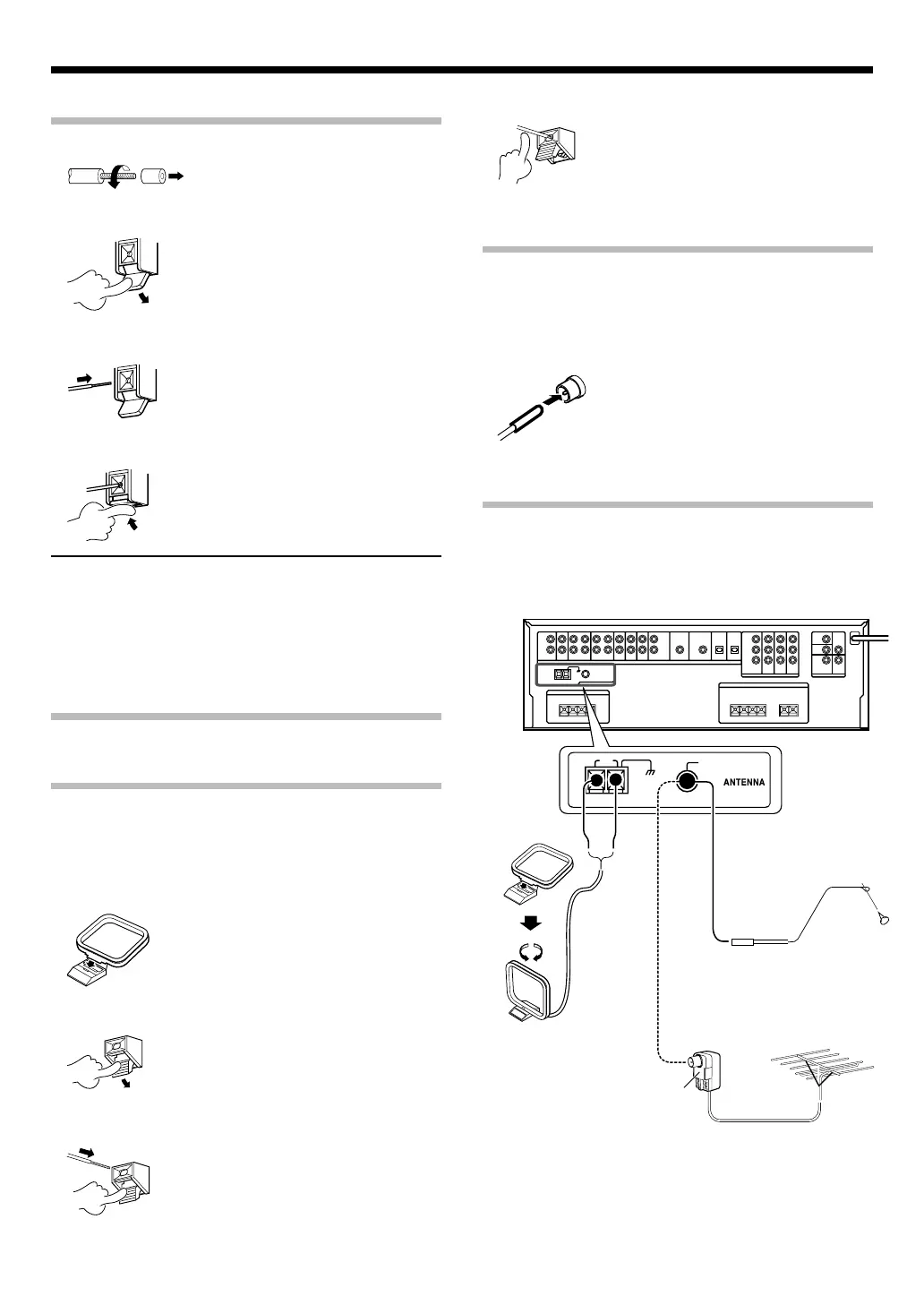

Connecting the terminals
œ Strip coating.
∑ Push the lever.
é Insert the cord.
® Return the lever.
Notes:
• Never short circuit the + and – speaker cords.
• If the left and right speakers are connected inversely or the
speaker cords are connected with reversed polarity, the sound
will be unnatural with ambiguous acoustic imaging. Be sure to
connect the speakers correctly.
Connecting the antennas
The broadcast reception cannot be made unless the antennas are
connected. Connect the antennas correctly as instructed below.
AM loop antennaAM loop antenna
Place the supplied loop antenna as far as possible from the
receiver, TV set, speaker cords and power cord. Adjust the
direction for best reception.
œ Attach to the stand.
∑ Push the lever.
é Insert the antenna cord.
® Release the lever.
† Place the antenna and adjust the direction.
FM indoor antennaFM indoor antenna
The supplied indoor antenna is for temporary use only. For stable
signal reception we recommend using an outdoor antenna.
Disconnect the indoor antenna when you connect one outdoors.
œ Insert the antenna cord.
∑ Fix the antenna on the wall.
FM outdoor antennaFM outdoor antenna
Lead the 75Ω coaxial cable connected to the FM outdoor antenna
into the room and connect it to the FM 75Ω terminal.
GND
AM
FM 75
7
Attach to
the stand
AM loop antenna
Use an antenna
adapter
(commercially
available)
FM indoor antenna
FM outdoor antenna
(commercially available)
B60-5676-0000.indd15B60-5676-0000.indd15 07.4.129:57:14AM07.4.129:57:14AM

Kenwood KRF-V5200D Specifications

General

Brand	Kenwood
Model	KRF-V5200D
Category	Stereo Receiver
Language	English
