Kenwood KT-7020 Service Manual

KT-7020

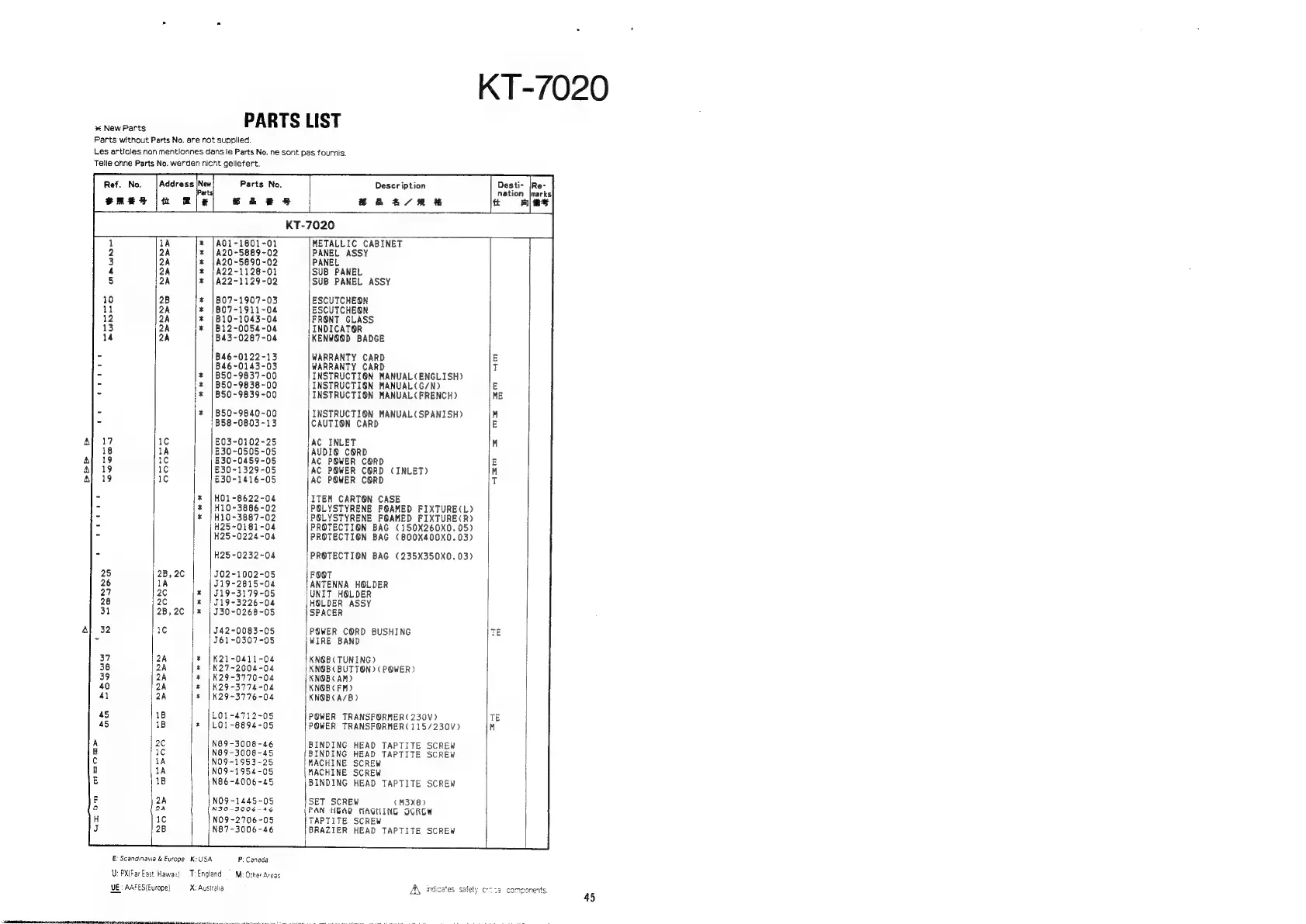

PARTS LIST
> New Parts
Parts without Parts No. are not supplied.
Les articles non mentlonnes dans te Parts No. ne sont pas fournis.
Telle ohne Parts No. werden nicht gellefert.
Address Parts No. Description
i ga € & Ba ASR EH
KT-7020
AQ1-1801-01 METALLIC CABINET
A20-5889-02 PANEL ASSY
A20-5890-02 PANEL
A22-1128-01 SUB PANEL
A22-1129-02 SUB PANEL ASSY
BO7~1907-03 ESCUTCHEON
BO7-1911~-04 ESCUTCHEON
B10-1043-04 FRONT GLASS
B12-0054-04 INDICATOR
B43-0287-04 KENWOOD BADGE
B46-0122-13 WARRANTY CARD E
B46-0143-03 WARRANTY CARD T
B50-9637-00 INSTRUCTION MANUAL(ENGLISH)
B50-9838-00 INSTRUCTION MANUAL(G/N) E
BS0-9839-00 INSTRUCTION MANUAL( FRENCH) ME
B50-9840-00 INSTRUCTION MANUAL (SPANISH) M
B58-0803-13 CAUTION CARD E
E03-0102-25 AC INLET M
E30-0505-05 AUDIO CORD
B30-0459-05 AC POWER CORD E
E30-1329-05 AC POWER CORD (INLET) M
£30-1416-05 AC POWER CORD T
HO1-8622-04 ITEM CARTON CASE
H10-3866-02 POLYSTYRENE FOAMED FIXTURE(L)
H10-3887-02 POLYSTYRENE FOAMED FIXTURE(R)
H25~0181-04 PROTECTION BAG (150X260X0.05)
H25-0224-04 PROTECTION BAG (800X400X0.03)
H25-0232-04 PROTECTION BAG (235X350X0.03)
J02-1002-05 FOOT
J19-2815-04 ANTENNA HOLDER
J19-3179-05 UNIT HOLDER
J19-3226-04 HOLDER ASSY
J30-0268-05 SPACER
J42-0083-05 POWER CORD BUSHING
J61~-0307-05 WIRE BAND
K21-0411-04 KNOB( TUNING)
K27~-2004-04 KNOB( BUTTON) (POWER)
K29-3770-04 KNOBC AM)
K29-3774-04 KNOBCFM)
K29~-3776-04 KNOB A/B)
L01-4712-05 POWER TRANSFORMER(230V)
LO1-8894-05 POWER TRANSFORMER(115/230V)
A N89-3008-46 BINDING HEAD TAPTITE SCREW
B
N89-3008-45
BINDING
HEAD
TAPTITE
SCREW
c N09-1953-25 MACHINE SCREW
D NO9~-1954-05 MACHINE SCREW
E N86-4006-45 BINDING HEAD TAPTITE SCREW
F NQ9~-1445-05 SET SCREW (M3X8)
co
N30-3006-46
PAN
HGAQ
MAGHING
SORCH
H NO9-2706-05 TAPTITE SCREW
J N87-3006-46 BRAZIER HEAD TAPTITE SCREW
E. Scandinavia & Europe K:USA P. Canada
U: PX(Far East Hawan) T: England = M: Other Areas
UE
:
AAFES(Europe}
X:
Australia
A
indicates
safety
cot
components.
45

Kenwood KT-7020 Specifications

FM Tuner Section

tuning frequency range	87.5 MHz - 108 MHz
usable sensitivity (MONO)	0.95 µV/10.8 dB
total harmonic distortion (MONO)	0.007%
signal to noise ratio (MONO)	92 dB
stereo separation (1 kHz)	65 dB
capture ratio	1.0 dB (WIDE)
alternate channel selectivity (+400 kHz)	60 dB (WIDE)
image rejection ratio (at 98 MHz)	82 dB
IF rejection ratio (at 98 MHz)	110 dB
spurious rejection ratio (at 98 MHz)	105 dB
AM suppression ratio	76 dB
frequency response	20 Hz - 15 kHz, +0.5 dB, -0.5 dB
output level/impedance	0.6 V/3.3 kΩ

AM Tuner Section

tuning frequency range	531 kHz - 1, 602 kHz
usable sensitivity	10 µV (350 µV/m)
signal to noise ratio	55 dB
total harmonic distortion	0.25%
image rejection ratio (Loop)	40 dB
selectivity	30 dB
output level/impedance	0.18 V/3.3 kΩ

General

power consumption	20 W
dimensions (W x H x D)	440 mm x 98 mm x 318 mm
weight	4.3 kg
