Kenwood P-110 Service Manual

P-110

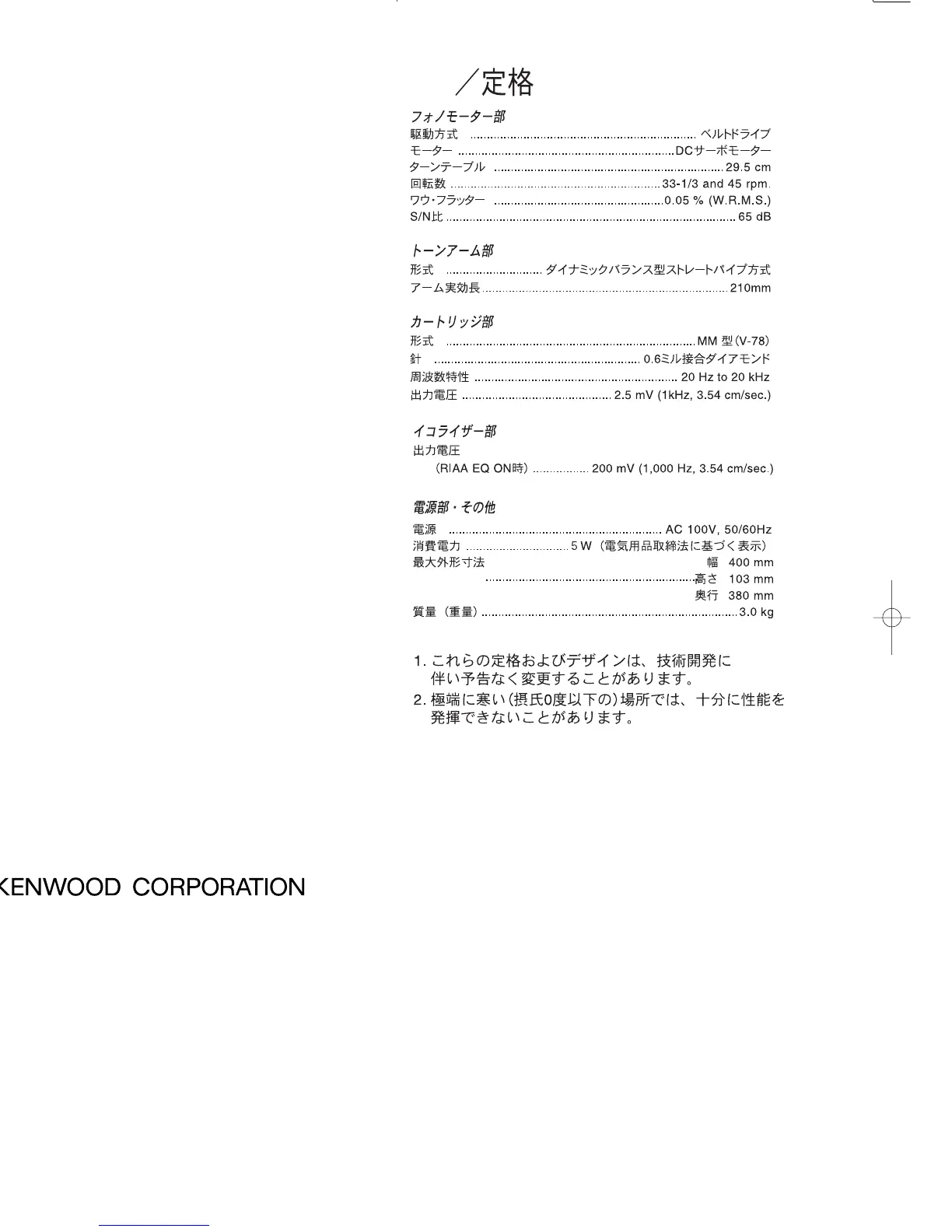

SPECIFICATIONS
14-6,Dogenzaka 1-chome, Shibuya-ku, Tokyo, 150-8501 Japan
KENWOOD SERVICE CORPORATION
P.O BOX 22745, 2201 East Dominguez St., Long Beach, CA 90801-5745, U.S.A.
KENWOOD ELECTRONICS CANADA INC.
6070 Kestrel Road, Mississauga, Ontario, Canada L5T 1S8
KENWOOD ELECTRONICS LATIN AMERICA S.A.
P.O BOX 55-2791, Piso 6 plaza Chase, Cl. 47 y Aquilino de la Guardia Panama, Republic de Panama
KENWOOD ELECTRONICS BRASIL LTDA.
Av Indianópolis, 628, 04062-001 Planalto Paullsta São Paulo-SP-Brasil
KENWOOD ELECTRONICS U.K. LIMITED
KENWOOD House, Dwight Road, Watford, Herts., WD1 8EB., United Kingdom
KENWOOD ELECTRONICS BELGUM N.V.
Meachelsesteenweg 418, B-1930 Zaventem, Belgium
KENWOOD ELECTRONICS DEUTSCHLAND GMBH
Rembrücker Str. 15, 63150 Heusenstamm, Germany
KENWOOD ELECTRONICS FRANCE S.A.
13 Boulevard Ney, 75018 Paris, France
KENWOOD ELECTRONICS ITALIA S.p.A.
Via G. Sirtori, 7/9 20129, Milano, ltaly
KENWOOD IBÉRICA S.A.
Bolivia, 239-08020 Barcelona, Spain
KENWOOD ELECTRONICS AUSTRALIA PTY. LTD.
(A.C.N. 001499 074)
P.O Box 504, 8 Figtree Drive, Australia Centre, Homebush, N.S.W. 2140, Australia
KENWOOD & LEE ELECTRONICS, LTD.
Unit 3712-3724, Level 37, Tower 1, Metroplaza, 223 Hing Fong Road, Kwai Fong N.T., Hong Kong
KENWOOD ELECTRONICS GULF FZE
P.O.Box 61318, Jebel Ali, Dubai, U.A.E.
KENWOOD ELECTRONICS SINGAPORE PTE LTD.
No. 1 Genting Lane #02-02, KENWOOD Building, Singapore, 349544
KENWOOD ELECTRONICS (MALAYSIA) SDN BHD.
#4.01 Level 4, Wisma Academy Lot 4A, Jalan 19/1 46300 Petaling Jaya Selangor Darul Ehsan
Malaysia
KENWOOD ELECTRONICS (THAILAND) CO., LTD.
573/111 Soi Ramkhamhaeng 39, Ramkhamhaeng Road, Wangthonglang, Bangkapi, Bankok
10301 Thailand
Note:
Component and circuit are subject to modification to insure best
operation under differing local conditions. This manual is based on
Europe (E) standard, and provides information on regional circuit
modification through use of alternate schematic diagrams, and
information on regional component variations through use of parts
list.
Motor and turntable
Drive system..................................................... Belt-drive system
Motor .................................................................... DC servo motor
Turntable platter............................................... 29.5 cm diameter
Speeds ......................................... 2 speeds; 33-1/3 and 45 rpm.
Wow & flutter .................................... Less than 0.05 % (WRMS)
S/N (rumble) ................................................. DIN : 65 dB (DIN B)
Tonearm
Type.................................................. Integrated straight tonearm
Effective arm length........................................ 215 mm (8-7/16")
Cartridge
Type.................................................................................. MM type
Stylus................................................. N-76 with 0.6 mill diamond
Frequency response .......................................... 20 Hz to 20 kHz
Output voltage ............................... 2.5 mV (1kHz, 3.54 cm/sec.)
Equalizer amplifier
Output voltage
(RIAA EQ ON)....................... 200 mV (1kHz, 3.54 cm/sec.)
General
Power consumption ................................................................ 4 W
Dimensions ............................................. W: 400 mm (15-3/4")
H : 103 mm (4-1/16")
D : 380 mm (14-15/16")
Weight (net) .............................................................. 3.0 kg (6,6lb)
Note:
KENWOOD follows a policy of continuous advancements. For
this reason specifications may be changed without notice.
P-110 98.12.15 10:57 y[W 6

Kenwood P-110 Specifications

Motor and Turntable

drive system	Belt-drive system
motor	DC servo motor
turntable platter diameter	29.5 cm

Speeds and Performance

speeds	2 speeds; 33-1/3 and 45 rpm
wow & flutter	Less than 0.05 % (WRMS)
signal-to-noise ratio (rumble)	65 dB (DIN B)

Tonearm and Cartridge

tonearm type	Integrated straight tonearm
effective arm length	215 mm (8-7/16")
cartridge type	MM type

Cartridge Specifications

stylus	N-76 with 0.6 mill diamond
frequency response	20 Hz to 20 kHz
output voltage	2.5 mV (1kHz, 3.54 cm/sec.)

General Specifications

power consumption	4 W
dimensions	W: 400 mm (15-3/4") H : 103 mm (4-1/16") D : 380 mm (14-15/16")
weight	3.0 kg (6, 6lb)
