Kenwood RXD-790 User Manual

RXD-790/V860/V890
3

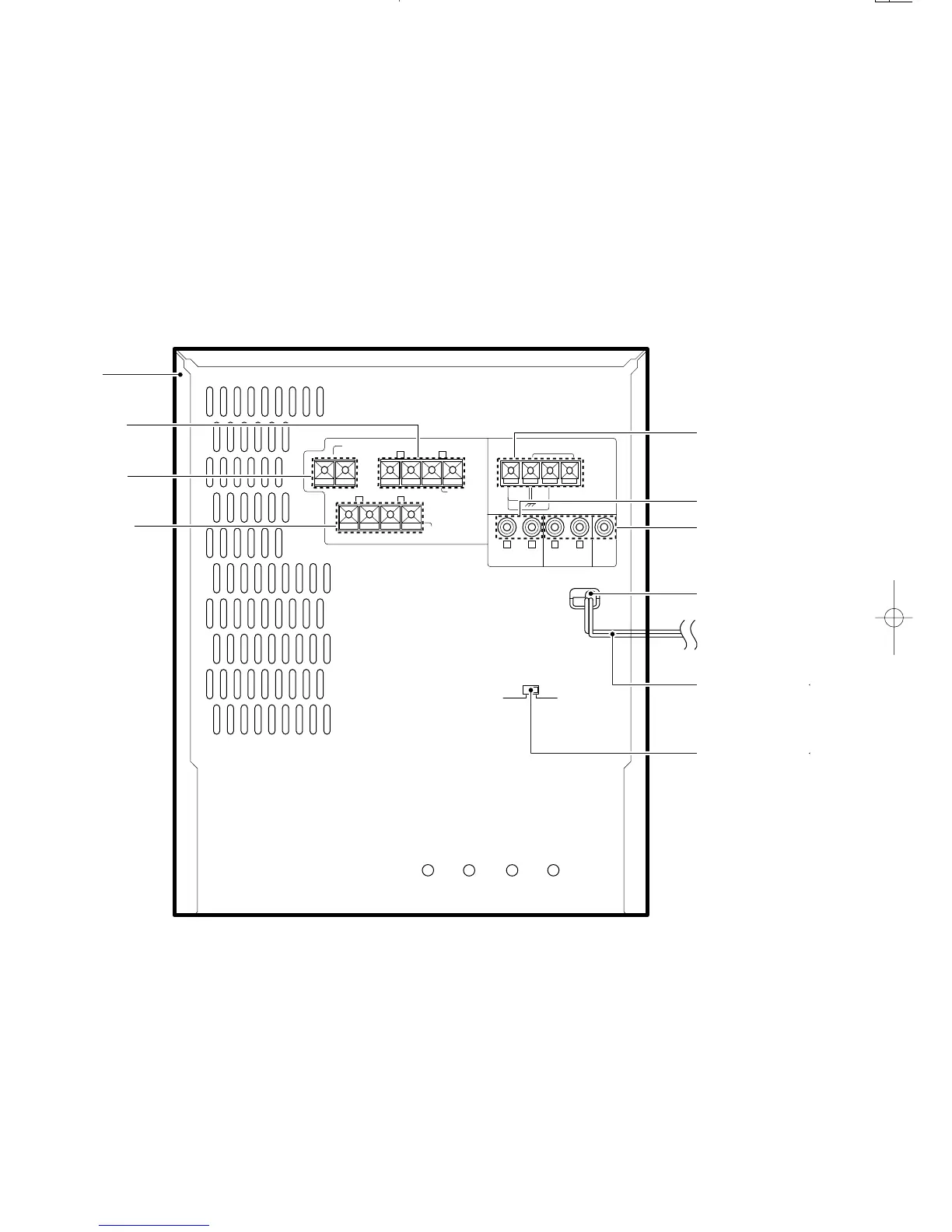

EXTERNAL VIEW
ANTENNA
AM
FM
300Ω
FM
75Ω
GND
R L
AUX
INPUT
R L
AUX
OUTPUT
SUPER
WOOFER
PRE OUT
FRONT
SPEAKERS
(6-16Ω)
SURROUND
SPEAKERS
(8-16Ω)
CENTER
SPEAKER
(8-16Ω)
+ -
AC220-
240V
~
AC110-
120V
~
R L
+ - - +
R L
+ - - +
Metallic cabinet
(A01-3532-01)
Lock terminal board
(E70-0057-05)
Lock terminal board
(E70-0054-05)
Lock terminal board *
(E70-0057-05)
Lock terminal board
(E20-0476-05)
Phono jack
(E63-1001-05)
Phono jack
(E63-0200-05)
Slide switch
(S62-0001-05)
Power cord bushing
(J42-0083-05)
AC power cord *
(E30-)
Illustration is RXD-790.
* Refer to parts list on page 62.
RXD-790/V860(k) COVER( 97.11.28 3:55 AM y[W 6
