RXD-790/V860/V890
4

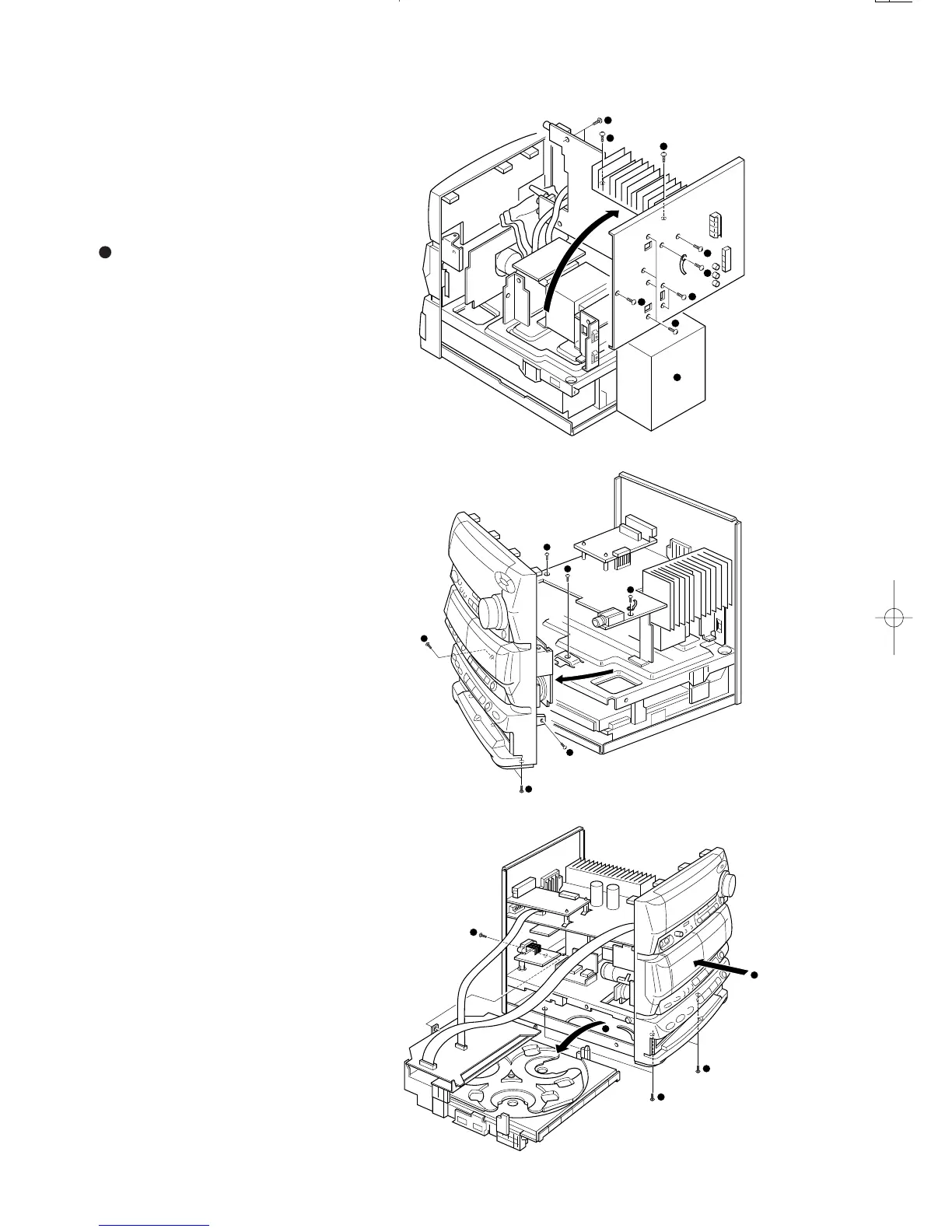

DISASSEMBLY FOR REPAIR
★ Remove main PCB's, then connect between
PCB GND and chassis with alligator clip.
1. How to remove the main PCB.
(1) Remove the 4 screws 1.
(2) Remove the 9 screws 2.
(3) Lay the rear panel with left side downward on the
small box .
2. How to remove the front panel.
(1) Remove the 3 screws 1.
(2) Remove the 5 screws 2.
★ Remove the deck mechanism only with the fixed
frame on the panel.
3. How to remove CD mechanism
(After remove the front panel)
(3) Remove the 5 screws 3, then remove CD mecha-
nism(4) with the laid set.
(4) Assemble the front panel then check (+) position.
★ Connect between video out terminal GND and unit
chassis with alligator clip.
A
1
1
1
A
2
2
2
2
2
x2
x4
x3
1
2
2
2
2
2
x2
4
5
3
x2
3
3
