TH-K2AT/K2E/K2ET
58

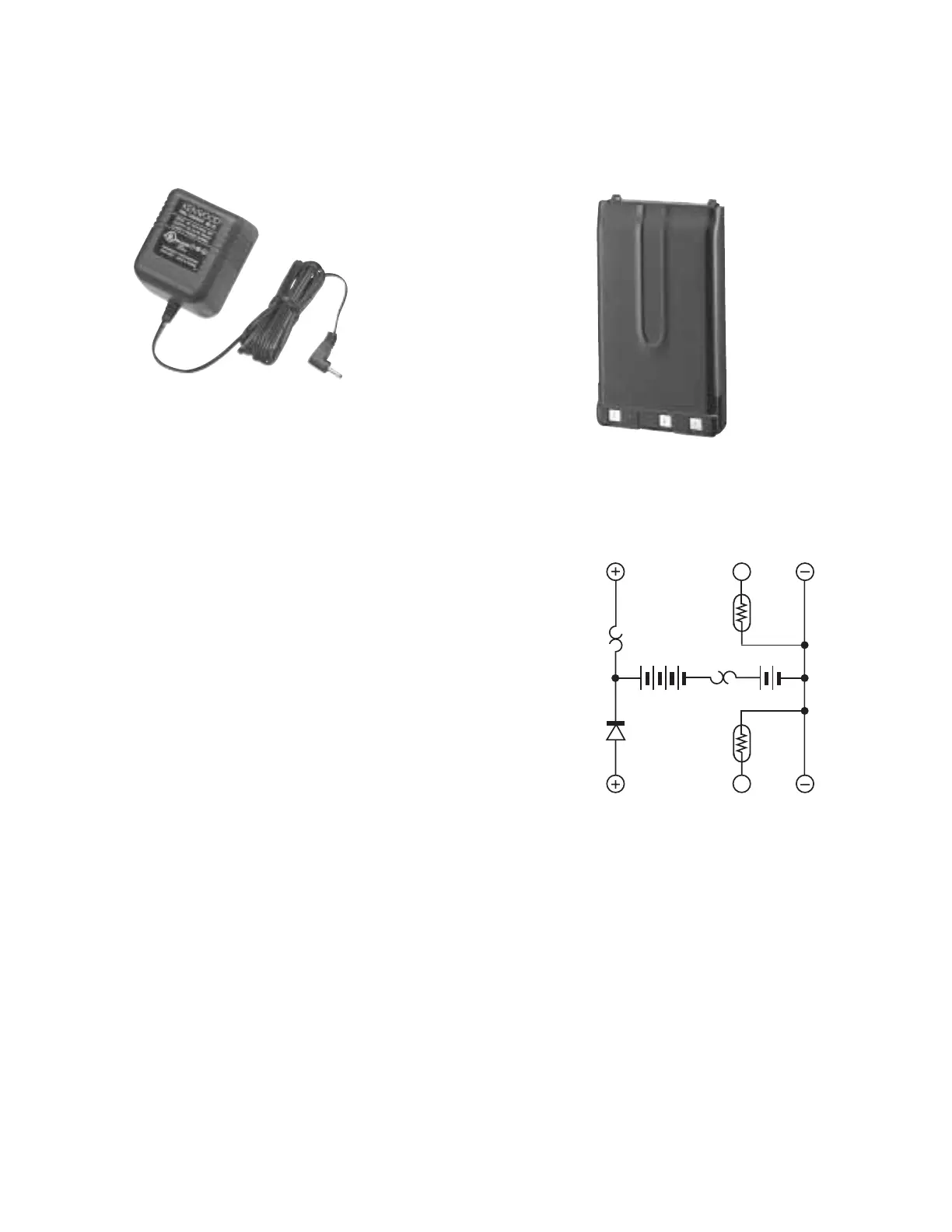

BC-21 (WALL CHARGER) / PB-43N (Ni-M H BATTERY PACK)
BC-21 External View
Rated output voltage ......... DC 13.8V ±5%
Rated output current ......... 150mA
Charging time .................... Approx. 12 hours (PB-43N)
Photo is K type.
BC-21 Specifications
PB-43N External View
PB-43N Schematic diagram
T
Discharge term inal side
Rear charge terminal side
Therm ister
(DTN-103F3H-SYS)
T
Diode
(ERB83-004)
Breaker
(BBS80A2Y-01 80˚C)
Breaker
(BBS70 A1N-01 70˚C)
(4N) (2N)
Therm ister
(DTN-103F3H-SYS)
Voltage .......................................... 7.2V (1.2V x 6)
Charging current ............................ 1100mAh
Dimensions (Projections included) ...
58W x 100.8H x 16.8D (mm)
Charger and charging time
KSC-24 (Rapid charger) ............. Approx. 60 minutes
Weight ........................................... 210g
PB-43N Specifications
