LED Wiring Configuration
When hard-wiring the LED lighting, the black lead is
+12V and the blue lead is ground.
1. Connect the black LED wire to the positive terminal
of the battery. Place a 2-amp fuse (not included) no
further than 7” away from the battery terminal. Install a
switch (not included) on the black LED wire between
the fuse and the speaker, so the LED’s can be turned
off. Without a switch to turn them off, they will always
be on.
2. Connect the blue LED wire to the negative terminal
of the battery.

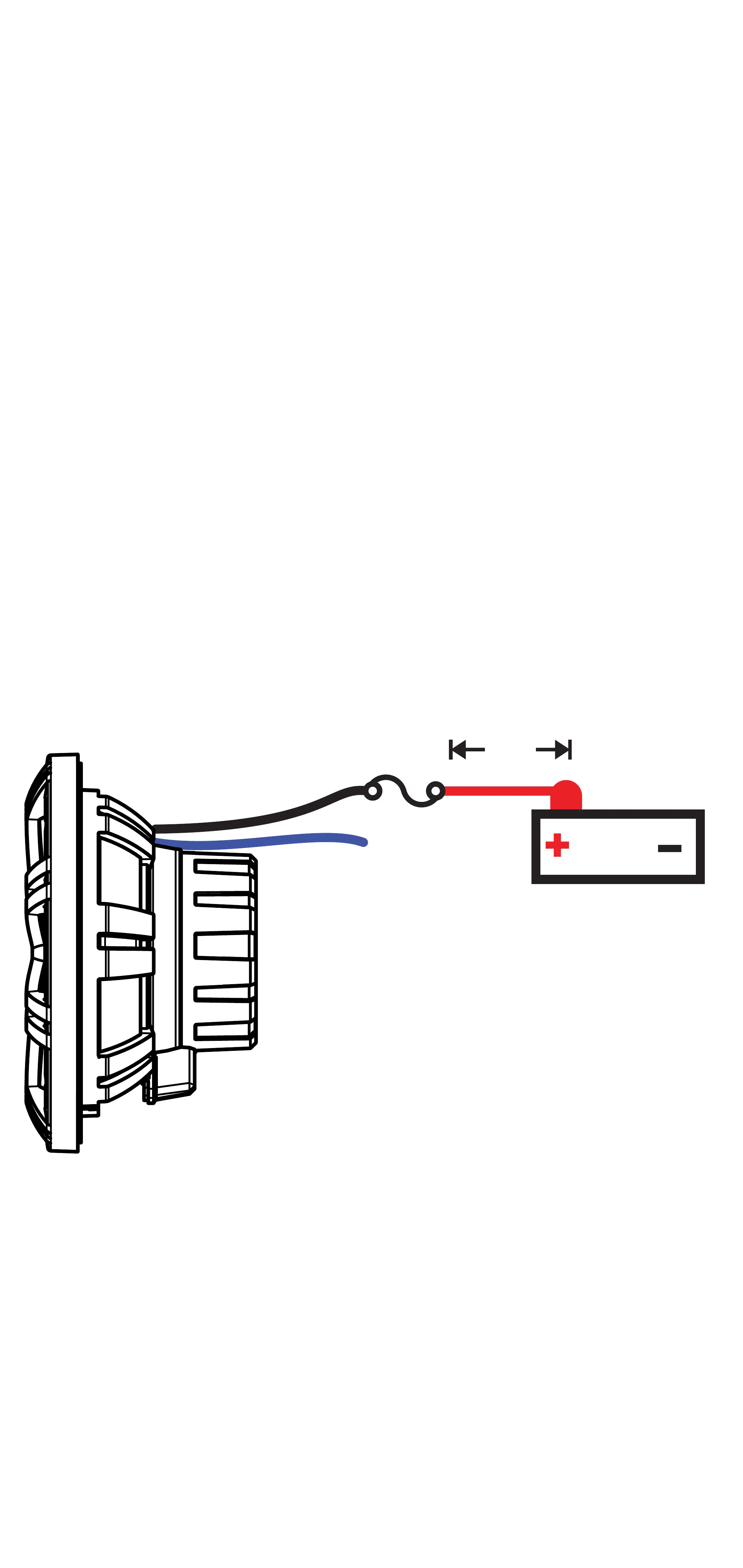

12V
Ground
+12V
2A fuse
(max)
≤7”
(17.5cm)
battery
To Next Page
