Kicker L5 User Manual

5
Solo-baric L5 Subwoofers
Installation

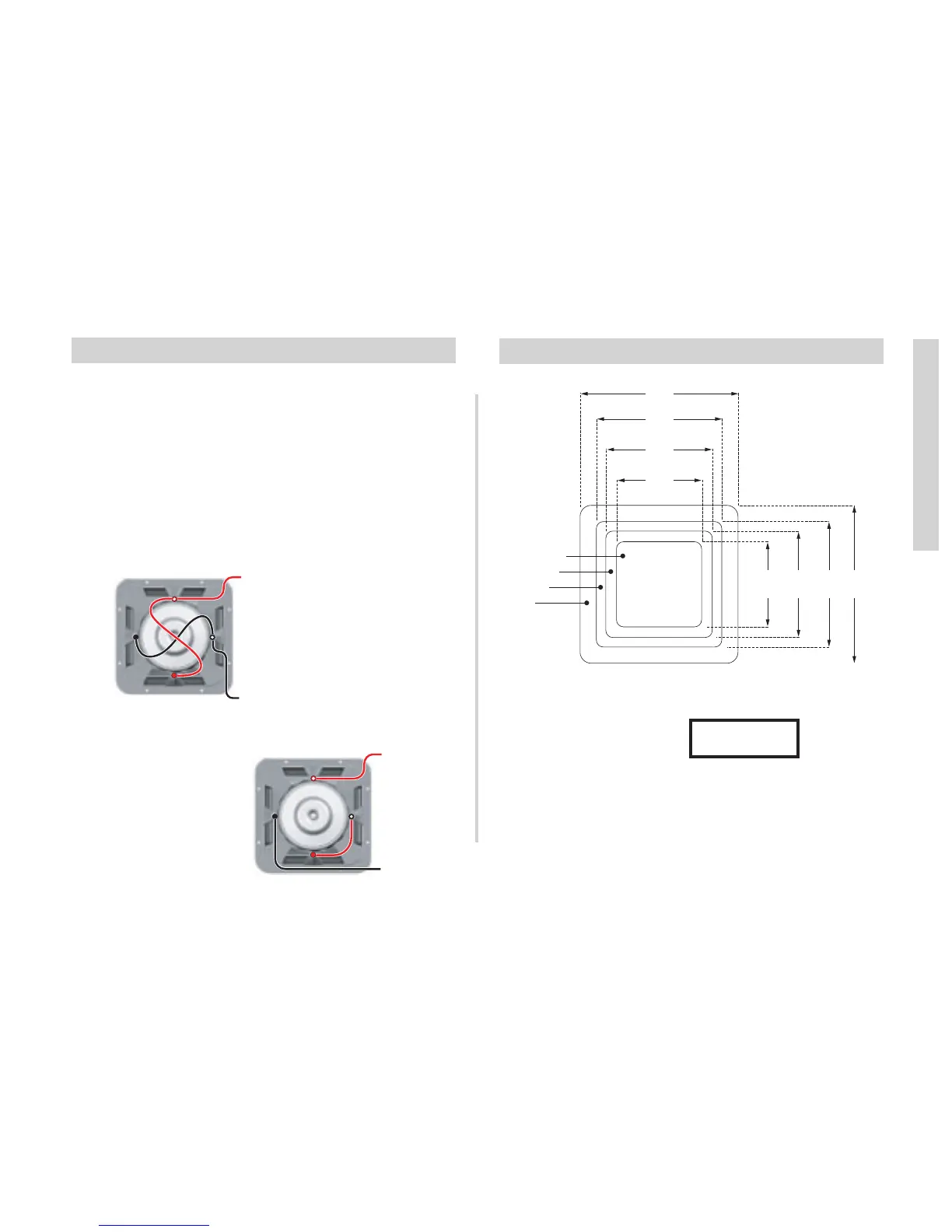

Wiring Options
Cutout Dimensions
Solo-Baric L5 subwoofers are available with dual 2 Ω (ohm) or
dual 4 Ω voice coils. Both coils must be connected to a source of
amplification.
The dual 2 Ω woofer will generate a 1 Ω load if the coils are
wired in parallel or a 4 Ω load in series. The dual 4 Ω woofer will
provide a 2 Ω load wired in parallel or 8 Ω load wired in series.
The terminals with solid red and black markings are for one
voice coil. The terminals with the white dots are for the second
voice coil.
Corner Radius:
S8L5 - 1.5”
S10L5 - 1.5”
S12L5 - 1.75”
S15L5 - 1.7”
1 in = 2.54 cm
1 in = 25.4 mm
S8L5
S10L5
S12L5
S15L5
13.75"
11"
9.25"
7.25"
7.25"
9.25" 11" 13.75"
Coil 1 +
Coil 2 +
Coil 2 -
Coil 1 -
Amplifer +
Speaker Connection
Amplifer
-
Speaker Connection
Parallel Wiring
Amplifer +
Speaker Connection
Amplifer
-
Speaker Connection
Coil 1 +
Coil 2 +
Coil 2 -
Coil 1 -
Series Wiring
Dual 2 Ω = 4 Ω Load
Dual 4 Ω = 8 Ω Load
Dual 2 Ω = 1 Ω Load
Dual 4 Ω = 2 Ω Load
Note: To get the best performance from your Solo-Baric L5
subwoofer, we recommend using genuine Kicker Accessories
and Wiring.
