OPERATING INSTRUCTIONS
1. Battery Pack

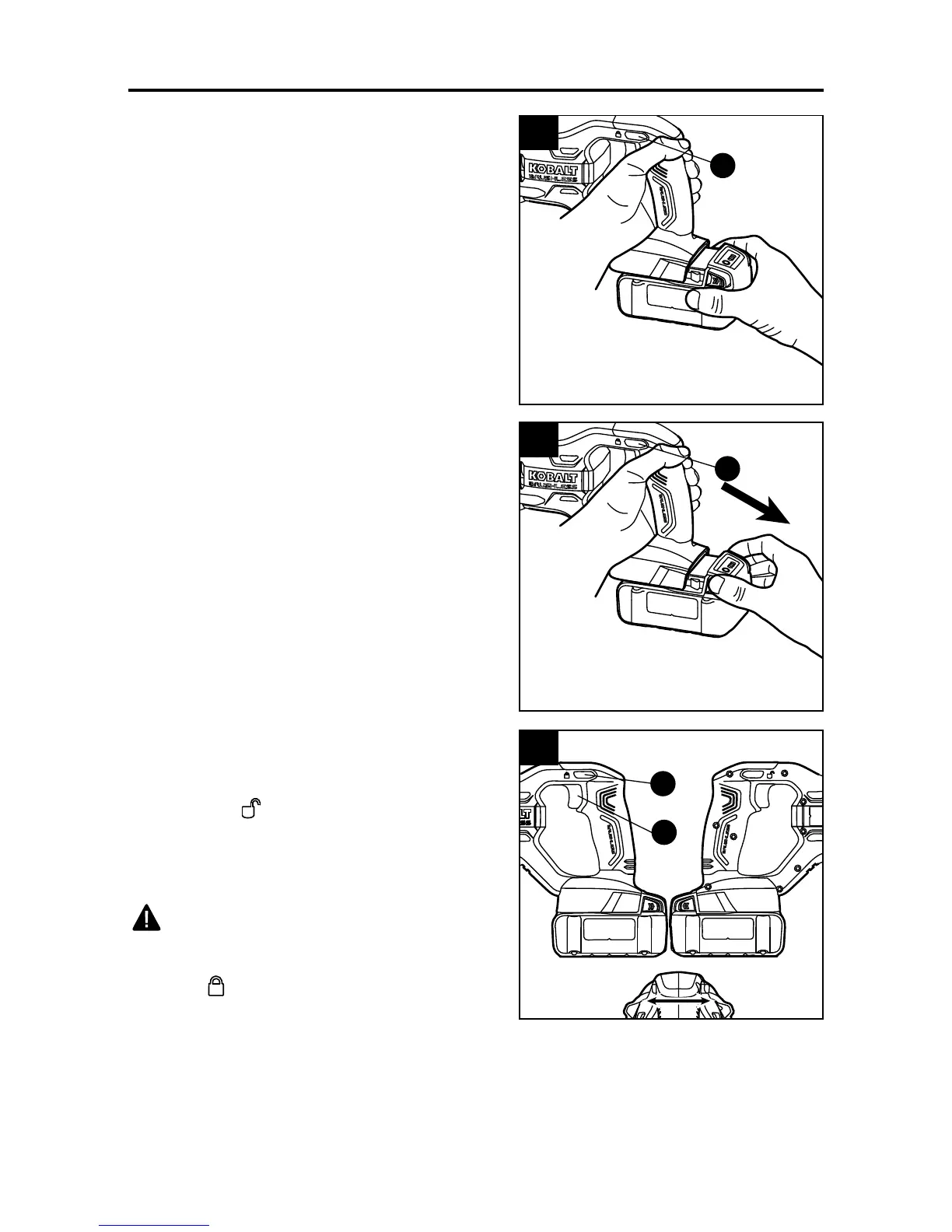

To Attach Battery Pack
a. Press the switch-lock button (F) to the lock
position.
b. Align the raised portion on the battery pack with
the grooves on the bottom of the tool and slide
the battery pack onto the saw as shown.
c. Make sure that the latches on the battery pack
snap into place and the battery pack is secured
to the tool before beginning operation.
NOTICE: When placing the battery pack on the tool,
be sure that the raised rib on battery pack aligns with
the groove on the tool and the latches snap into place
properly. Improper assembly of the battery pack can
cause damage to internal components.
To Detach Battery Pack
a. Place the switch-lock button (F) to the lock
position.
b. Press the battery-release buttons to release the
battery pack.
c. Pull forward on the battery pack to remove it
from the tool.
2. Variable-speed Trigger Switch and
Switch-Lock Button
a. To turn the saw ON, press the switch-lock button
(F) marked
to unlock the switch, then squeeze
the variable-speed trigger switch (G).
b. To turn it OFF, release the variable-speed
trigger switch.
WARNING
• Battery tools are always in operating condition.
Therefore, always press the switch-lock button
marked to lock the switch when the saw is not
in use or when carrying the saw at your side.
Variable Speed
The variable-speed trigger switch (G) delivers higher speed with increased trigger pressure and
lower speed with decreased trigger pressure.
1a
F
1b
F
2
F
G
