ASSEMBLY INSTRUCTIONS
WARNING
a product with damaged or missing parts could result in serious personal injury.
leading to possible serious personal injury.
could result in accidental starting and possible serious personal injury.
pack from the product when assembling parts.
the mower with damaged safety devices. Operation of this product with damaged or missing parts
could result in serious personal injury.
Close
Open
Close
Open
Close
Open
Close
Open

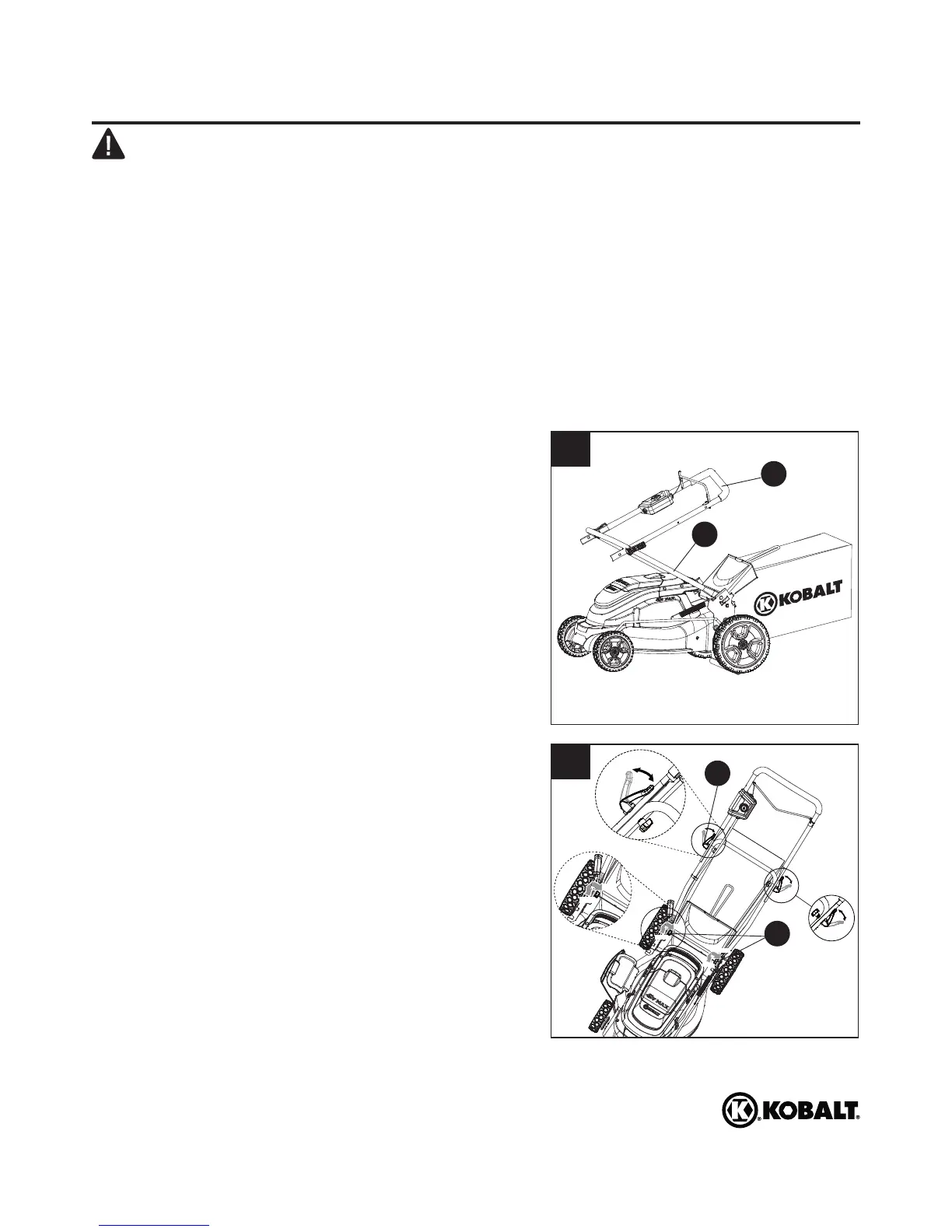

1a. Unfolding and adjusting handle
Pull up and back on the upper handle (G) to raise the
handle into operating position. Make certain the lower
handle (Q) snap into place securely.
1a
1b
G
Q
H
I
1b. Tighten the upper handle (G) with the cam
locks (H) on both sides. Tighten the lower
handle (Q) with the handle knobs (I) on both
sides. If the connection is not stiff, hand tighten
the handle knobs.
Note: Do not overtighten the handle knobs.
It could cause cam locks to break.
