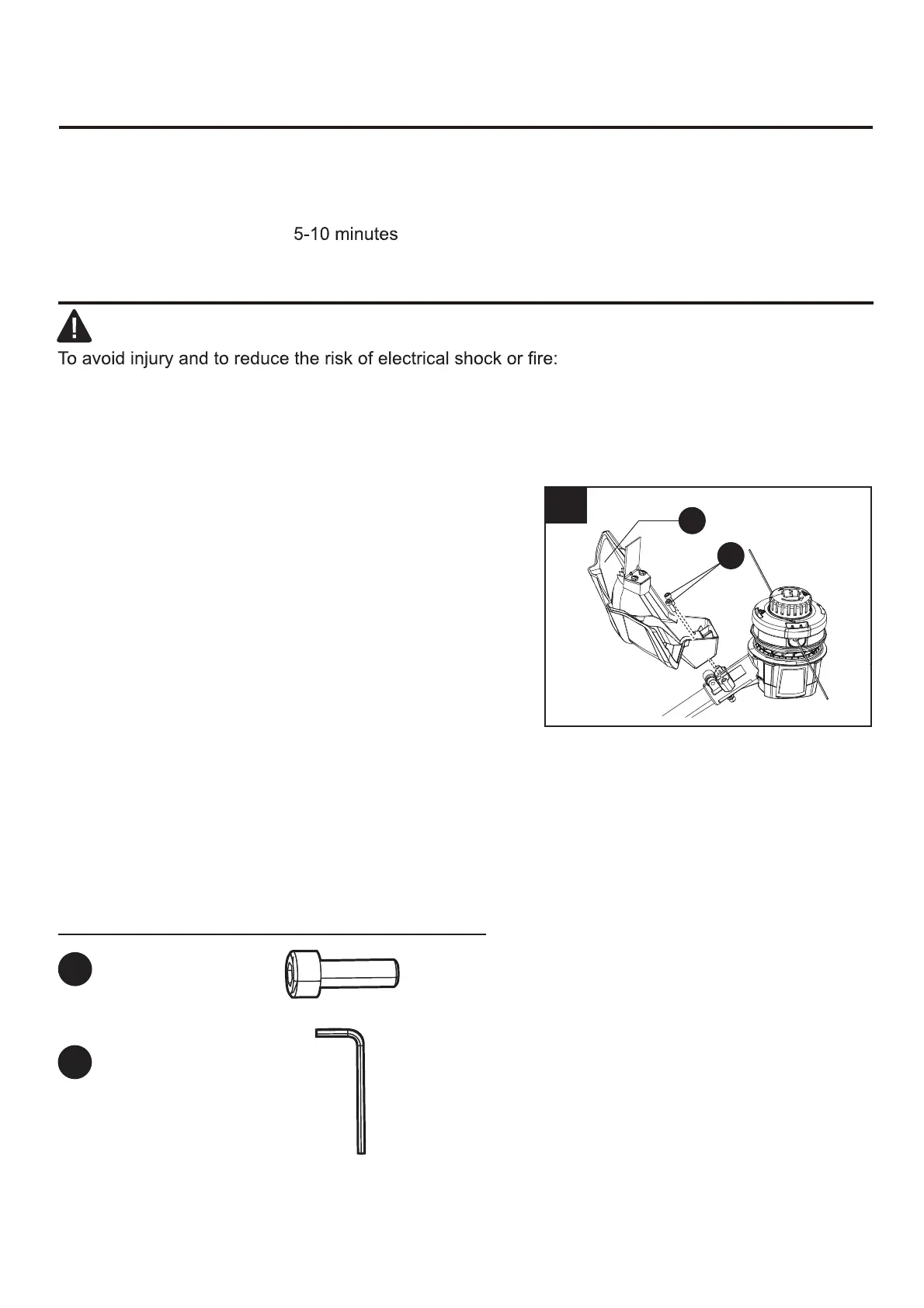

ASSEMBLY INSTRUCTIONS
• Replace the battery or charger immediately if the battery case or charger cord is damaged.
• Always make sure the string trimmer switch is OFF before inserting or removing the battery.
• Always make sure the battery is removed and the switch turned OFF before inspecting, adjusting,
or maintaining any other part of the string trimmer.
• Read, understand, and follow the Battery Charger instructions.
1. Guard
To avoid injury, always remove the battery before
installing the guard, changing a cutting line, or making
any adjustments.
If the guard is damaged, do not use the grass
trimmer/edger until it is replaced.
Note: Install the protective guard before operating
the grass trimmer/edger. It should not be removed or
disassembled.
a. Remove the battery.
b. Invert the grass trimmer/edger to access the trimmer head.
c. Using the hex wrench (DD), remove the pre-installed screws (AA) from the trimmer head.
d. Place the guard (H) onto the trimmer head.
e. Align the screw holes on the guard with the screw holes on the trimmer head.
f. Insert the screws into the trimmer head and tighten to fasten the guard in place.
1
WARNING
Hardware Used
Screw
Hex wrench
x 2
x 1
AA
DD
H
AA
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list and hardware contents list. If any part is missing or damaged, do not attempt to
assemble the product.
Estimated Assembly Time:
To Next Page
