USING THE RIP/ANGLE GUIDE (FIG. 26)
● Loosen the Rip/Angle guide adjust knob (1).
● Move the Rip/Angle guide body (2) to align
the pointer (3) to the desired angle.
● Tighten the miter guide adjust knob (1) securely
before turning on the saw.
NOTE: Please make sure the cutting wheel will
not make contact with this guide during the
cutting operation.
BASIC SAW OPERATIONS
● Overlling the water tray can lead to water entering the motor compartment and potential
electric shock.
● When lling/draining water tray, make sure wet tile saw is unplugged from wall outlet.
BEFORE USING THE TILE SAW
WARNING: To avoid mistakes that could cause serious, permanent injury, do not plug the tool
in until the following steps are completed:
● Completely assemble and adjust the tile saw, following the instructions. (SEE ASSEMBLY
AND ADJUSTMENTS SECTIONS).
● Review the entire manual and understand all safety instructions and operating procedures in
this Instructions Manual. (SEE IMPORTANT SAFETY & OPERATIONS SECTIONS).
● To avoid injury or possible death from electrical shock, make sure your ngers do not touch
the plug’s metal prongs when plugging or unplugging your tile saw. (SEE ELECTRICAL
REQUIREMENTS AND IMPORTANT SAFETY SECTIONS).
!
OPERATION INSTRUCTIONS

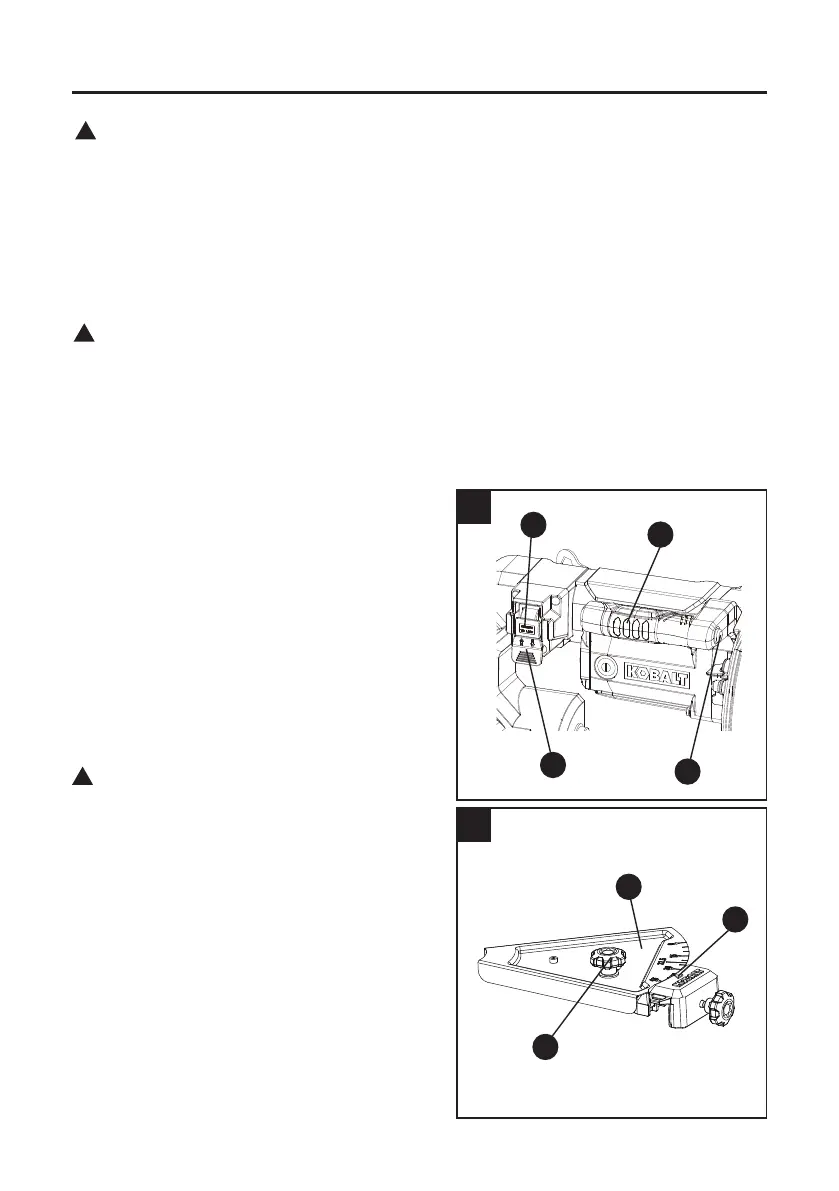

ON/OFF SWITCH (FIG. 25)
The ON/OFF switch (BB) has a removable safety
key (SS). With the key removed from the switch,
unauthorized and hazardous use by children and
others is minimized and the saw will not turn on.
●
To turn the saw “ON”, insert the safety key (SS)
into the slot of the ON/OFF switch (BB), and
move the switch upward to the “ON” position.
● To turn the saw “OFF”, move the ON/OFF
switch (BB) downward.
● To lock the switch in the OFF position, grasp the
sides of the safety key (SS), and pull it out.
● With the switch key removed, the switch will not
operate to power the saw on.
WARNING: ALWAYS lock the switch “OFF”
when the tile saw is not in use. Remove the
key and keep it in a safe place. In the event of
a power failure, blown fuse, or tripped circuit
breaker, turn the switch “OFF” and remove the
key, preventing an accidental startup when
power comes on.
LED LIGHT ON/OFF SWITCH (FIG. 25)
Turn the LED light on and o by pressing the LED light ON/OFF switch (EE) located on the side of
the motor handle (Q).
NOTE: The saw must be plugged in for the LED light to operate.
WARNING
!
26
25
EE
1
2
3
BB
SS
Q
!
