13
J
L
22
kobalttools.com
OPERATING INSTRUCTIONS

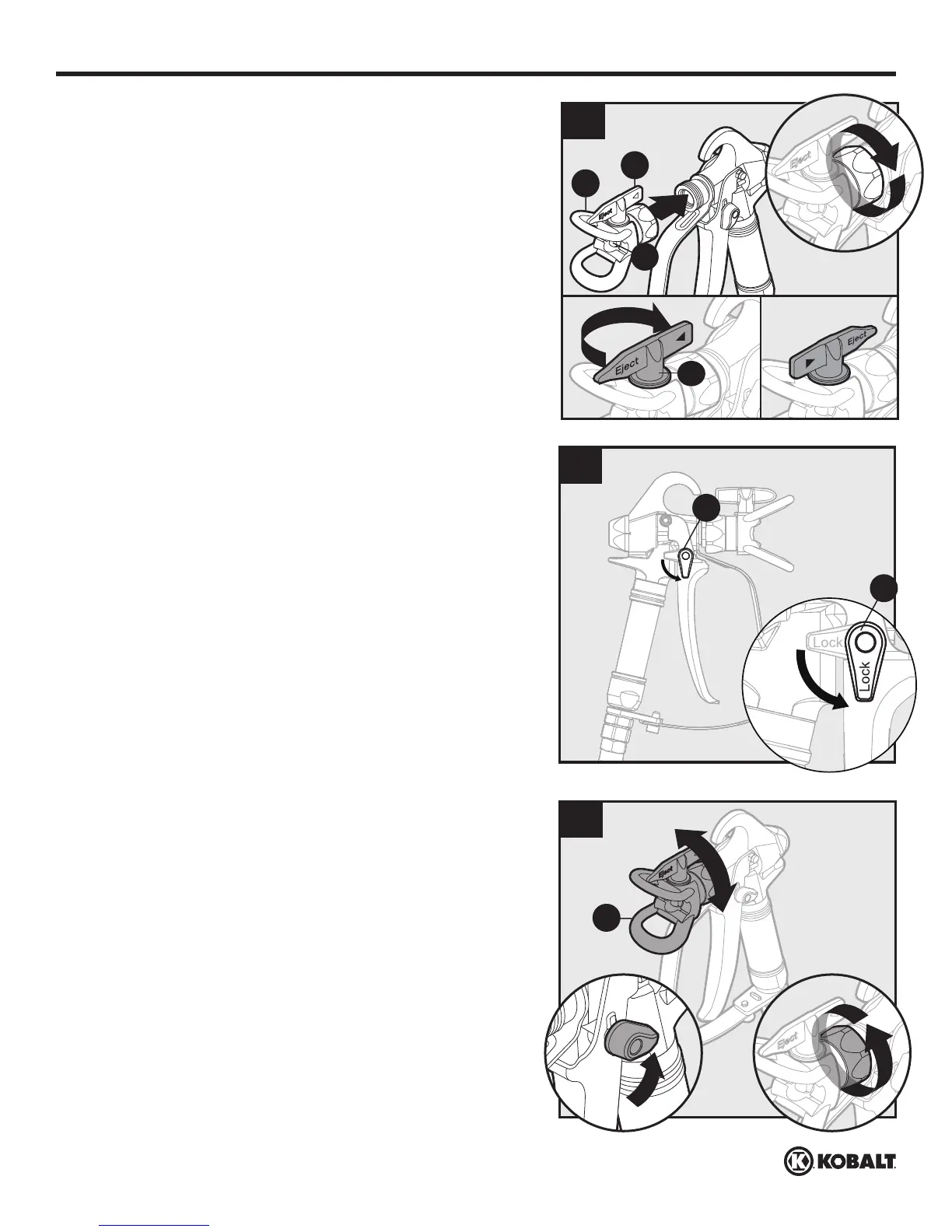

13. Reconnect spray guard (J), spray tip (L) and single seal
tip (M) making sure connection is properly secured.
Adjust the spray tip (L) so the arrow on tip housing is
backwards, and unlock the safety lock (S).
Continue
spraying into waste pail 5-10 seconds to make sure the
hole in the tip is not jammed.
L
14. Adjust the spray tip (L) so the arrow on the housing is
facing forward. The sprayer is now primed and ready
for use.
Lock
Lock
S
Counterclockwise
14
Counterclockwise
S
M
Adjusting Spray Pattern Vertical Or
Horizontal Spray
1. To adjust spray angle, set safety lock to locked
position. Loosen nut on spray guard (J). Turn
3
3
2
1
1
J
spray guard to vertical or horizontal position.
Position spray tip at the top of the housing for
horizontal pattern. Turn housing 90° so that
spray tip is positioned along the side for
vertical pattern.
To Next Page
