Kodak Instamatic M Series User Manual

37/KODAK M-SERIES PROJECTORS

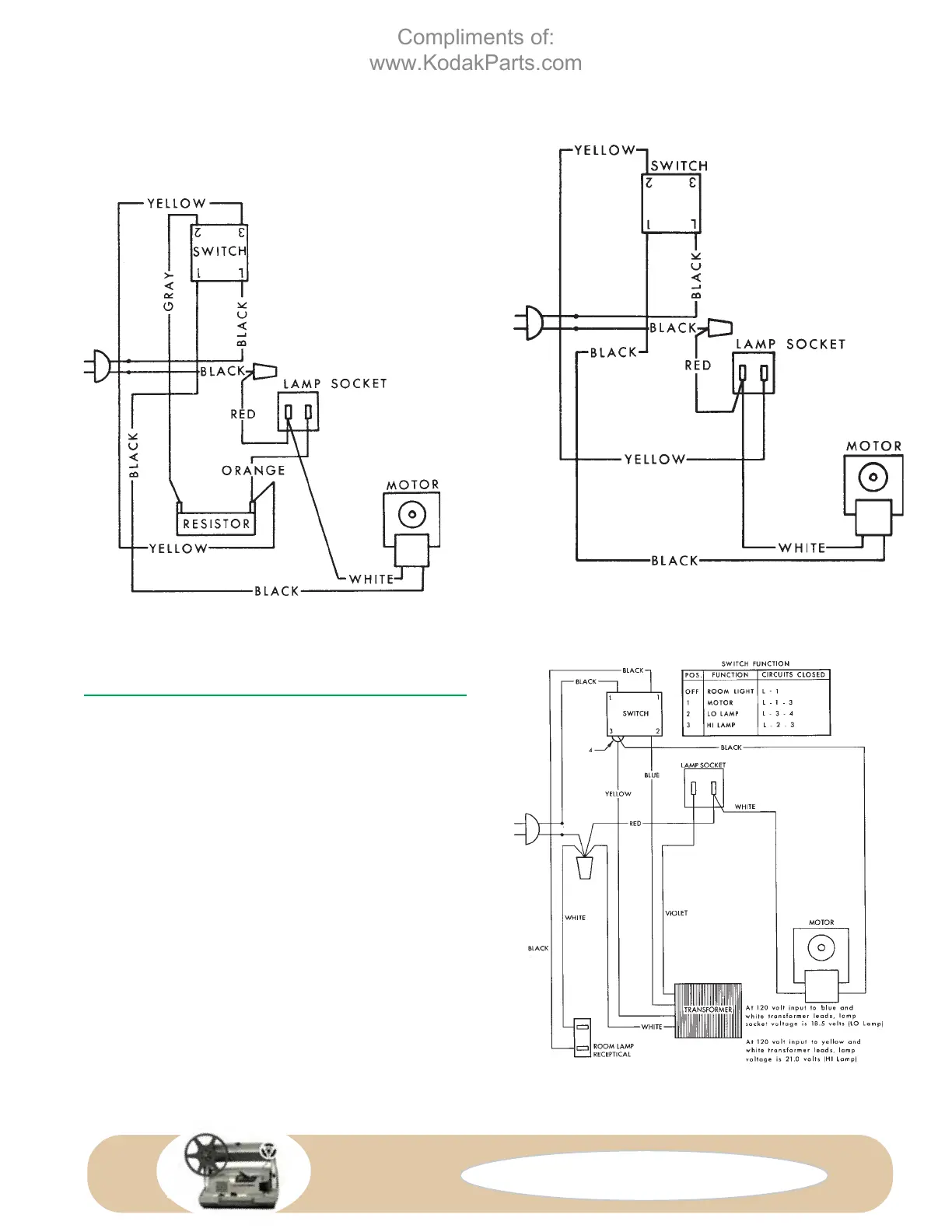

WIRING PICTORIALS
M80
M85
M95
Likely cause 2: Connection between motor white wire and
lamp socket.
Solution: Check, clean, and improve the connection.
Other possible causes include a defective switch or a
defective motor. However, these causes are unlikely.
LUBRICATION SUMMARY
Grease lubrication:
-up-and-down cams on the shutter-drive shaft
-surfaces of claw levers that ride against in-and-out cam
followers
-front surface of in-and-out cam
Oil lubrication:
-ball bearings on claw assembly
-shutter drive shaft (where the shutter-drive shaft passes
through the bearings)
-cam shaft (where the cam shaft passes through the bearings)
Compliments of:
www.KodakParts.com
