TP-7044 6/23 63

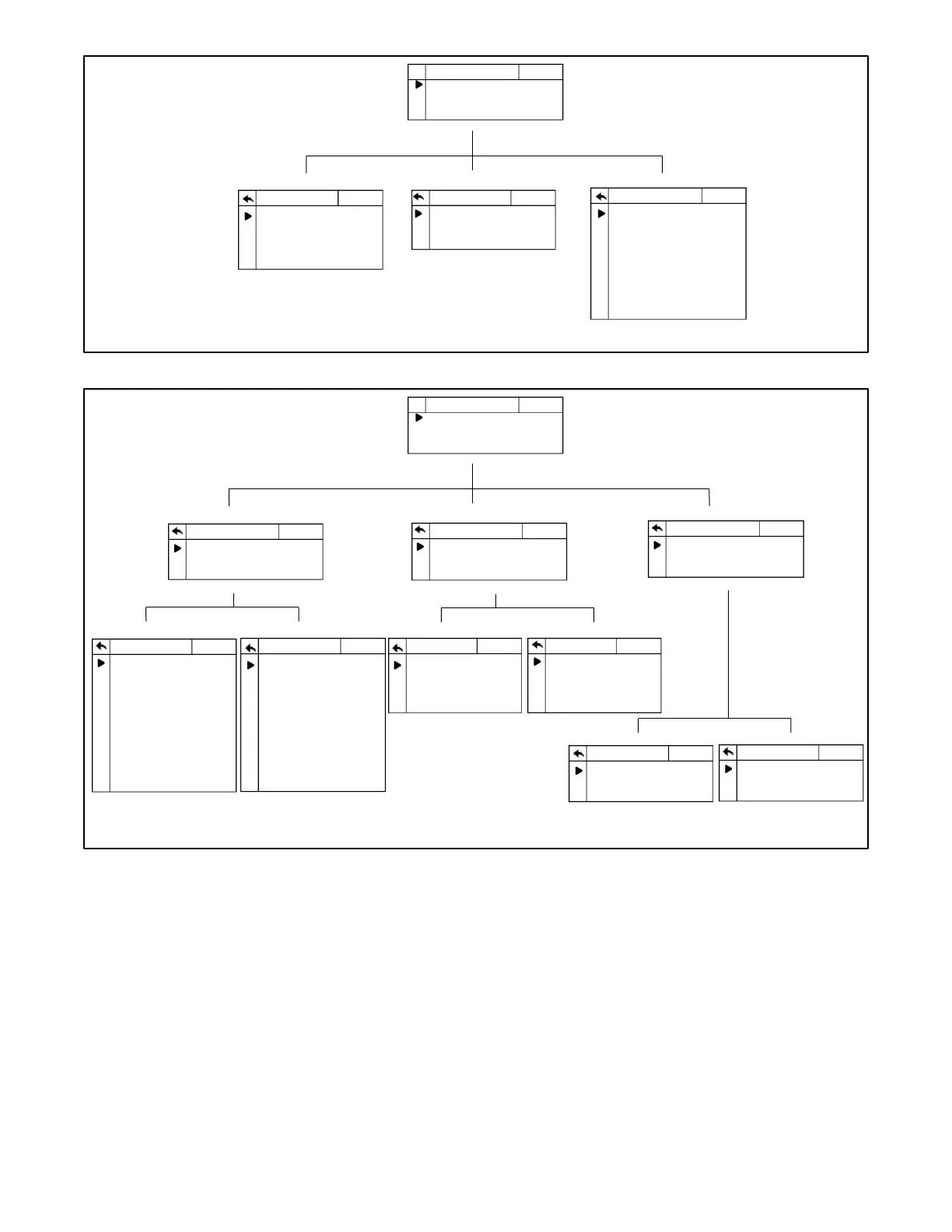

Figure 26 Controller Configuration Menu
Figure 27 I/O Menu
CONTROLLER CONFIG
12:00 AM
12/12/12
CONFIGURATION
COMMUNICATION SETUP
CALIBRATION
CONTROL CONFIG
12:00 AM
12/12/12
LANGUAGE: {LANGUAGE}*
UNITS: {UNITS}*
TIME FORMAT: {TIME FORMAT}*
DATE FORMAT: {DATE FORMAT}*
DATE: ##/##/####*
TIME: ##:## XM*
CONTRAST: ###*
ALARM SILENCE: {ALARM}*
DIAL PUSH
DIAL TURN
DIAL PUSH
COMM SETUP
12:00 AM
12/12/12
MODBUS BAUD RATE: {M RATE}*
MODBUS ADDRESS: ##*
PGEN BAUD RATE: {P RATE}
PGEN NODE ID: ##
PGEN NODES ONLINE: ##
PGEN NODES OFFLINE: ##
CALIBRATION
12:00 AM
12/12/12
GEN L1-L0 VOLTS: ###.#V*
GEN L2-L0 VOLTS: ###.#V*
GEN L3-L0 VOLTS: ###.#V*
GEN L1-L2 VOLTS: ###.#V*
GEN L2-L3 VOLTS: ###.#V*
GEN L3-L1 VOLTS: ###.#V*
GEN L1 CURRENT: ###.#A*
GEN L2 CURRENT: ###.#A*
GEN L3 CURRENT: ###.#A*
BUS L1-L2 VOLTS: ###.#V*
BUS L2-L3 VOLTS: ###.#V*
BUS L3-L1 VOLTS: ###.#V*
RESET GEN VOLT METER: YES/NO*
RESET GEN AMP METER: YES/NO*
RESET BUS VOLT METER: YES/NO*
RESET ALL METERS: YES/NO*
DIAL PUSH
LANGUAGE:
ENGLISH
UNITS:
METRIC
ENGLISH
TIME FORMAT:
12hr
24hr
DATE FORMAT:
mm/dd/yyyy
dd/mm/yyyy
ALARM:
ALWAYS
AUTO ONLY
I/O
12:00 AM
12/12/12
RESISTIVE INPUT SETUP
DIGITAL INPUT SETUP
DIGITAL OUTPUT SETUP
RESISTIVE INPUT SETUP
12:00 AM
12/12/12
Analog Input 0:1
Analog Input 0:2
:
Analog Input X:X
DIAL PUSH
DIAL TURN
DIAL PUSH
DIGITAL INPUT SETUP
12:00 AM
12/12/12
Digital Input 0:1
Digital Input 0:2
:
Digital Input X:X
DIGITAL OUTPUT SETUP
12:00 AM
12/12/12
Digital Output 0:1
Digital Output 0:2
:
Digital Output X:X
DIAL PUSH
DIAL TURN
DIAL PUSH
DIAL PUSH
RESISTIVE INPUT 0:1
12:00 AM
12/12/12
DESCRIPTION: {MODE}
MEASUREMENT: ###.#Ohms
EVENT: NONE?*
INPUT ENABLED: ON/OFF*
SENSOR TYPE: {SENSOR}*
LOW PROTECTIVE INHIBIT: ##s*
LOW WARNING: ON/OFF*
LOW WARNING LIMIT: *
LOW WARNING DELAY: ##s*
LOW SHUTDOWN: ON/OFF*
LOW SHUTDOWN LIMIT: *
LOW SHUTDOWN DELAY: ##s*
HIGH PROTECTIVE INHIBIT: ##s*
HIGH WARNING: ON/OFF*
HIGH WARNING LIMIT: *
HIGH WARNING DELAY: ##s*
HIGH SHUTDOWN: ON/OFF*
HIGH SHUTDOWN LIMIT: *
HIGH SHUTDOWN DELAY: ##s*
RESISTIVE INPUT X:X
12:00 AM
12/12/12
DESCRIPTION: {MODE}
MEASUREMENT: ###.#Ohms
EVENT: NONE?*
INPUT ENABLED: ON/OFF*
SENSOR TYPE: {SENSOR}*
LOW PROTECTIVE INHIBIT: ##s*
LOW WARNING: ON/OFF*
LOW WARNING LIMIT: *
LOW WARNING DELAY: ##s*
LOW SHUTDOWN: ON/OFF*
LOW SHUTDOWN LIMIT: *
LOW SHUTDOWN DELAY: ##s*
HIGH PROTECTIVE INHIBIT: ##s*
HIGH WARNING: ON/OFF*
HIGH WARNING LIMIT: *
HIGH WARNING DELAY: ##s*
HIGH SHUTDOWN: ON/OFF*
HIGH SHUTDOWN LIMIT: *
HIGH SHUTDOWN DELAY: ##s*
DIGITAL INPUT 0:1
12:00 AM
12/12/12
DESCRIPTION: {MODE}
STATUS: ACTIVE/INACTIVE
FUNCTION: {FUNCTION}*
EVENT: *
LOGIC: ACTIVE ON/ACTIVE OFF*
ENABLED: ON/OFF*
INHIBIT TIME: ##s*
DELAY TIME: ##s*
DIGITAL INPUT X:X
12:00 AM
12/12/12
DESCRIPTION: {MODE}
STATUS: ACTIVE/INACTIVE
FUNCTION: {FUNCTION}*
EVENT: *
LOGIC: ACTIVE ON/ACTIVE OFF*
ENABLED: ON/OFF*
INHIBIT TIME: ##s*
DELAY TIME: ##s*
DIGITAL OUTPUT 0:1
12:00 AM
12/12/12
DESCRIPTION: {MODE}
STATUS: ACTIVE/INACTIVE
FUNCTION: {FUNCTION}*
EVENT: *
LOGIC: ACTIVE ON/ACTIVE OFF* *
DIGITAL OUTPUT X:X
12:00 AM
12/12/12
DESCRIPTION: {MODE}
STATUS: ACTIVE/INACTIVE
FUNCTION: {FUNCTION}*
EVENT: *
LOGIC: ACTIVE ON/ACTIVE OFF*
DIAL TURN
DIAL PUSH
DIAL PUSH
DIAL TURN
DIAL PUSH
DIAL PUSH
