TP-6810 7/16 13Section 1 Service Views
Section 1 Service Views
1. Nameplate location
2. Engine ECM and EPR (electronic fuel pressure regulator)
3. Oil check (dipstick)
4. See cooling system detail
5. Exhaust outlet
6. Enclosure locking tool (shipping location only)
7. Spark plugs
8. Block heater connection valve
9. Block heater (optional)
10. Fuel inlet (1 in. NPT)
11. Fuel solenoid valves (qty. 2 shown)
12. Customer load lead access
13. Customer connection access panel
14. Line circuit breaker
15. Generator set master control buttons (on RDC2 controller)
16. RDC2 controller
17. Cooling air inlet (remove this panel to access coolant drain)
18. Access to coolant fill
19. Oil fill location (on valve cover)
20. Air cleaner
21. Fan fuses
22. Battery
23. Oil drain valve
24. Lube oil filter
25. Block heater connection valve
26. Coolant drain
27. Fans (qty. 3)
28. Radiator
29. Pressure cap (engine coolant fill)
30. Coolant overflow tube
31. Coolant overflow bottle
ADV-8494
23
14
16
20
15
28
11
10
7
17
1
24
12
13
42 3
19
22
GM85088
Cooling System Detail
27
27
30
29
26
31
7
5
21
8
25
9
18
6
SERVICE SIDE
NON-SERVICE SIDE

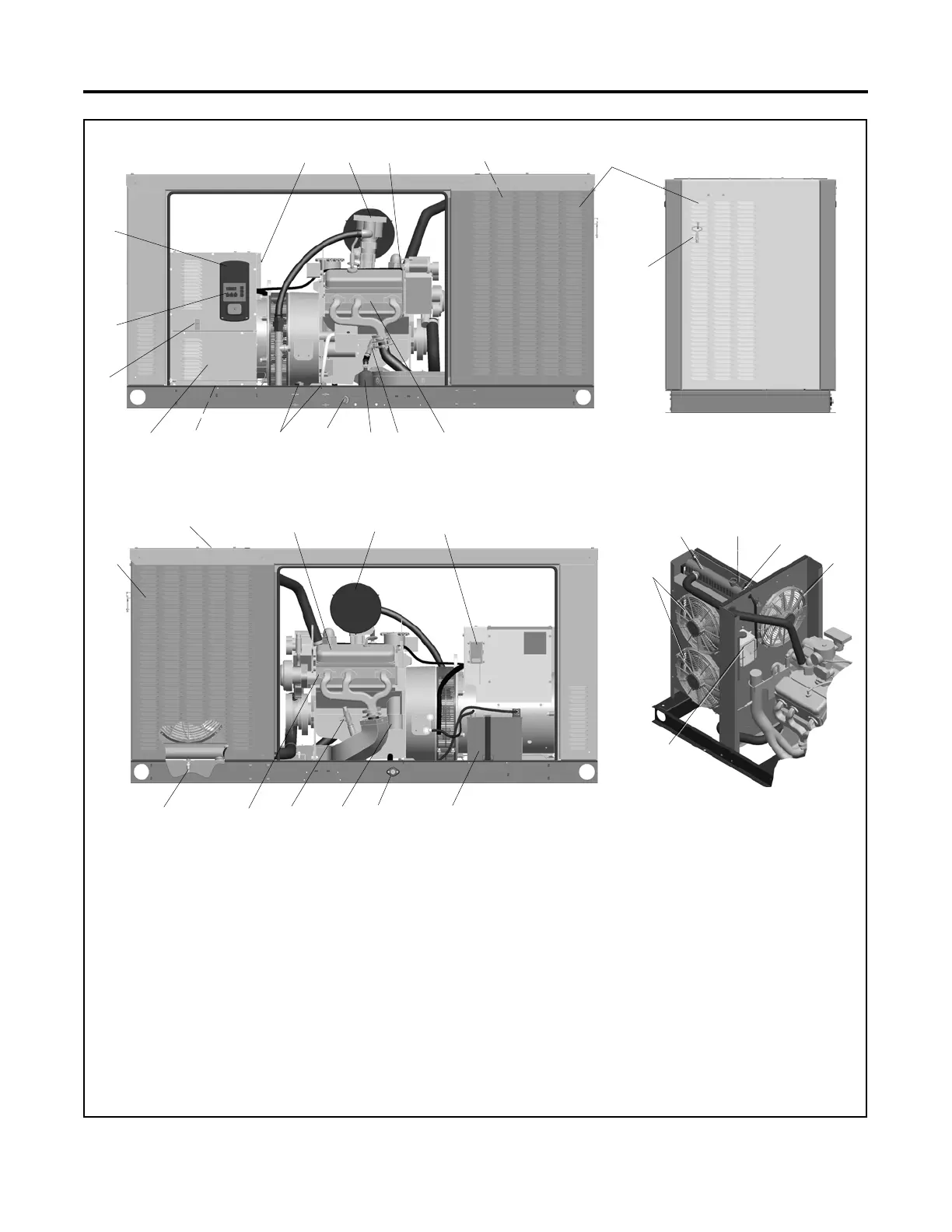

Figure 1-1 Service Views, 38RCL, 48RCL (38RCL shown)
