TP-6811 7/1614 Section 1 Specifications
1.7 Service Views
1. Nameplate location
2. Engine fuses
3. Oil check (dipstick)
4. Engine ECM and EPR (electronic fuel pressure regulator)
5. See c ooling system detail
6. Exhaust outlet
7. Enclosure locking key (shipping location only)
8. Spark plugs
9. Block heater connection valve
10. Block heater (optional)
11. Fuel inlet (1 in. NPT)
12. Fuel solenoid valves (two required for UL 2200)
13. Customer load lead access
14. Customer connection access panel
15. Line circuit breaker
16. Generator set master control buttons (on RDC2 controller)
17. RDC2 controller
18. Cooling air inlet (remove this panel to access coolant drain)
19. Access to coolant fill
20. Oil fill (on valve cover)
21. Air cleaner
22. Fan fuses
23. Battery
24. Oil drain valve
25. Lube oil filter
26. Block heater connection valve
27. Coolant drain
28. Radiator
29. Pressure cap (engine coolant fill)
30. Coolant overflow tube
31. Engine compartment temperature sensor
32. Fans (qty. 3)
33. Coolant overflow bottle
ADV-8494
24
15
17
21
16
28
12
11
3
8
18
1
25
13
14
542
20
23
GM83070
Cooling System Detail
32
32
30
29
27
33
8
6
22
9
26
10
19
7
31

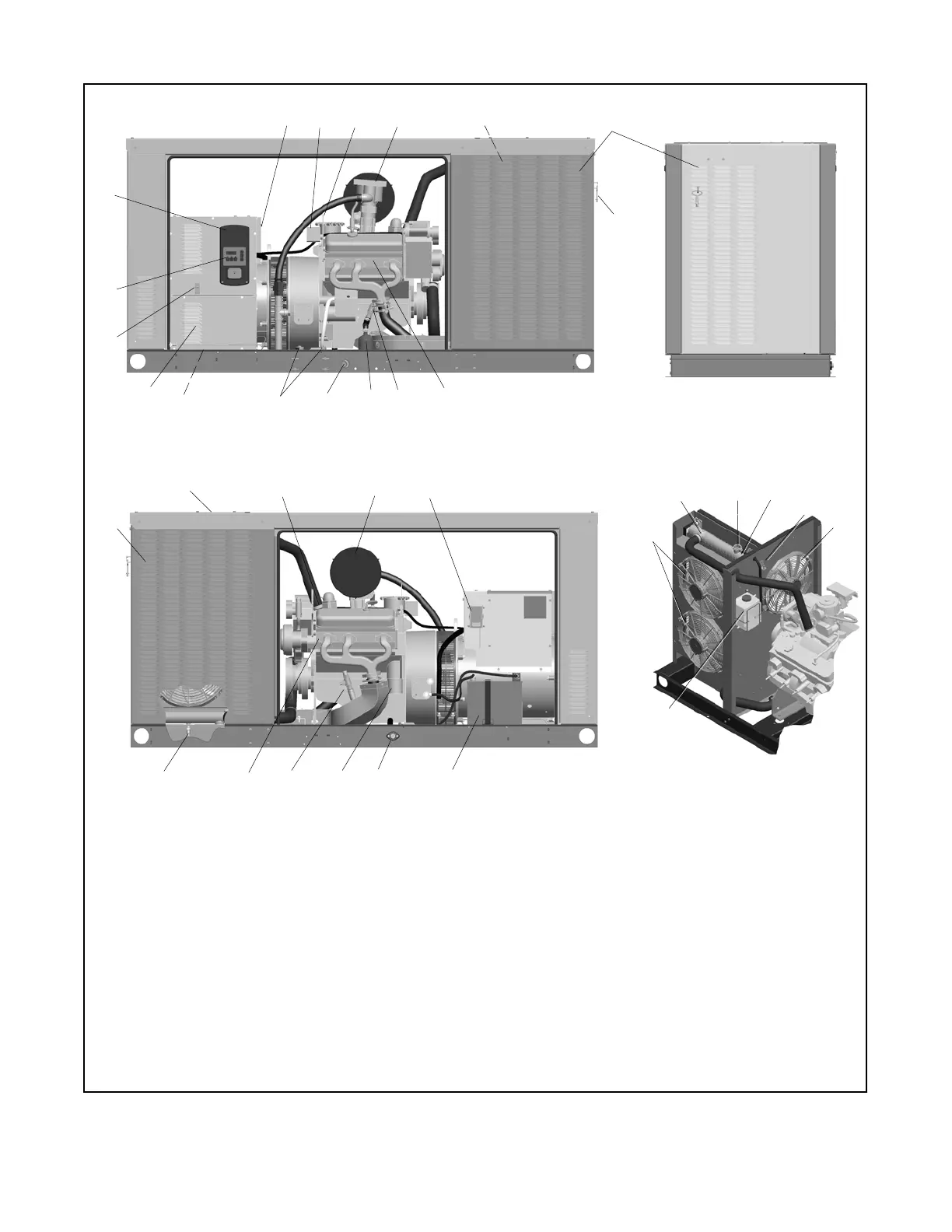

Figure 1-1 Service Views, Model 38RCL
