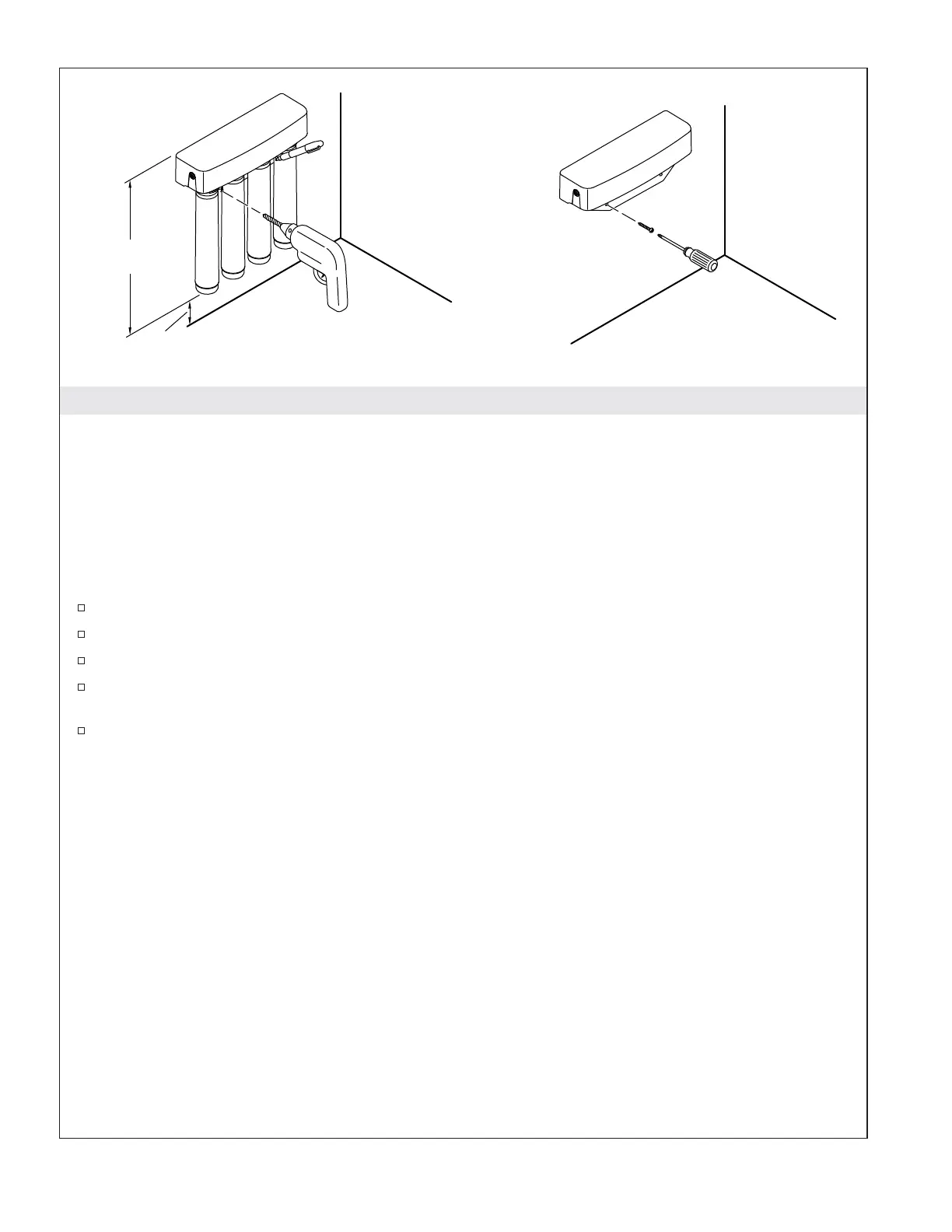

5. Mount the Filtration System
IMPORTANT! This unit is designed for vertical installation.
IMPORTANT! The mounting location of the water filtration system is critical. Verify that the bottom of
the filter cartridge will be at least 2″ (51 mm) from the floor of the cabinet. Ensure that the system will not
interfere with other items and will be easily accessible. Make sure that the tubing will not be under
tension when installed.
IMPORTANT! Only connect water from the supply line to the filter head inlet. Only connect water from
the filter head outlet to the tank and faucet. System performance and filter cartridge capacity will be
compromised if connected incorrectly. ″INLET,″″TANK,″ and ″FAUCET″ are molded into the filter head.
Align the mounting holes of the filter head at the determined mounting location.
Mark the mounting-hole locations with a permanent marker. Set the filter head aside.
Predrill the mounting holes.
Partially thread the fasteners (provided) into the cabinet wall, and slide the filter head over the
fasteners.
Secure the filter head in position by tightening the fasteners.
16"
(406 mm)
2"
(51 mm) Min
1395432-2-B 8 Kohler Co.
