-3-
Kohler reserves the right to change marked dimensions without prior notice.

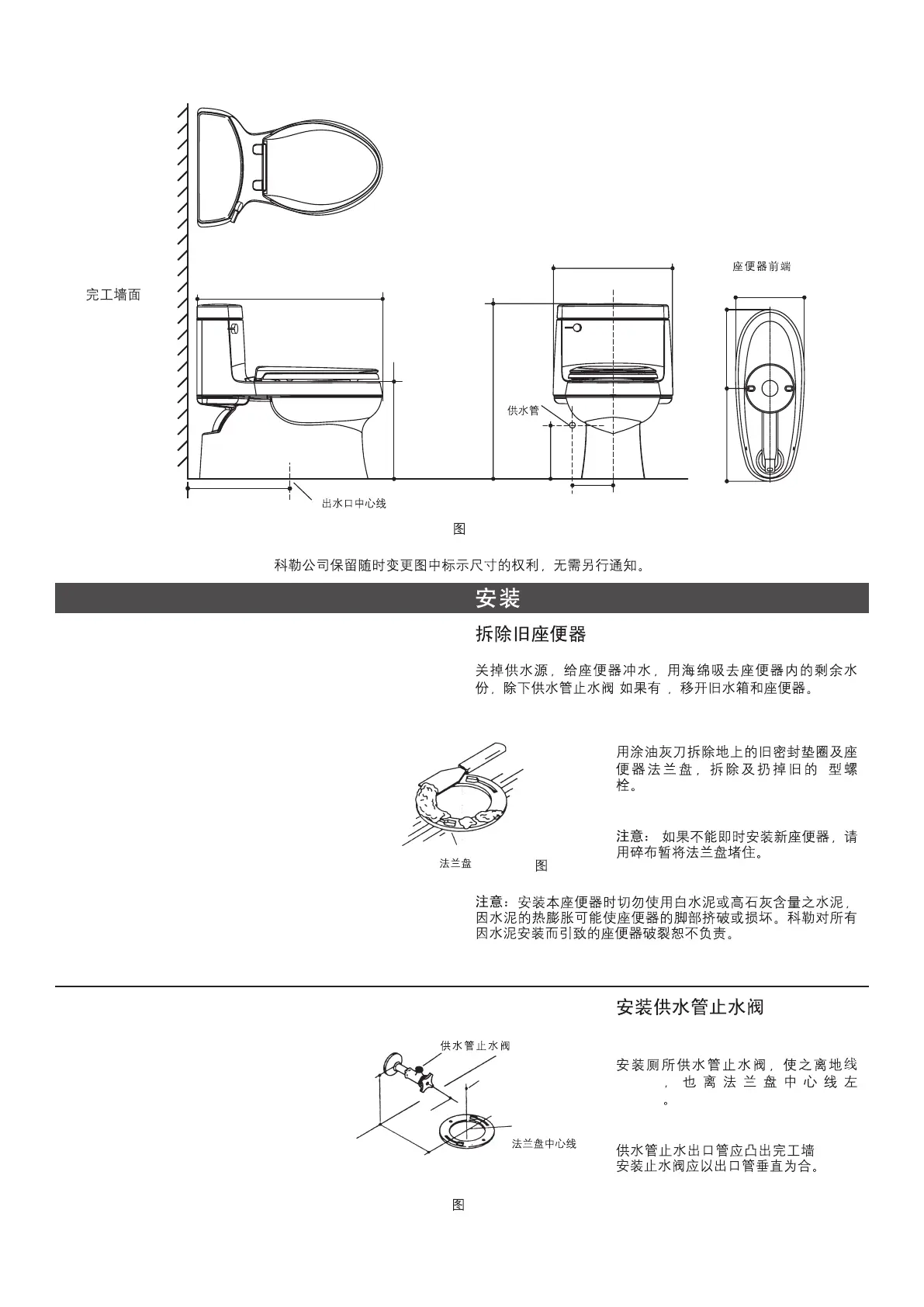

K-6076T-TFC
400
312
368
270
127
152
709
480
FRONT OF BOWL
SUPPLY
Finished Wall
390
744
C OF OUTLET
L
TO REMOVE EXISTING TOILET
Turn off the water supply. Flush the toilet, and use a sponge
to remove the remaining water from the tank and bowl.
Disconnect the supply shut-off valve (if present), and remove
the old tank and bowl.
()
INSTALLATION
Fig.#2
2
Fig.#1
1
Remove the old gasket from the floor
and the closet flange with a putty knife.
Remove the old T-bolts and discard
them.
if the new toilet is not
installed immediately, temporarily stuff
a rag into the closet flange.
NOTICE:
T
NOTICE: Do not use white cement or high lime content
cements to install this toilet. The expansion of cement due to
a rise in temperature may make the toilet crack or cause
damage. Kohler is not responsible for any damage caused by
installation with the use of cement.
Closet Flange
mm
67mm;
127mm
152
Fig.#3
3
TO INSTALL SUPPLY
SHUT-OFF VALVE
Install the supply shut-off valve so it is
127mm above the finished floor line,
and 152mm to the left of the closet
flange centerline.
The centerline of the supply shut-off
valve outlet should extend 67mm from
the finished wall. Install the supply
shut-off valve with the outlet vertical.
Supply Shut-Off Valve
Closet Flange
Centerline
152
305/400
127
1278411-T01-B
To Next Page
