3. connect leads to solenoid.
Install Fuel Pump
WARNING
Explosive Fuel can cause fi res and severe
burns.
Do not fi ll fuel tank while engine is hot or
running.
Gasoline is extremely fl ammable and its vapors can
explode if ignited. Store gasoline only in approved
containers, in well ventilated, unoccupied buildings,
away from sparks or fl ames. Spilled fuel could ignite if
it comes in contact with hot parts or sparks from
ignition. Never use gasoline as a cleaning agent.
NOTE: If a new fuel pump is being installed, make sure
orientation of new pump is consistent with
removed pump. Internal damage may occur if
installed incorrectly.
1. Install pulse style fuel pump and lines as an
assembly. Connect pulse line to crankcase vacuum
fi tting.
2. Install fuel pump using screws. Torque screws to
2.3 N·m (20 in. lb.).
Install Carburetor
WARNING
Explosive Fuel can cause fi res and severe
burns.
Do not fi ll fuel tank while engine is hot or
running.
Gasoline is extremely fl ammable and its vapors can
explode if ignited. Store gasoline only in approved
containers, in well ventilated, unoccupied buildings,
away from sparks or fl ames. Spilled fuel could ignite if
it comes in contact with hot parts or sparks from
ignition. Never use gasoline as a cleaning agent.
1. Use a new carburetor gasket. Make sure all holes
align and are open.
2. Apply Loctite
®
242
®
to shorter (inner) set of threads
of any removed studs.
3. Assemble carburetor gasket and carburetor to intake
manifold, and start any removed studs. Use two
fl ange nuts locked fl ange to fl ange and tighten each
stud until bottomed/tight.
4. Connect ground lead and fuel solenoid lead as
equipped.

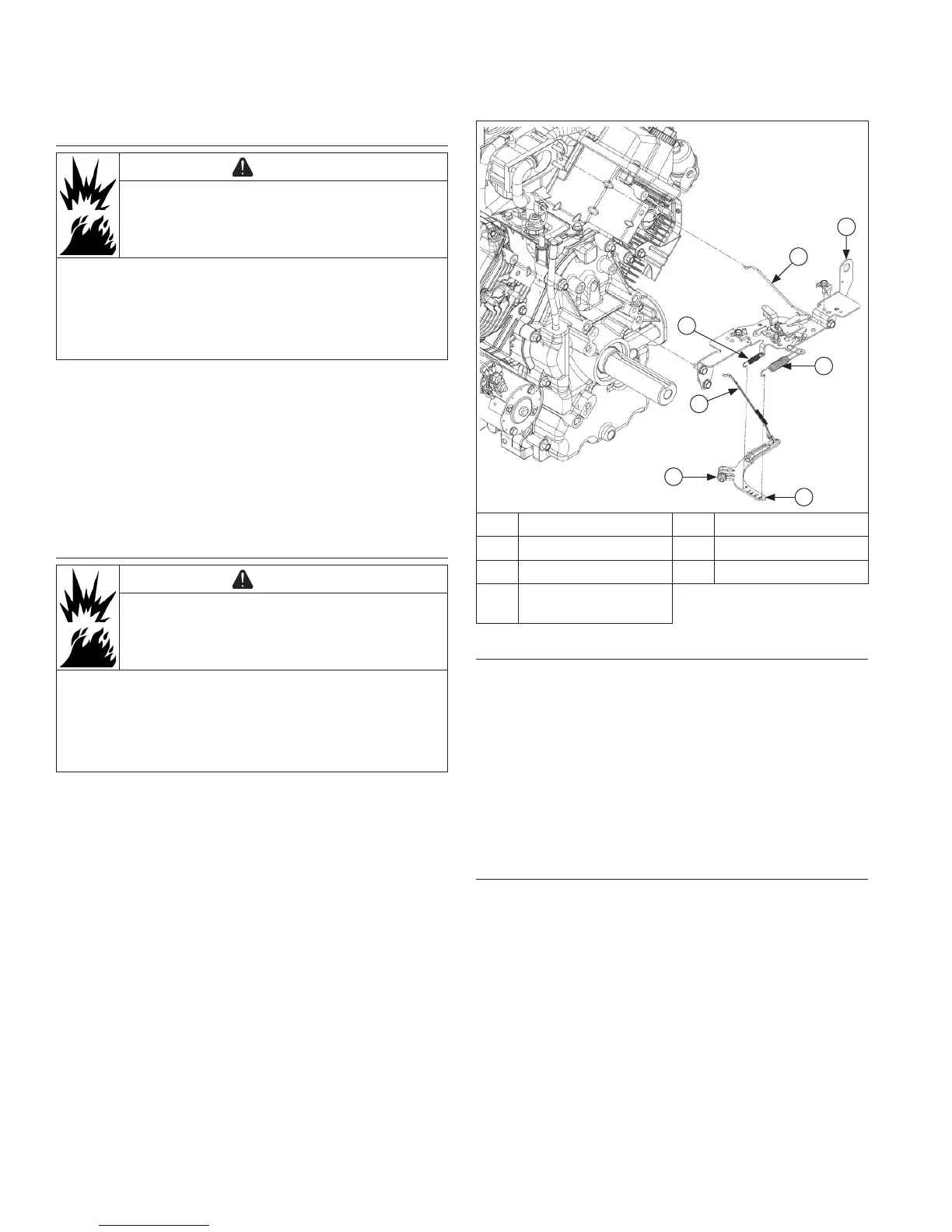

Control Bracket Components
E
F
D
C
B
A
G
A Choke Linkage B Control Bracket
C Governor Spring D Governor Lever
E Nut F Throttle Linkage
G
Governed Idle
Spring
Install External Governor Controls
1. Install governor lever onto governor cross shaft.
2. Make sure throttle linkage is connected to governor
lever and throttle lever on carburetor.
3. Move governor lever toward carburetor as far as it
will go (wide-open throttle) and hold in position.
4. Insert a nail into hole on cross shaft and rotate shaft
counterclockwise as far as it will turn, then torque
nut to 6.8 N·m (60 in. lb.).
5. Reconnect lead wire to fuel shut-off solenoid if
equipped.
Install Throttle & Choke Controls
1. Connect choke linkage to carburetor and choke
actuator lever.
2. Mount main control bracket, and air cleaner support
bracket (if used) to cylinder heads using four screws.
Torque screws to 10.7 N·m (95 in. lb.) into new
holes, or 7.3 N·m (65 in. lb.) into used holes.
3. Connect governor spring from main control bracket
to appropriate hole in governor lever as indicated in
applicable chart. Note that hole positions are
counted from pivot point of governor lever.
Reassembly
66 24 690 34 Rev. DKohlerEngines.com
