14. Install the Door
IMPORTANT! Never leave the door supported with only one hinge attached. Get assistance supporting
the door.
IMPORTANT! Make sure that the cable does not get pinched you close the door.
NOTE: Reattach the top hinge first.

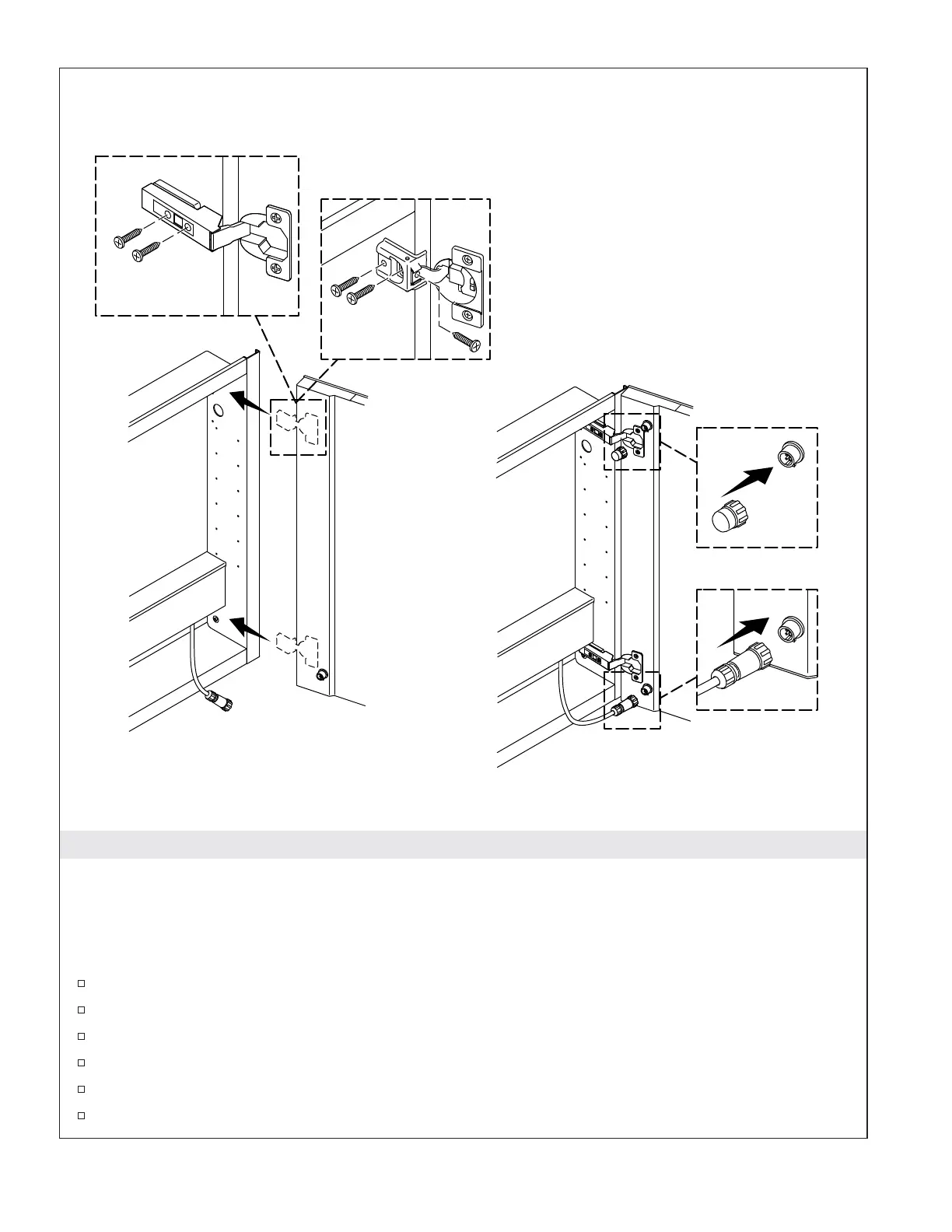

Align the hinges with the hinge holes in the side of the cabinet.
While supporting the door, secure the top hinge to the cabinet with the three screws.
Continue supporting the door while securing the bottom hinge with the three screws.
Align the tab on the end of the cable with the adapter slot at the bottom of the door.
Press the cable connector onto the adapter.
Align the tab on the cap with the adapter slot at the top of the door, then press in place.
All Other Models
K-99011-TLC Only
1337913-2-A 18 Kohler Co.
