Kohler K-99003-TLC User Manual

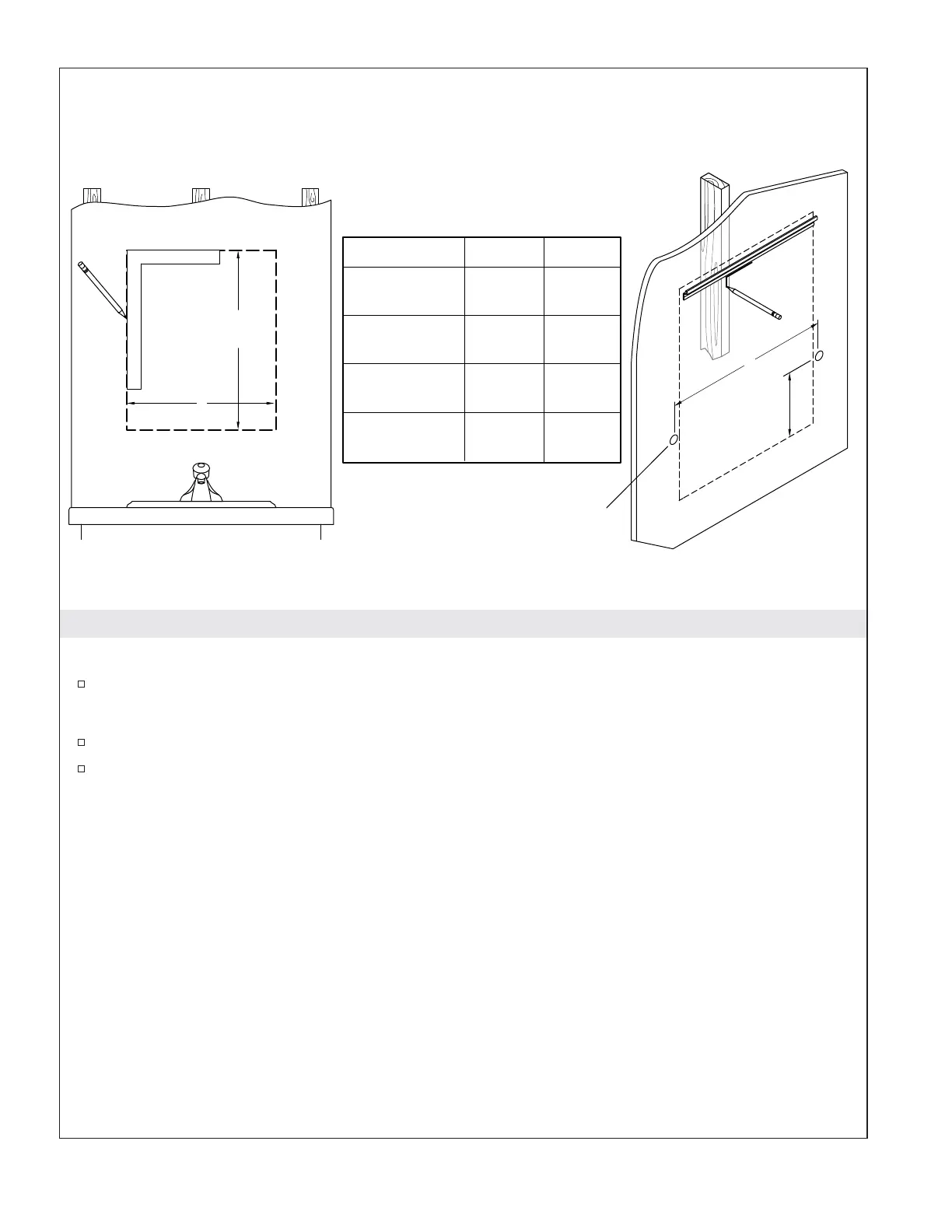

1. Prepare the Site
Recess-Mount Installation
Measure and mark the cutout for your model.
Surface-Mount Installation
Mark the mounting bar position and stud locations.
Determine the electrical wire hole locations according to the dimensions shown above for your
product.
4-5/8"
(117 mm)
Y
Ø 3/4"
(19 mm)
28-1/4"
(718 mm)
X
39-1/2"
(1003 mm)
33-1/2"
(851 mm)
23-1/2"
(597 mm)
19-1/2"
(495 mm)
39-1/8"
(994 mm)
33-1/8"
(841 mm)
23-1/8"
(587 mm)
19-1/8"
(486 mm)
YX
K-99011-TLC
K-99009-TLC
K-99007-TLC
K-99003-TLC
Surface-Mount Installation
Recess-Mount Installation
Kohler Co. 5 1337913-2-A
