TP-7070 8/2038 Section 2 Operation
2.10.4 Consulting Status Messages
Reviewing the status messages is possible at any time.
D
epending on the status type, the APM802 will log
different messages:
Appearance
Disappearance
Appearance/Disappearance
Present/Not present
Open/Close
On/Off
Start/End

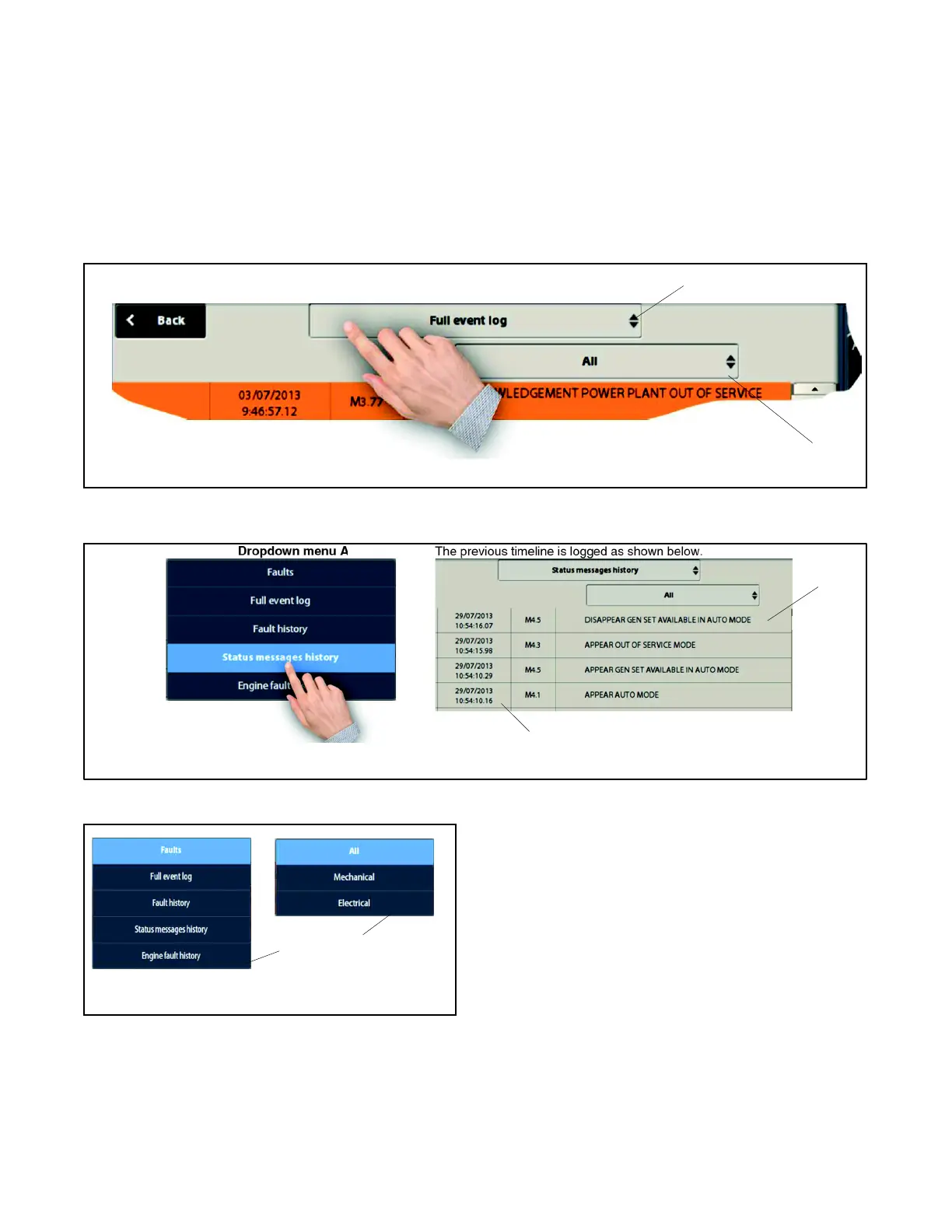

After pressing the Alarm (!) button, and if no fault or
alarm is present, select Status messages history in
drop-down menu A. See Figure 2-34 and Figure 2-35.
1. Drop-down menu A (see Figure 2-35)
2. Drop-down menu B (used to select between all, mechanical, or electrical type status messages)
1
2
Figure 2-34 Drop- down Menus
1. The most recent status in the sequence
2. The oldest status in the sequence
1
2
Figure 2-35 Drop- down Menu A
1. Drop- down list A
2. Drop- down list B
1 2
Figure 2-36 D
rop- down Lists A and B
