3.19 Load Control Menus
The Load Control menu displays the status of the load
management inputs and outputs, and allows a test of the
load management output relays. This menu appears
only if a load management device is connected.
Generator current is displayed as a percent of the
maximum generator capacity. The load management
device adds and sheds loads based on the generator
current.
The test function cycles the relays in the order of their
priority. For detailed information about load
management operation, refer to TT--1609, provided with
the load shed kit, or TP--6807, RXT Transfer Switch
Operation and Installation Manual.
Input 1:
In/Active
Output 1:
Add/Shed
Input 2:
In/Active
Output 2:
Add/Shed
Output 3:
Add/Shed
Output 4:
Add/Shed
Output 5:
Add/Shed
Output 6:
Add/Shed
Test Outputs
Push Select (blinking)
<---- Return
tp6810
Load ---->
Control
Load ---->
Control 1
<---- Return
Generator
Current: 123 %

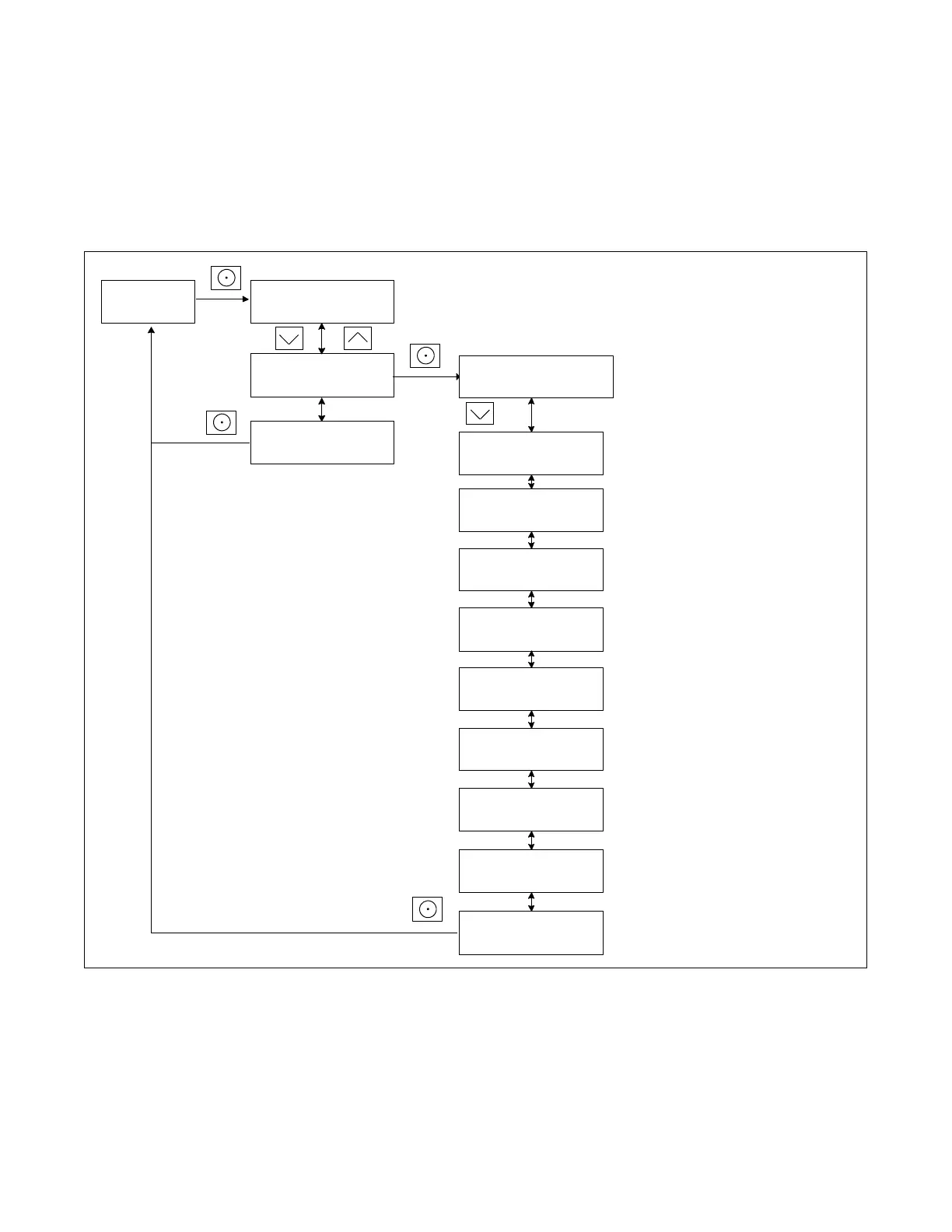

Figure 3-23 Load Control Status Menu
