OM3072 2/13 Operating Instructions - Section 30
Page 30-5

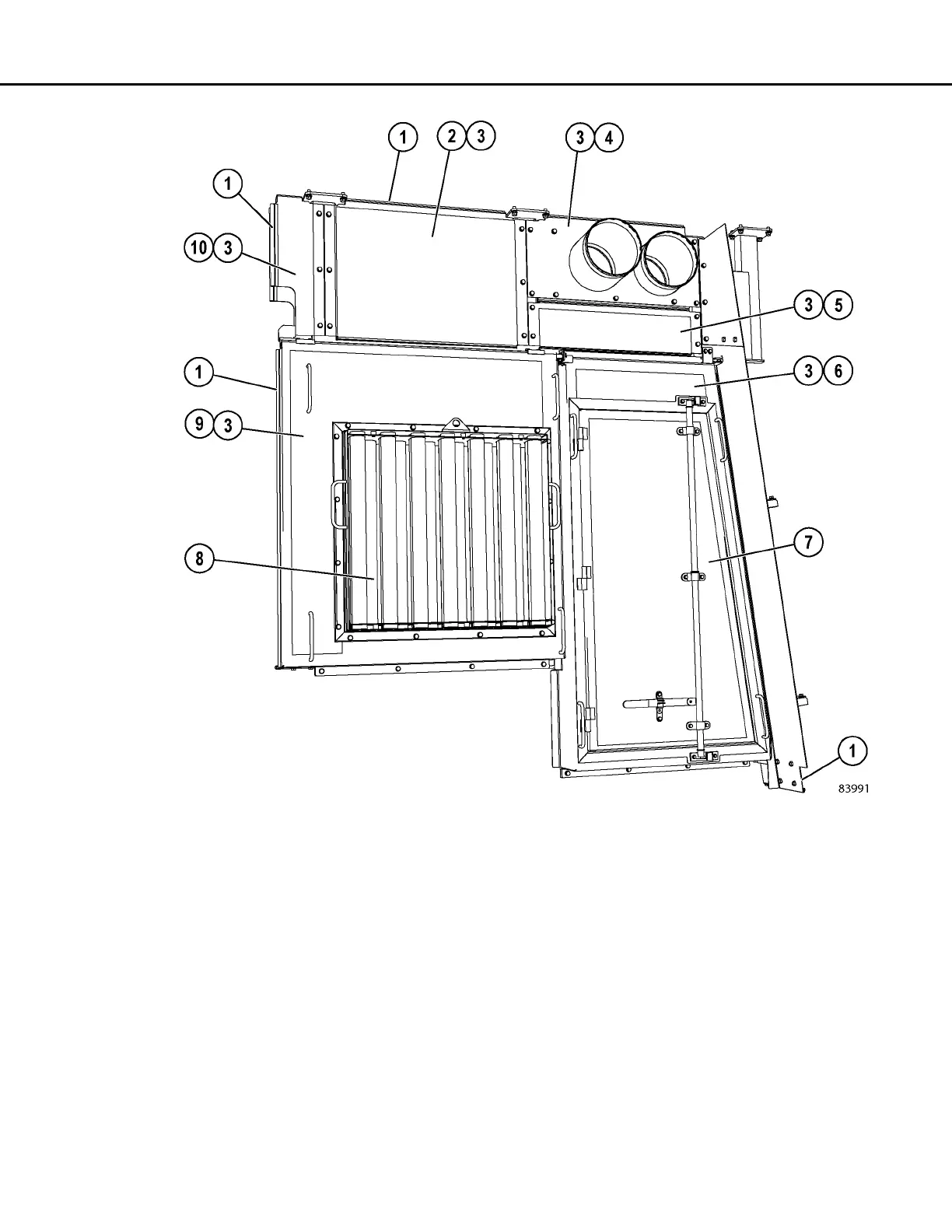

FIGURE 30-4. ENGINE SIDE PANEL ASSEMBLY
1. Seals
2. Upper Panel (Perforated Sheet)
3. Insulation
4. Bulkhead Panel Assembly
5. Upper Front Panel (Perforated Sheet)
6. Panel (Perforated Sheet)
7. Access Door Assembly
8. Attenuator Assembly
9. Panel Assembly
10. Panel Assembly
