VISIBILITY FROM OPERATOR'S SEAT
The visibility of this machine required by visibility standards (ISO 5006) is shown as follows.

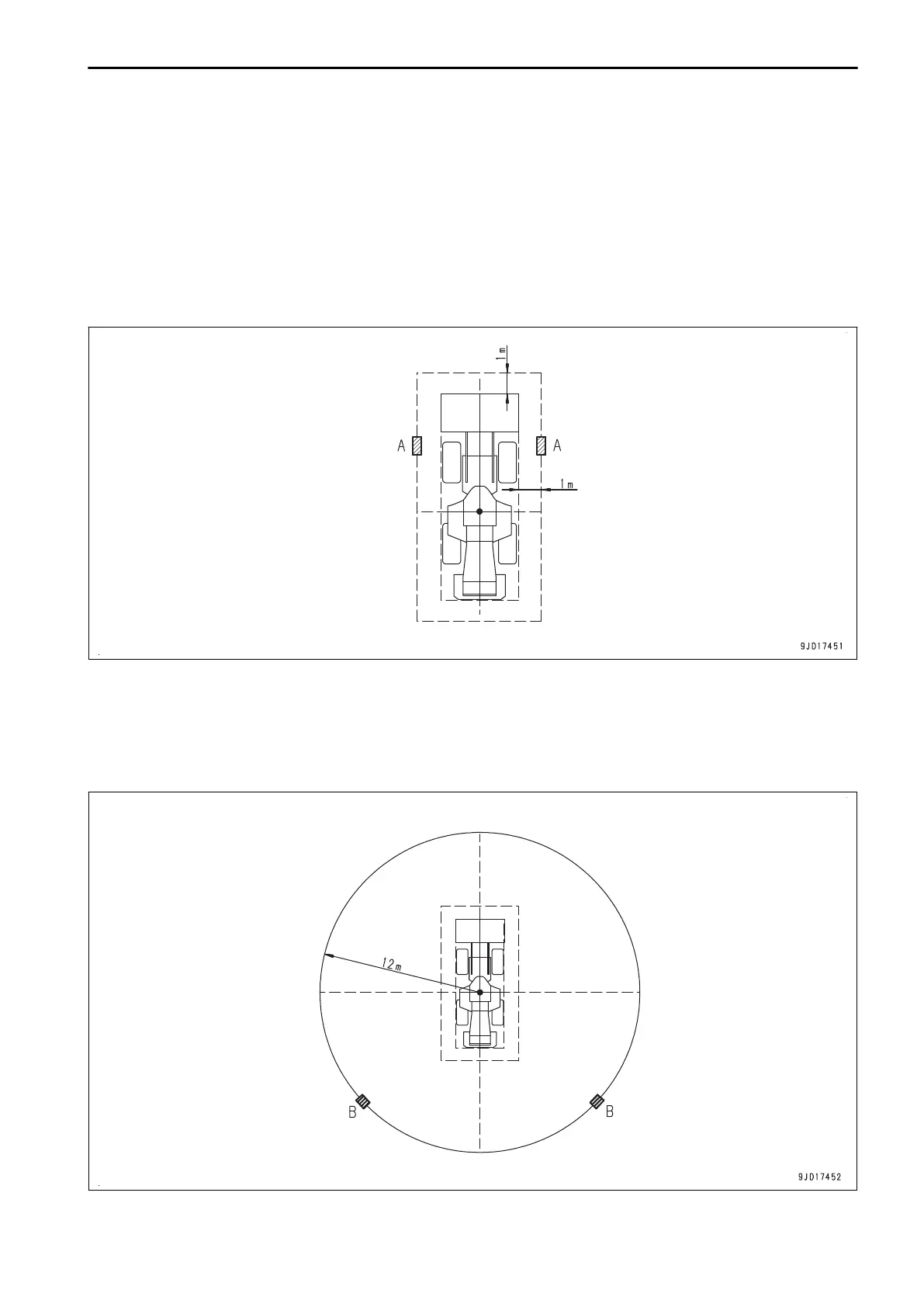

Proximity visibility
The figure below shows a visibility from the machine at a spot 1 m {3
ft 3 in} away from outside the machine and
1.5 m {4 ft 11 in} above the ground.
Shaded area (A) in the figure shows an area whose view is blocked by a part of the machine when the machine
is equipped with the mirrors, rearview camera, and other visibility assistant devices.
Be fully aware that there is an area where the operator cannot see when operating the machine.
12 m radius visibility
The figure below shows a visibility from the machine for a radius of 12 m {39 ft 4 in}.
Shaded area (B) in the figure shows an area whose view is blocked when the machine is equipped with the
mirrors, rearview camera, and other visibility assistant devices.
Be fully aware that there is an area where the operator cannot see when operating the machine.
FOREWORD INTRODUCTION
1-5
