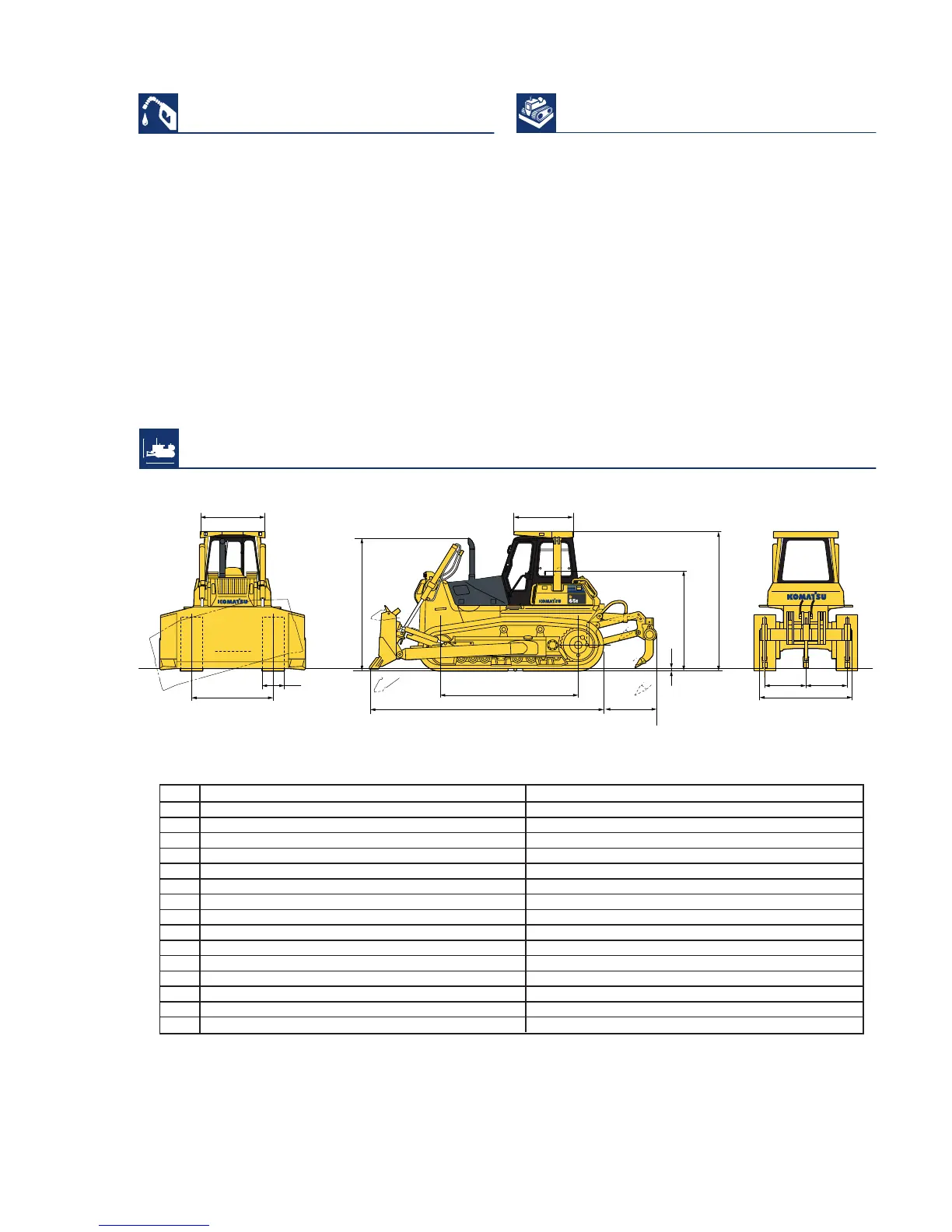

DIMENSIONS
B
A
E
H, H*
F
J
I, I*
G.L.
G.L.
M
L
M
FVD00585
D
C
G
K
D65E-12 D65P-12
A 5440 mm 17'10" 5520 mm 18'1"
B 1880 mm 6'2" 2050 mm 6'9"
C 3165 mm 10'5" 3165 mm 10'5"
D 2990 mm 9'10" 2990 mm 9'10"
E 2675 mm 8'9" 3285 mm 10'9"
F 510 mm 20.1" 915 mm 36.0"
G 65 mm 2.6" 65 mm 2.6"
H 1270 mm 4'2" 1270 mm 4'2"
H* 1830 mm 6'0" 1830 mm 6'0"
I 1490 mm 4'11" 1490 mm 4'11"
I* 1600 mm 5'3" 1600 mm 5'3"
J 2300 mm 7'7" 2300 mm 7'7"
K 1220 mm 4'0" N/A
L 2170 mm 7'1" N/A
M 950 mm 3'1" N/A
Dimension with semi-U dozer and multi-shank ripper (D65E) and straight tilt dozer (D65P).
*ROPS canopy without cab.
COOLANT AND LUBRICANT
CAPACITY
(REFILLING)
Coolant. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52 ltr 13.7 U.S. gal
Fuel tank . . . . . . . . . . . . . . . . . . . . . . . . . . . . 406 ltr 107.3 U.S. gal
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 ltr 10.0 U.S. gal
Damper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.7 ltr 0.4 U.S. gal
Transmission, bevel gear,
and steering system . . . . . . . . . . . . . . . . . . . 48 ltr 12.7 U.S. gal
Final drive (each side)
D65E-12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 ltr 6.3 U.S. gal
D65P-12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 ltr 7.1 U.S. gal
OPERATING WEIGHT (APPROXIMATE)
Tractor weight:
Including rated capacity of lubricant, coolant, full fuel tank, operator
and standard equipment.
D65E-12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15620 kg 34,440 lb
D65P-12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16940 kg 37,350 lb
Operating weight:
Including semi U-tilt dozer (E) or straight tilt dozer (P), ROPS canopy,
steel cab, operator, standard equipment, rated capacity of lubricant,
coolant, and full fuel tank.
D65E-12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19125 kg 42,160 lb
D65P-12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20185 kg 44,500 lb
Ground clearance . . . . . . . . . . . . . . . .405 mm 1'4"
