KOMATSU
HD785-7 Dump Truck
PARTS LIST – TL4 24V DC PRESSURISER UNIT
Item No.
Qty.
Description
Part No.
1
1
Pre-cleaner Hood & Rotor Assy
200004
2
4
Pre-cleaner Injector Ring
200005
3
1
TL Fan Blade (inc. in #7)
200006
4
1
TL Nose Cone / Pre-cleaner
200007
5
1
TL Motor Housing
200008
6
1
TL Filter Housing
200009
7
1
24v DC Brushless VSD Motor & TL Fan Blade
200002
8
1
O Ring Seal Kit 2 Parts
200010
9
1
Included in 8
200011
10
1
Wiring Sleeve
200012
11
1
HEPA H14 Filter
500000
12
3
M6 Nyloc Nut
300218 (M6NYL)
13
3
M6 x 55mm Hex Bolt
300982 (M655B)
14
4
M8 x 190 Hex Bolt
301136 (M8190B)
15
8
M8 x 22mm O/D HD Washer
300230 (M8222HTW)
16
4
M8 Nyloc Nut
300249 (M8NYL)
17
5
M4 x 75mm Pan Head Phillips Screw
300162 (M475PBH)

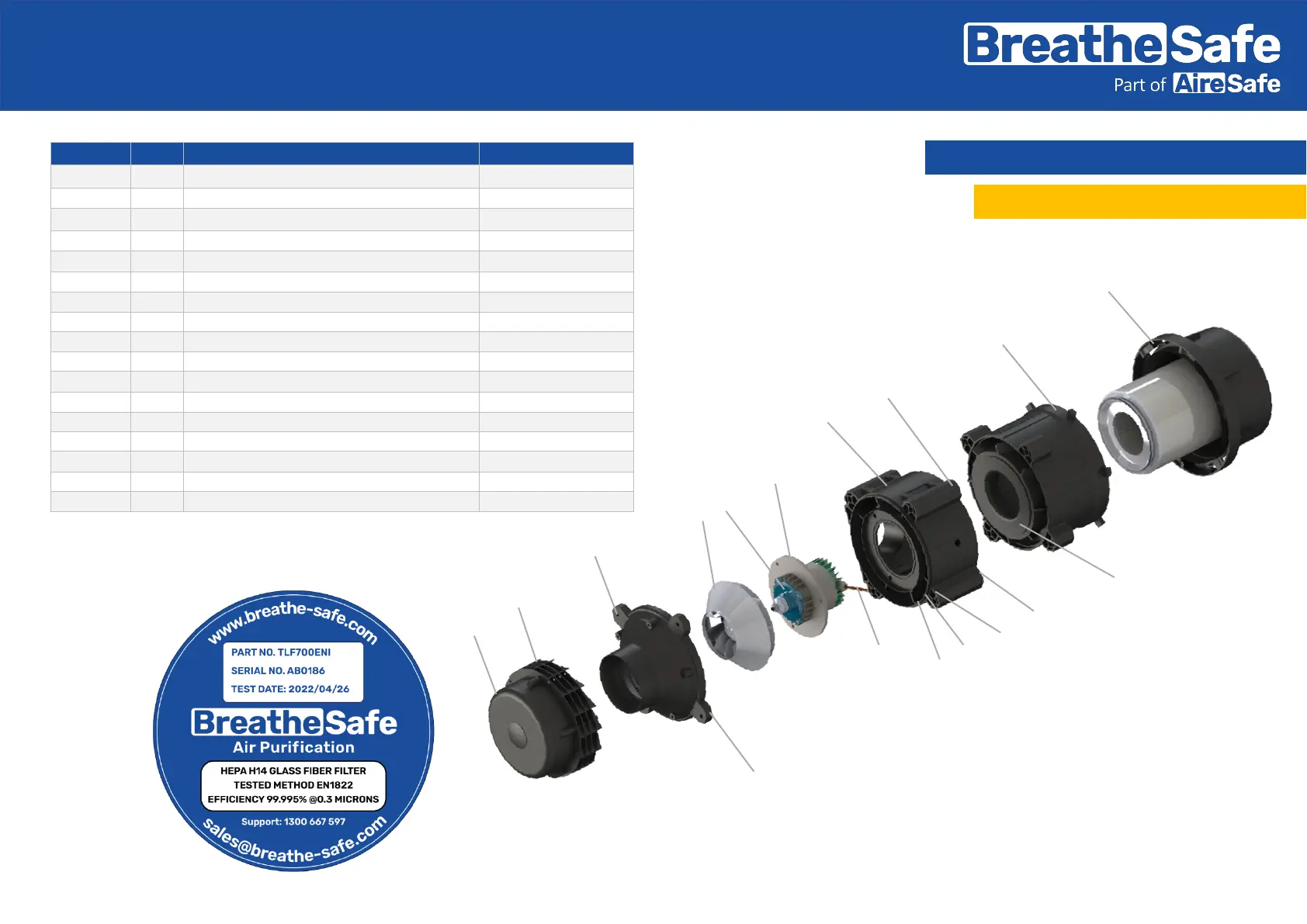

PRESSURISER ASSEMBLY No: 200000
1
2
4
7
13
17
8
10
14
15
16
9
5
12
6
11
