KTM 125 SX 2018 Setup Instructions

3 WORK
10
K00454-11

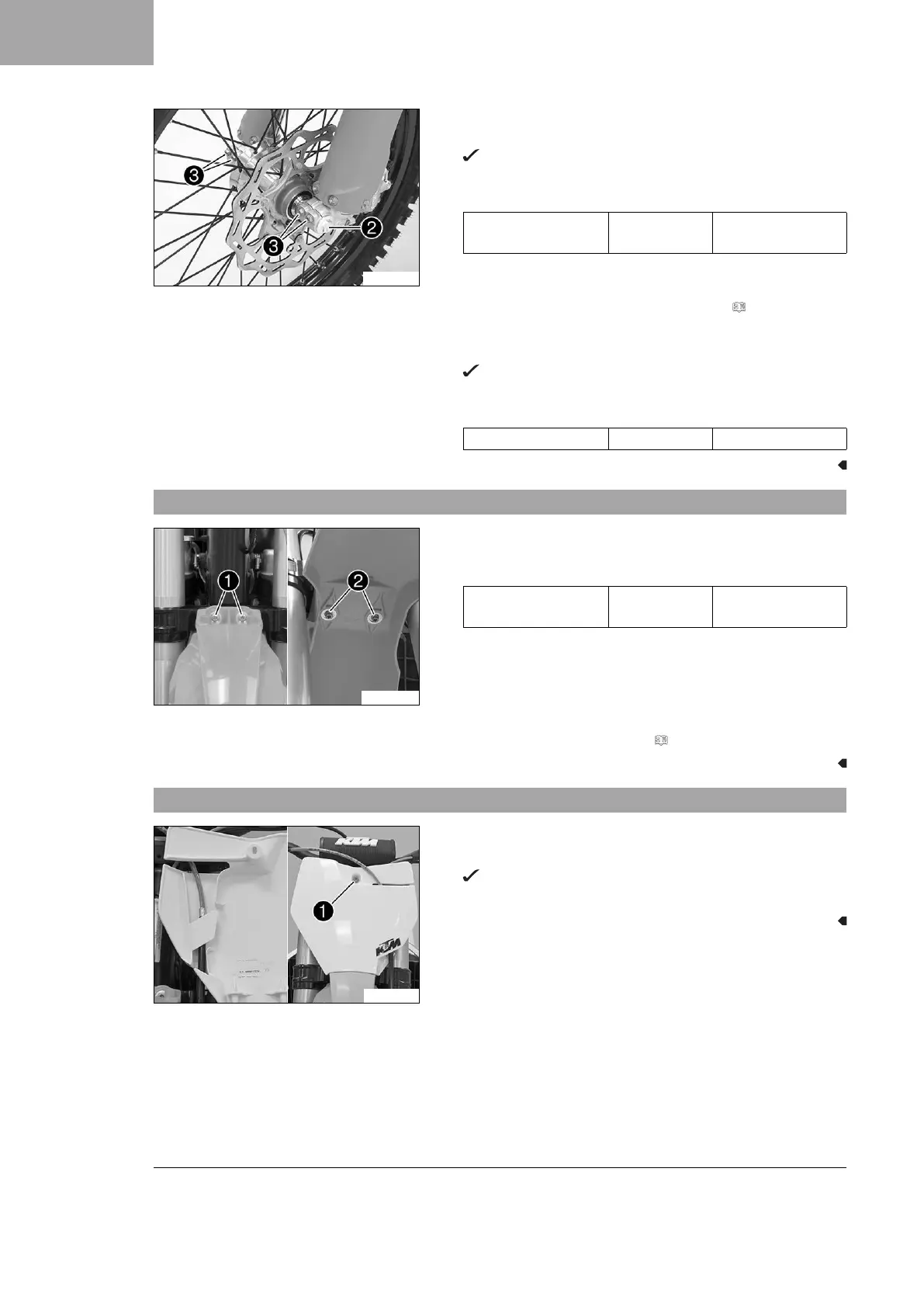

– Lift the front wheel into the fork, position it, and insert the
wheel spindle.
The brake linings are correctly positioned.
–
Mount and tighten screw
2
.
Guideline
Screw, front wheel
spindle
M20x1.5 35 Nm (25.8 lbf ft)
– Operate the hand brake lever several times until the brake lin-
ings are seated correctly against the brake disc.
– Remove the motorcycle from the lift stand. ( p. 8)
– Operate the front brake and compress the fork a few times
firmly.
The fork legs straighten.
–
Tighten screws
3
.
Guideline
Screw, fork stub M8 15 Nm (11.1 lbf ft)
3.5 Installing front fender
M01144-10
Main work
–
Position front fender. Mount and tighten screws
1
and
2
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
Finishing work
– Install the start number plate. ( p. 10)
3.6 Installing the start number plate
F00013-10
– Connect the brake line at the start number plate.
– Position the start number plate.
The holding lugs engage in the fender.
–
Mount and tighten screw
1
.

KTM 125 SX 2018 Specifications

General

Displacement	124.8 cm³
Bore x Stroke	54 mm x 54.5 mm
Starter	Kickstarter
Transmission	6-speed
Rear Suspension	WP shock absorber with linkage
Ground Clearance	375 mm
Seat Height	950 mm
Cooling	Liquid-cooled
Front Tire	80/100-21"
Rear Tire	100/90-19"
Engine Type	1-cylinder, 2-stroke
Front Suspension	WP USD, 48 mm
Front Brake	Disc brake
Rear Brake	Disc brake
Fuel Tank Capacity	7.5 liters
Fuel System	Carburetor
Wheelbase	1485 mm
