KTM 125 SX 2018 Setup Instructions

3 WORK
11

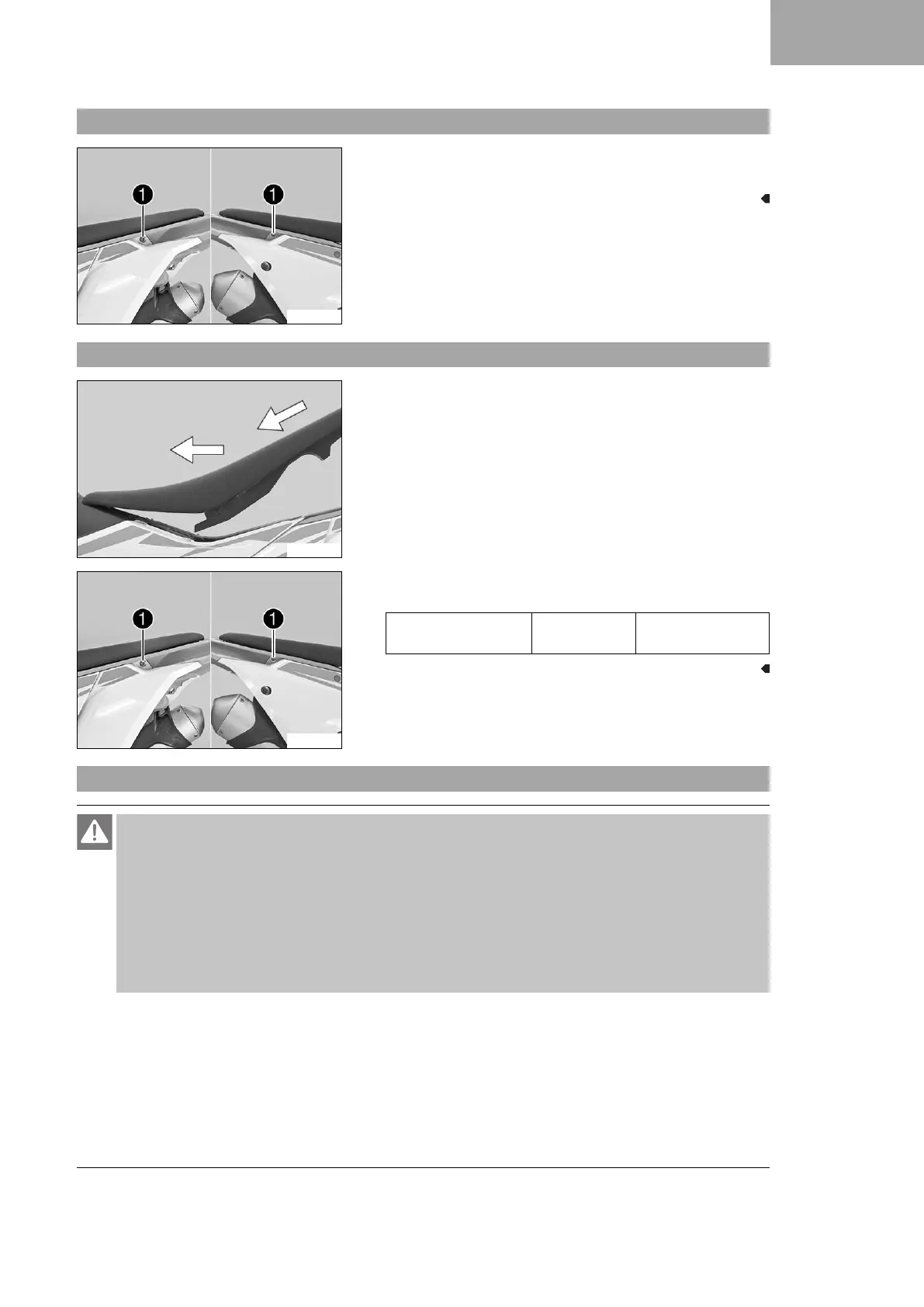

3.7 Removing the seat
F00017-10
–
Remove screws
1
.
– Raise the rear of the seat, pull the seat back, and lift it off.
3.8 Mounting the seat
F00016-10
– Mount the front of the seat on the collar bushing of the fuel
tank, lower the seat at the rear, and push the seat forward.
– Make sure that the seat is correctly locked in.
F00017-10
–
Mount and tighten screws
1
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
3.9 Refueling
Danger
Fire hazard Fuel is highly flammable.
The fuel in the fuel tank expands when warm and can escape if overfilled.
– Do not refuel the vehicle in the vicinity of open flames or lit cigarettes.
– Switch off the engine for refueling.
– Make sure that no fuel is spilled; particularly not on hot parts of the vehicle.
– If any fuel is spilled, wipe it off immediately.
– Observe the specifications for refueling.

KTM 125 SX 2018 Specifications

General

Displacement	124.8 cm³
Bore x Stroke	54 mm x 54.5 mm
Starter	Kickstarter
Transmission	6-speed
Rear Suspension	WP shock absorber with linkage
Ground Clearance	375 mm
Seat Height	950 mm
Cooling	Liquid-cooled
Front Tire	80/100-21"
Rear Tire	100/90-19"
Engine Type	1-cylinder, 2-stroke
Front Suspension	WP USD, 48 mm
Front Brake	Disc brake
Rear Brake	Disc brake
Fuel Tank Capacity	7.5 liters
Fuel System	Carburetor
Wheelbase	1485 mm
