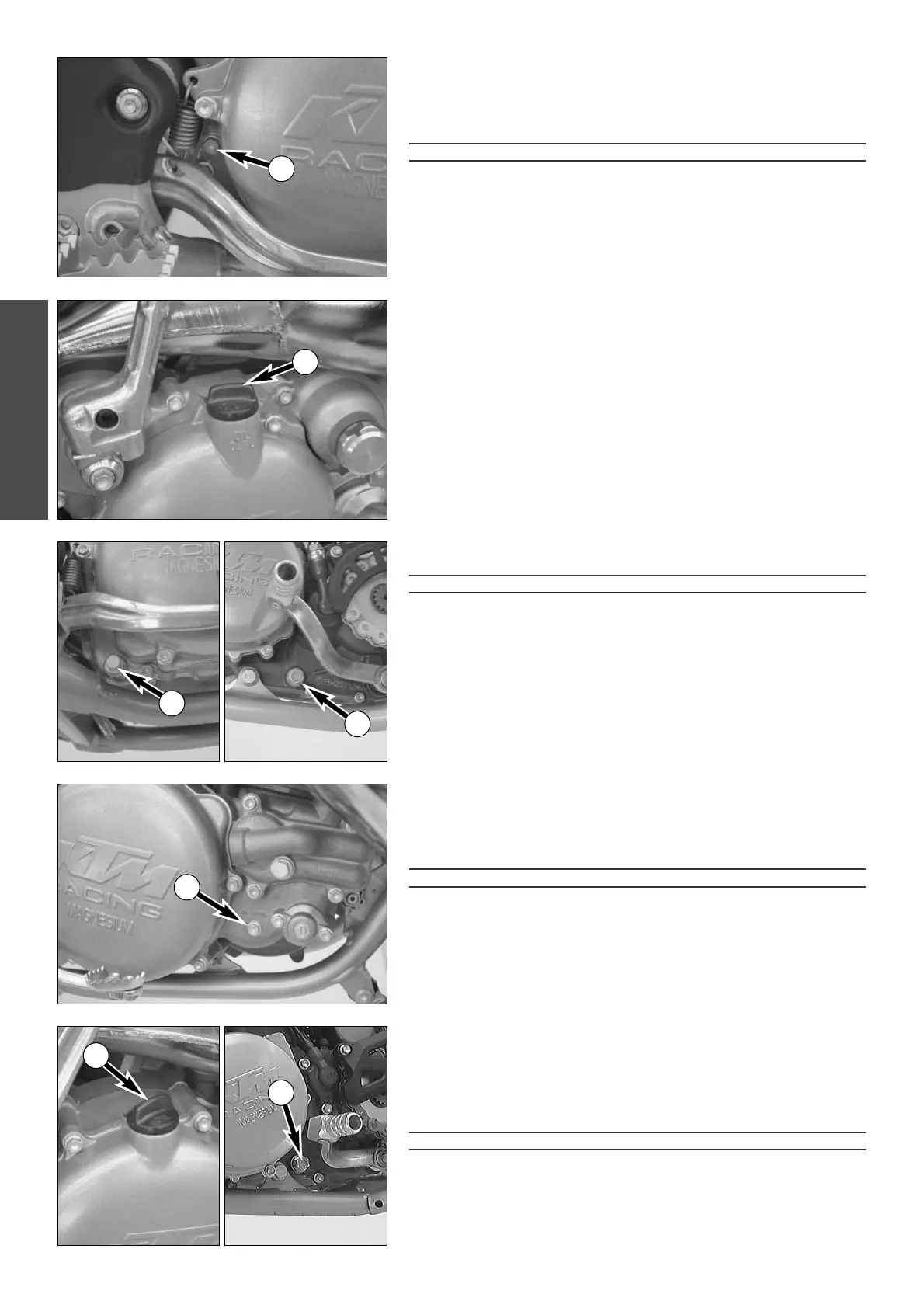

Check transmission oil level (125/200)
In order to check the transmission oil level the control screw 1 on the clutch
cover is to be removed. Oil should just barely escape from the inspection
opening when the motorcycle is in an upright position. If necessary, remove
the plug
2 and top up with oil (see technical data engine).
! CAUTION !
TRANSMISSION AND CLUTCH WILL BE SUBJECTED TO EXCESSIVE WEAR AND TEAR IF YOU USE
TOO LITTLE OR LOW GRADE OIL
. USE ONLY HIGH-GRADE OIL.
Changing the transmission oil (125/200) *
To change the gear oil warm up the engine and park the motorcycle on a
horizontal surface. Remove oil drain plugs
3 and 4 and drain the used oil
into an appropriate container. Clean the magnets of the oil drain plugs and
mount them together with the appropriate gaskets. Fill in 0.7 l oil (see tech-
nical data- engine), mount the plug
2 and check the engine for leaks.
! CAUTION !
TRANSMISSION AND CLUTCH WILL BE SUBJECTED TO EXCESSIVE WEAR AND TEAR IF YOU USE
TOO LITTLE OR LOW GRADE OIL
. USE ONLY HIGH-GRADE OIL.
Check transmission oil level (250/300)
In order to check the transmission oil level the control screw 5 on the clutch
cover is to be removed. Oil should just barely escape from the inspection
opening when the motorcycle is in an upright position. If necessary, remove
the plug
6 and top up with oil (see technical data- engine).
! CAUTION !
TRANSMISSION AND CLUTCH WILL BE SUBJECTED TO EXCESSIVE WEAR AND TEAR IF YOU USE
TOO LITTLE OR LOW GRADE OIL
. USE ONLY HIGH-GRADE OIL.
Changing the transmission oil (250/300) *
To change the transmission oil run the engine warm and set up the motorcy-
cle on a horizontal surface. Remove the oil drain screw
7 and drain used oil
into a container. Clean the magnet of the oil drain screw and reinstall oil
drain screw with seal. Pour in 0.7 litres engine oil (see technical data engine),
replace plug
6 and check engine for leaks.
! CAUTION !
T
RANSMISSION AND CLUTCH WILL BE SUBJECT TO EXCESSIVE WEAR AND TEAR, IF YOU USE
TOO LITTLE OR LOW GRADE OIL
. USE ONLY HIGH-GRADE OIL.
1
2
3
4
5
6
7

KTM 125EXC 2004 Specifications

General

Engine Type	Single-cylinder, 2-stroke
Displacement	124.8 cc
Bore x Stroke	54 mm x 54.5 mm
Cooling System	Liquid cooled
Transmission	6-speed
Front Suspension	WP USD 48 mm
Fuel System	Carburetor
Front Tire	90/90-21
Starter	Kickstarter
Rear Brakes	Single disc
Fuel Capacity	9.5 L
Ignition	Kokusan
Rear Suspension	WP-PDS shock absorber
Frame Type	Chromium molybdenum steel
Wheelbase	1475 mm
