KTM 125EXC 2004 User Manual

ENGLISH
5

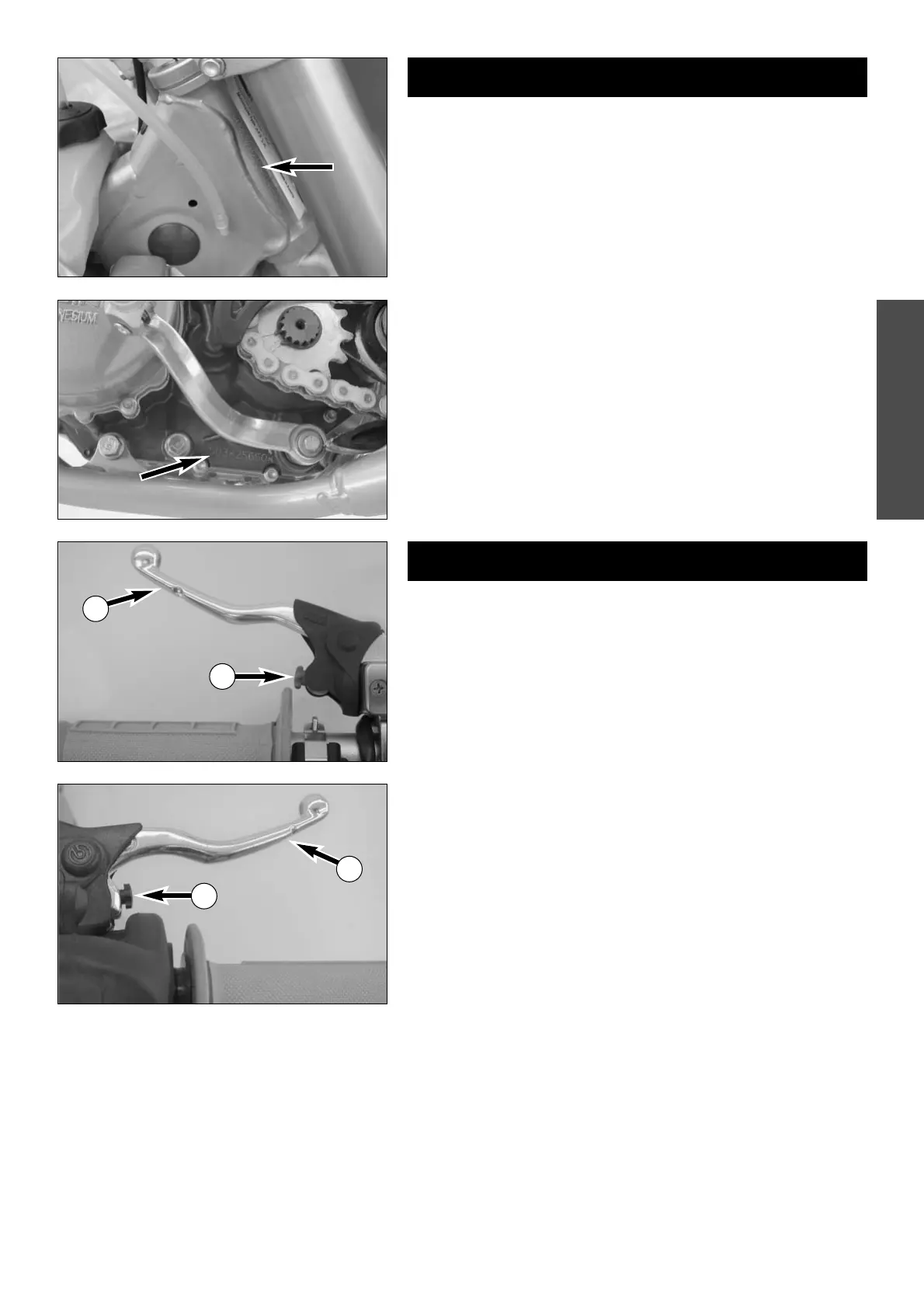

Chassis number
The chassis number is stamped on the right side of the steering head tube.
Enter this number in the field on page no 1.
Engine number, engine type
The engine number and the engine type are stamped into the left side of
the engine below the engine sprocket. Enter this number on page 1.
SERIAL NUMBER LOCATIONS
OPERATION INSTRUMENTS
Clutch lever
The clutch lever 1 is located on the left side of the handlebars. The adjust-
ing screw
A is used to change the original position of the clutch lever (see
maintenance work on chassis and engine).
Hand brake lever
The hand brake lever 2 is mounted on the handlebars on the right and
actuates the front wheel brake. The adjusting screw
B can be used to
change the basic position of the hand brake lever (see maintenance work
on chassis and engine).
1
A
B
2

KTM 125EXC 2004 Specifications

General

Engine Type	Single-cylinder, 2-stroke
Displacement	124.8 cc
Bore x Stroke	54 mm x 54.5 mm
Cooling System	Liquid cooled
Transmission	6-speed
Front Suspension	WP USD 48 mm
Fuel System	Carburetor
Front Tire	90/90-21
Starter	Kickstarter
Rear Brakes	Single disc
Fuel Capacity	9.5 L
Ignition	Kokusan
Rear Suspension	WP-PDS shock absorber
Frame Type	Chromium molybdenum steel
Wheelbase	1475 mm
