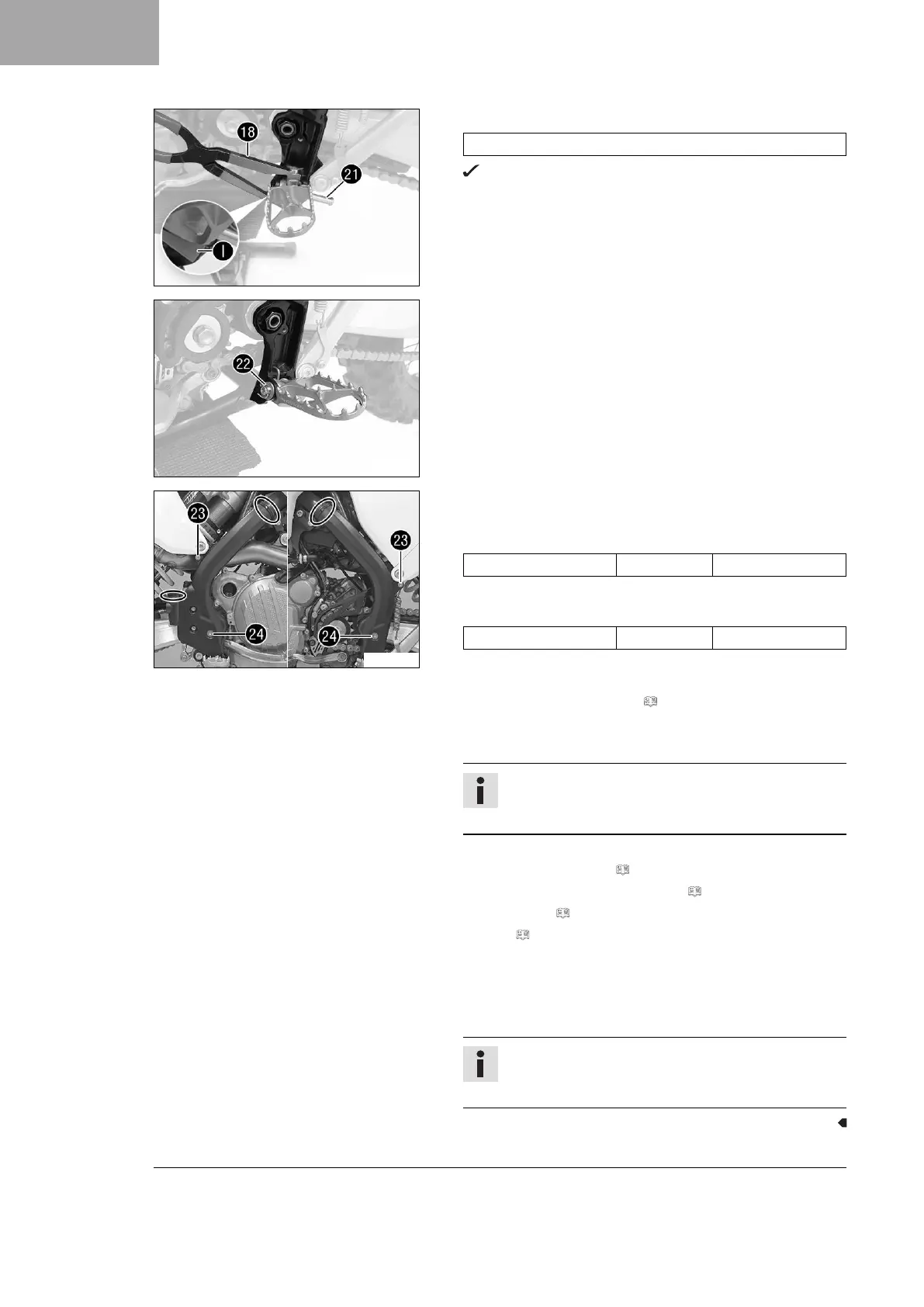

KTM 250 EXC-F 2018 User Manual

2 SETUP
18
F01080-10
–
Press the spring with special tool
bs
.
Pliers for footrest spring (79029083000)
The special tool is applied to area
I
on the footrest.
–
Mount pin
cl
.
F01081-10
–
Mount the washer and split pin
cm
.
F01079-10
– Position the frame protectors on both sides.
–
Mount and tighten screws
cn
.
Guideline
Screw, frame protector M5 3 Nm (2.2 lbf ft)
–
Mount and tighten screws
co
with the washers.
Guideline
Screw, frame protector M5 3 Nm (2.2 lbf ft)
– Mount the cable tie(s).
(EXC‑F AU, EXC‑F Six Days)
– Install the engine guard. ( p. 37)
– Unpack and mount the KTM PowerParts included in the deliv-
ery (optional).
Info
Read the accompanying KTM PowerParts fitting instruc-
tions.
– Apply the sticker included in the delivery (optional).
– Set kilometers or miles. ( p. 39)
– Adjust the combination instrument. ( p. 40)
– Set the clock. ( p. 40)
– Refuel. ( p. 38)
– Position all controls in their exact positions on the handlebar.
Tighten all screws.
– Prepare the vehicle according to the specifications in the
KTM Dealer.net for handover to the customer.
Info
Transport mode must be deactivated to be able to start
the motorcycle.
