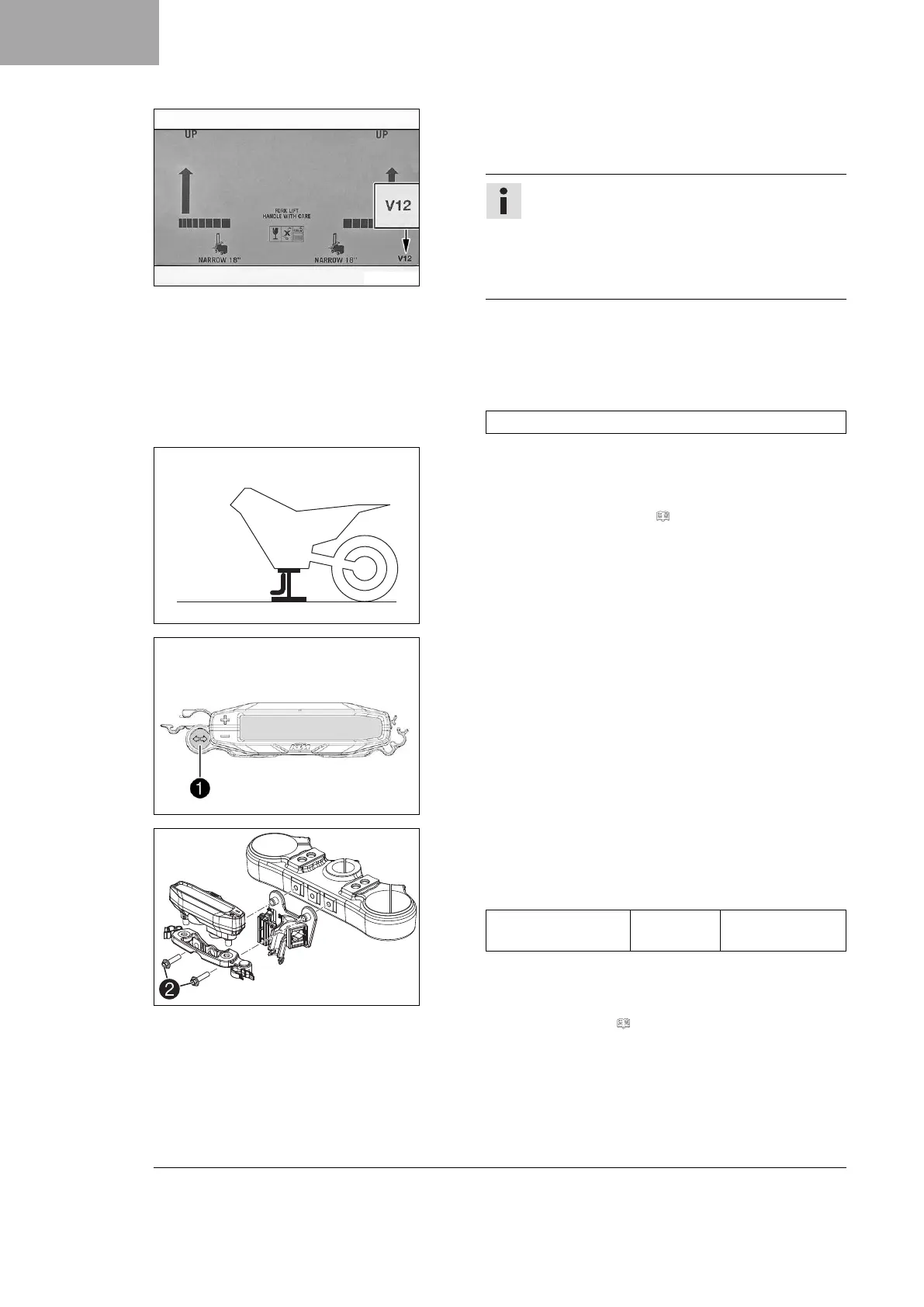

KTM 250 EXC-F 2018 User Manual

2 SETUP
4
E00850-10
Condition
Packaging V12
– Remove the box and the plastic packaging.
Info
An assistant prevents the motorcycle from falling
over.
To avoid damaging the motorcycle during the setup,
leave the protective film on the vehicle until you
have finished.
– Remove and unpack the separate enclosure and attach-
ments. Check that the scope of supply is complete using
the enclosed packing list.
– Remove the two cable ties on the triple clamp.
– Have a lift stand available.
Lift stand (78129955100)
402051-01
– Together with an assistant, take the vehicle off the pallet.
– Position the vehicle on a lift stand.
– Check the vehicle and attachments for transport damage.
– Install the shock absorber. ( p. 22)
H01768-10
–
Position the turn signal indicator lamp
1
in the
speedometer bracket.
402736-10
– Position the connector retainer and speedometer on the
upper triple clamp.
–
Mount and tighten screws
2
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
– Route the clutch line with the clutch master cylinder
toward the front between the upper and lower triple
clamps.
– Install the fork legs. ( p. 23)

KTM 250 EXC-F 2018 Specifications

General

Displacement	249.91 cm³
Bore x Stroke	78 mm x 52.3 mm
Starter	Electric starter
Transmission	6-speed
Cooling	Liquid cooled
Rear Suspension	WP Xplor PDS shock absorber
Ground Clearance	370 mm
Seat Height	960 mm
Compression Ratio	12.8:1
Ignition	Kokusan
ABS	No
Engine Type	Single cylinder, 4-stroke
Front Suspension	WP Xplor 48
Front Brake	Disc brake
Rear Brake	Disc brake
Clutch	Wet multi-disc clutch, hydraulically operated
Wheelbase	1482 mm
Front Wheel	21"
Rear Wheel	18"
Fuel System	Keihin EFI, throttle body 42 mm
Frame	Central double-cradle-type 25CrMo4 steel
Front Tire	90/90-21
