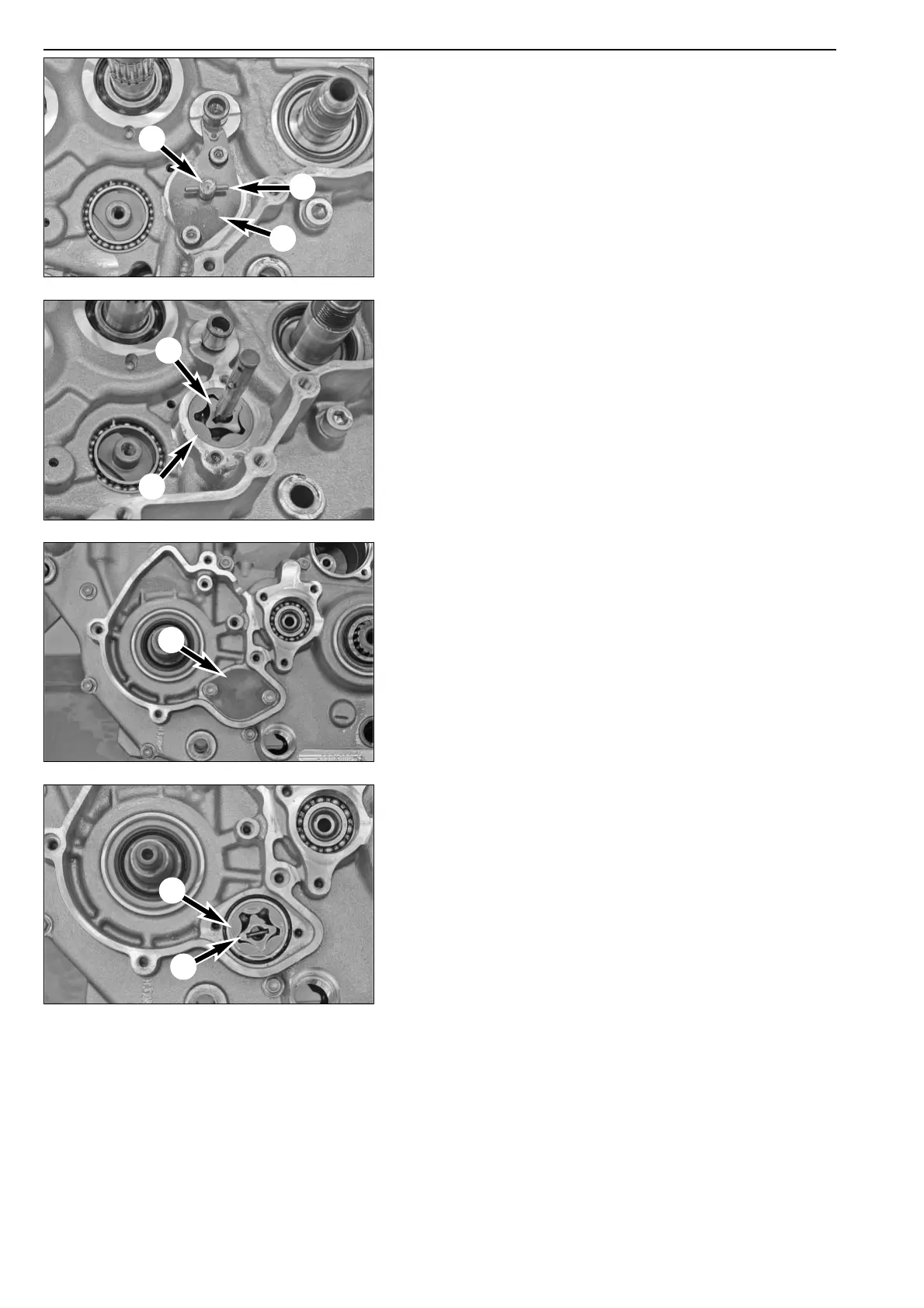

Removing the oil pumps
– Remove the oil pump gear and the oil pump idler.
– Pull the needle roller
1 out of the oil pump shaft 2.
– Remove the screws and remove the pump cover from the pressure
pump
3.
– Pull out the oil pump shaft and remove the needle roller.
– Take both pressure pump rotors
4 out of the engine case.
– Remove the screws and lift the pump cover off the suction pump
5,
discarding the O-ring.
– Remove both suction pump rotors
6 out of the engine case, do not
lose the needle roller for the inner rotor.
NOTE: the pressure pump rotors are narrower than the suction pump
rotors.
