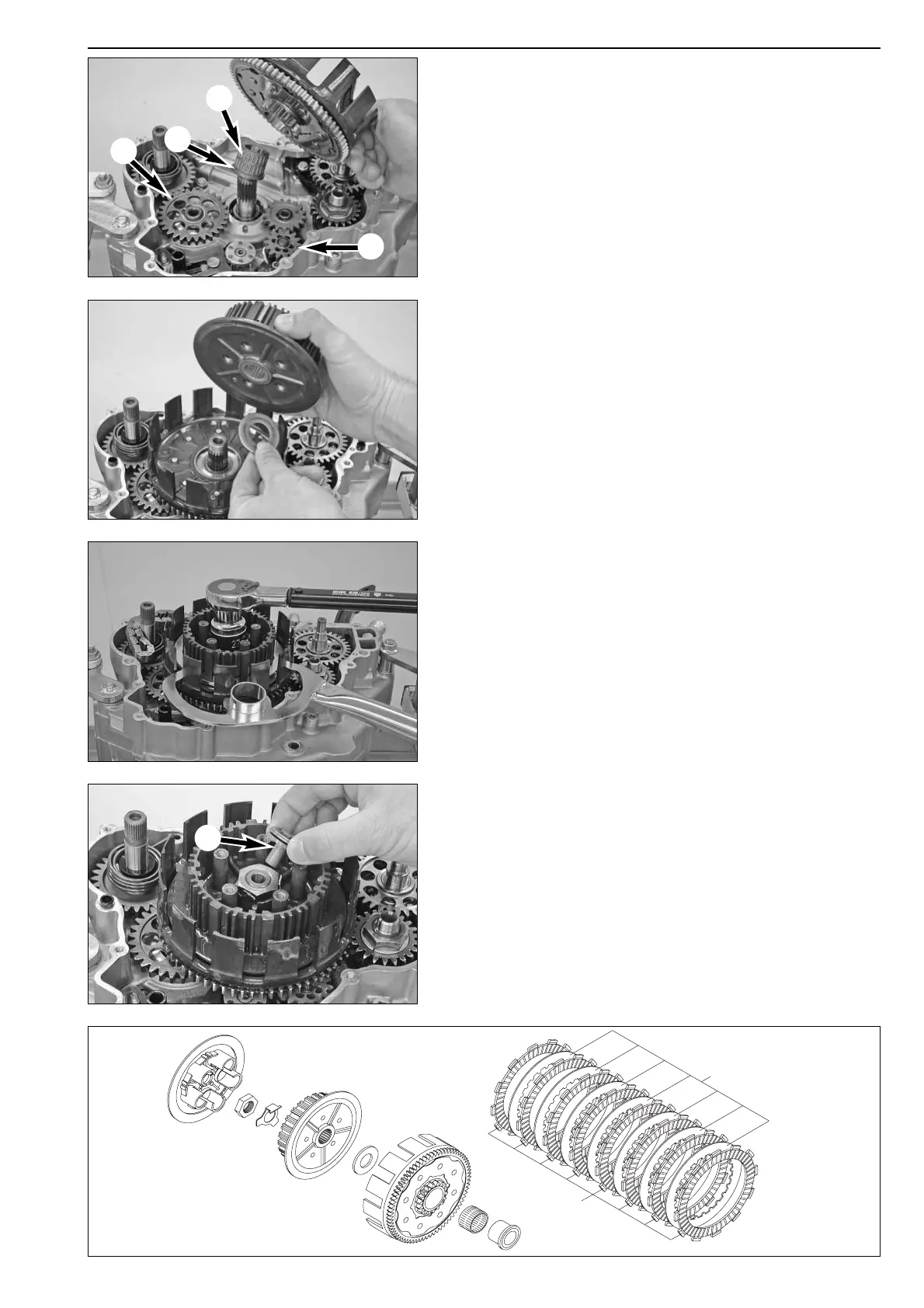

Mounting the clutch
– Slide the inner ring 1, needle bearing 2 and outer clutch hub on
the main shaft.
NOTE: Turn the starter idler
3, oil pump gear 4 and outer clutch hub
back and forth until the toothing engages.
– Slide on the stop disk and driver.
– Apply Loctite 243 to the driving nut
5 and mount with a new lock
washer
6.
– Hold the driver with special tool 503.29.003.000 and tighten the
driving nut to 120 Nm (A/F 27).
– Turn down the lock washer the driving nut.
– Insert the pressure piece
7.
– Thoroughly oil all lining disks.
– Starting with lining disk
8, insert all 8 lining disks and all 7 clutch
disks
9 in the outer clutch hub, ending with a lining disk on top.
6-8
Repair manual KTM 250 -F Art.-No. 3.206.052-E
