Disassembling the carburetor
NOTE: Before you start disassembling the carburetor, you should look
for a clean workplace. It should offer you enough space to lay out all
individual components of the carburetor in perfect order.

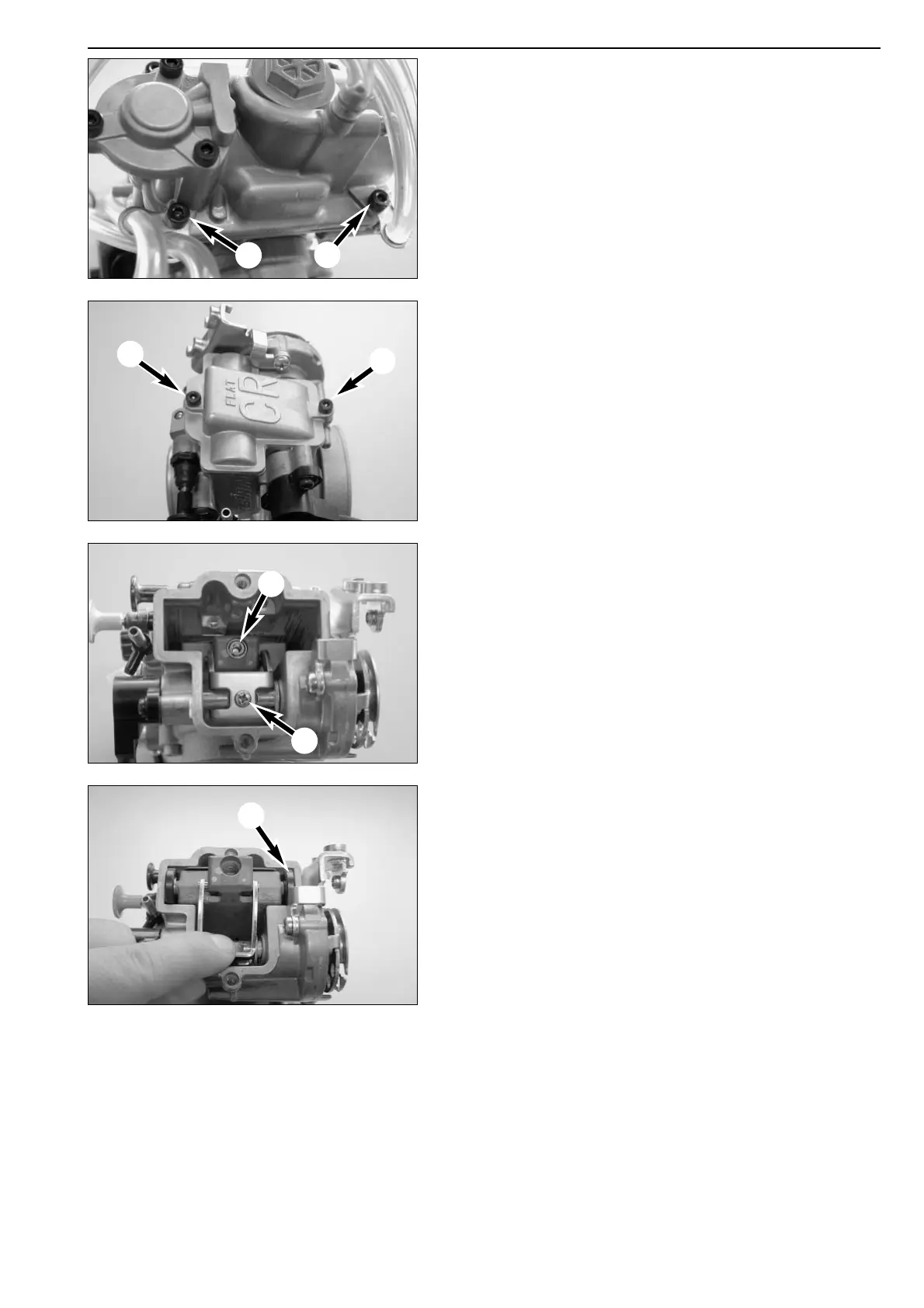

– Dismount the carburetor and remove any coarse dirt.
– Loosen both screws
1 and remove all of the vent hoses from the
carburetor.
– Remove both screws
2 and remove the slide cover and gasket from
the carburetor.
– Remove screw
3 and pull the jet needle out of the throttle slide.
– Remove screw
4.
– Pull the throttle slide arm up and take the throttle slide roller
5 and
the slide shim out of the carburetor.
