KTM 350 EXC-F 2023 User Manual

12 SERVICE WORK ON THE CHASSIS
78
Warning
Danger of poisoning Fuel is harmful to health.
– Avoid skin, eye and clothing contact with fuel.
– Immediately consult a doctor if you swallow fuel.
– Do not inhale fuel vapors.
– Rinse the affected area immediately with plenty of water in the event of contact with the skin.
– Rinse the eyes thoroughly with water, and consult a doctor in case of fuel contact with the eyes.
– Change your clothing if fuel spills on them.
– Keep fuels correctly in a suitable canister, and out of the reach of children.

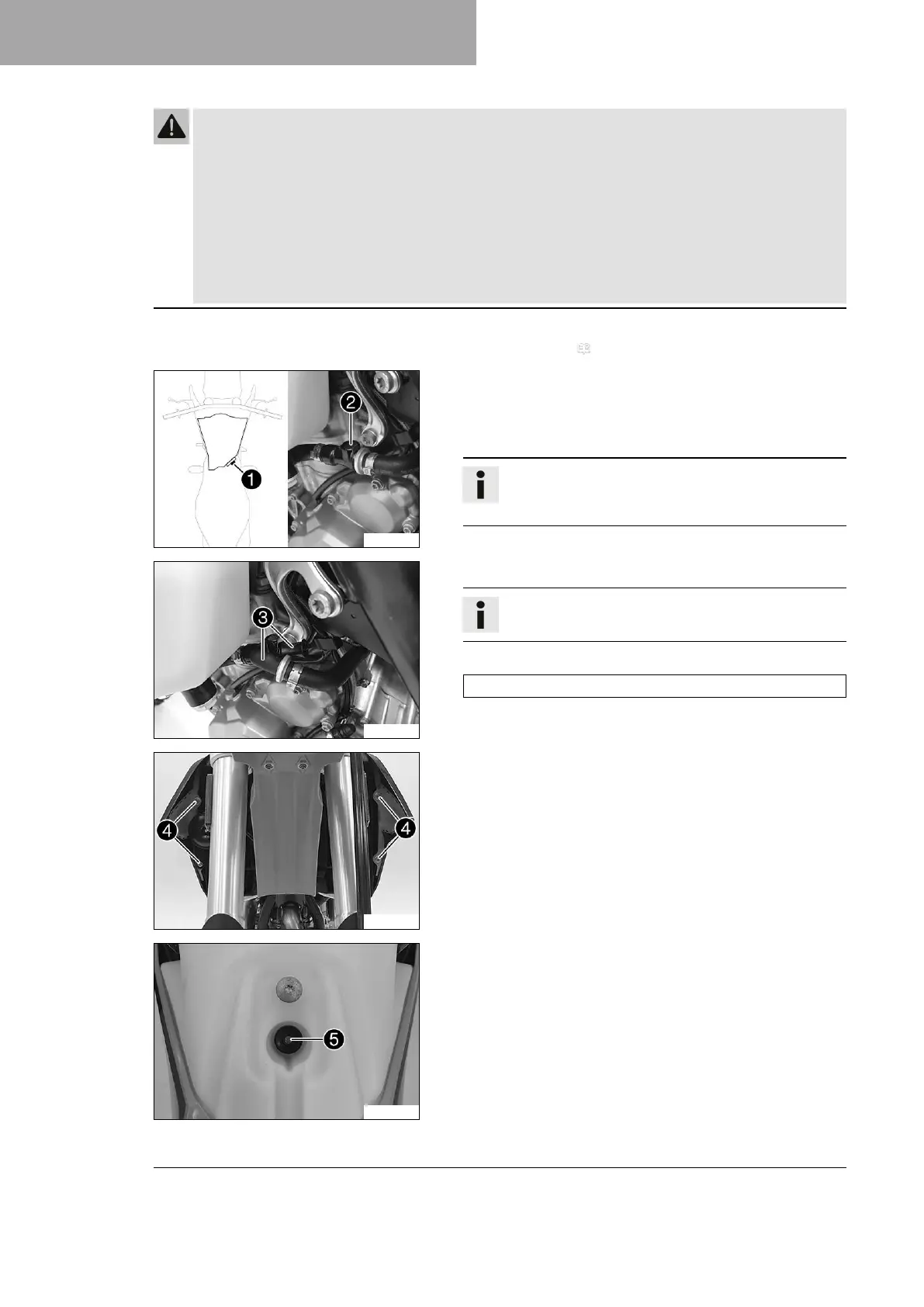

Preparatory work
– Remove the seat. ( p. 70)
V01824-10
Main work
–
Unplug connector
1
of the fuel pump.
–
Clean quick release coupling
2
thoroughly with compressed
air.
Info
Under no circumstances should dirt enter into the fuel
line. Dirt in the fuel line clogs the injection valve!
V01825-10
– Disconnect the quick release coupling.
Info
Remaining fuel may flow out of the fuel line.
–
Mount wash cap set
3
.
Wash cap set (81212016100)
V01764-10
–
Remove screws
4
.
– Hang the horn and horn bracket to one side.
V01766-10
–
Remove screw
5
with the rubber bushing.
– Remove the hose from the fuel tank breather.

KTM 350 EXC-F 2023 Specifications

General

Displacement	349.7 cm³
Bore x Stroke	88 mm x 57.5 mm
Starter	Electric starter
Transmission	6-speed
Cooling	Liquid cooled
Clutch	Wet, DDS multi-disc clutch, Brembo hydraulics
Front Suspension	WP XPLOR-USD, Ø 48 mm
Seat Height	960 mm
Engine Type	Single Cylinder, 4-Stroke
Frame	Central double-cradle type 25CrMo4 steel
Rear Suspension	WP XPLOR shock absorber
Front Brake	Disc brake, 260 mm
Rear Brake	Disc brake, 220 mm
ABS	Not equipped
Fuel System	Keihin EFI, throttle body 42 mm
Fuel Tank Capacity	9.0 liters
