SERVICE WORK ON THE CHASSIS 12
85
V01830-10

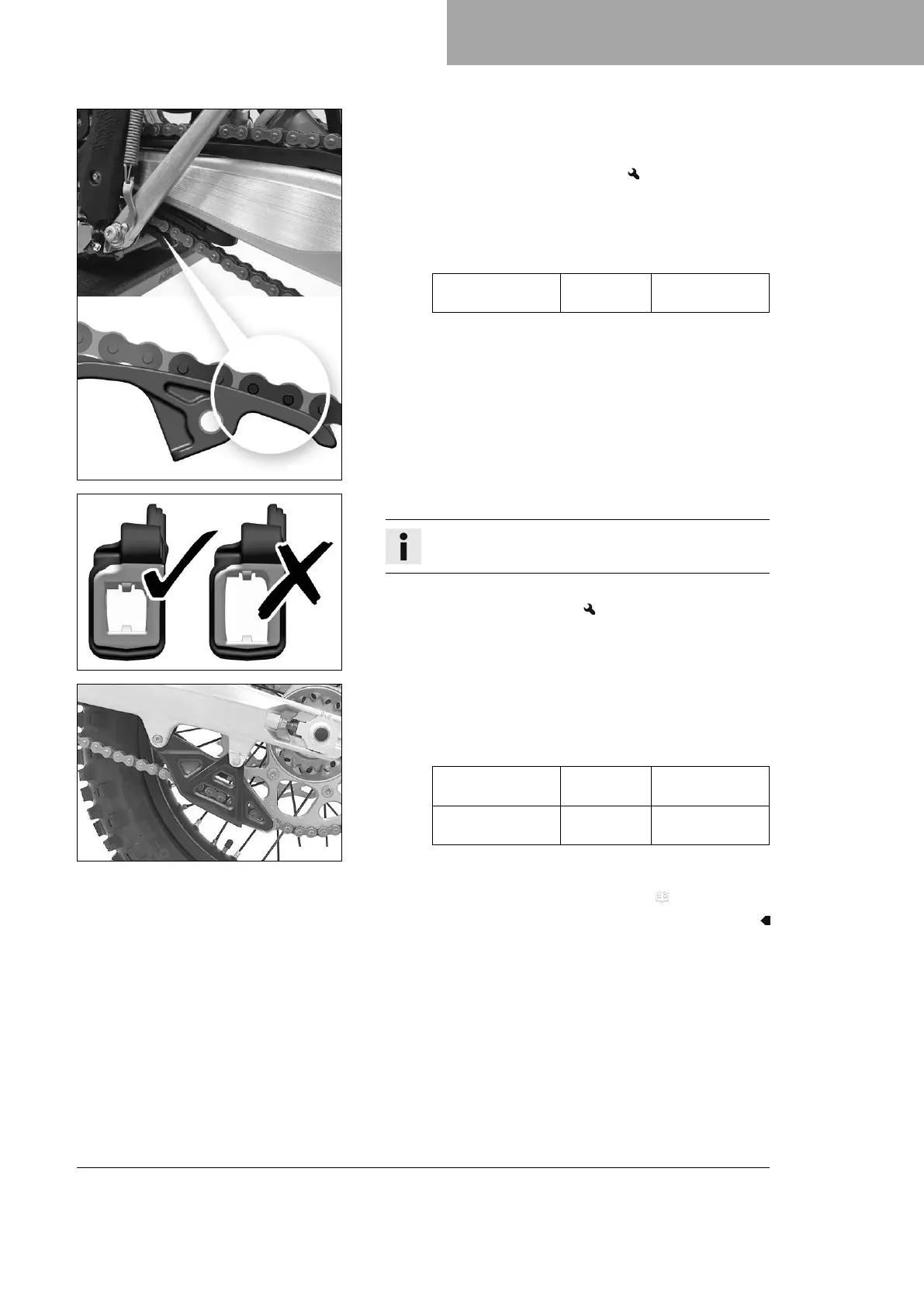

– Check chain sliding piece for wear.
» If the lower edge of the chain pins is in line with or below
the chain sliding piece:
– Change the chain sliding piece.
– Check that the chain sliding piece is firmly seated.
» If the chain sliding piece is loose:
– Tighten the screw of the chain sliding piece.
Guideline
Screw, chain slid-
ing piece
M8 15 Nm
(11.1 lbf ft)
401760-01
– Check the chain guide for wear.
Info
Wear can be seen on the front of the chain guide.
» If the light part of the chain guide is worn:
– Change the chain guide.
E00333-01
– Check that the chain guide is firmly seated.
» If the chain guide is loose:
– Tighten the screws on the chain guide.
Guideline
Remaining screws,
chassis
M6 10 Nm
(7.4 lbf ft)
Remaining nuts,
chassis
M6 10 Nm
(7.4 lbf ft)
Finishing work
– Remove the motorcycle from the lift stand. ( p. 61)

KTM 350 EXC-F 2023 Specifications

General

Displacement	349.7 cm³
Bore x Stroke	88 mm x 57.5 mm
Starter	Electric starter
Transmission	6-speed
Cooling	Liquid cooled
Clutch	Wet, DDS multi-disc clutch, Brembo hydraulics
Front Suspension	WP XPLOR-USD, Ø 48 mm
Seat Height	960 mm
Engine Type	Single Cylinder, 4-Stroke
Frame	Central double-cradle type 25CrMo4 steel
Rear Suspension	WP XPLOR shock absorber
Front Brake	Disc brake, 260 mm
Rear Brake	Disc brake, 220 mm
ABS	Not equipped
Fuel System	Keihin EFI, throttle body 42 mm
Fuel Tank Capacity	9.0 liters
