KTM 50 SX 2012 Setup Instructions

WORK 4

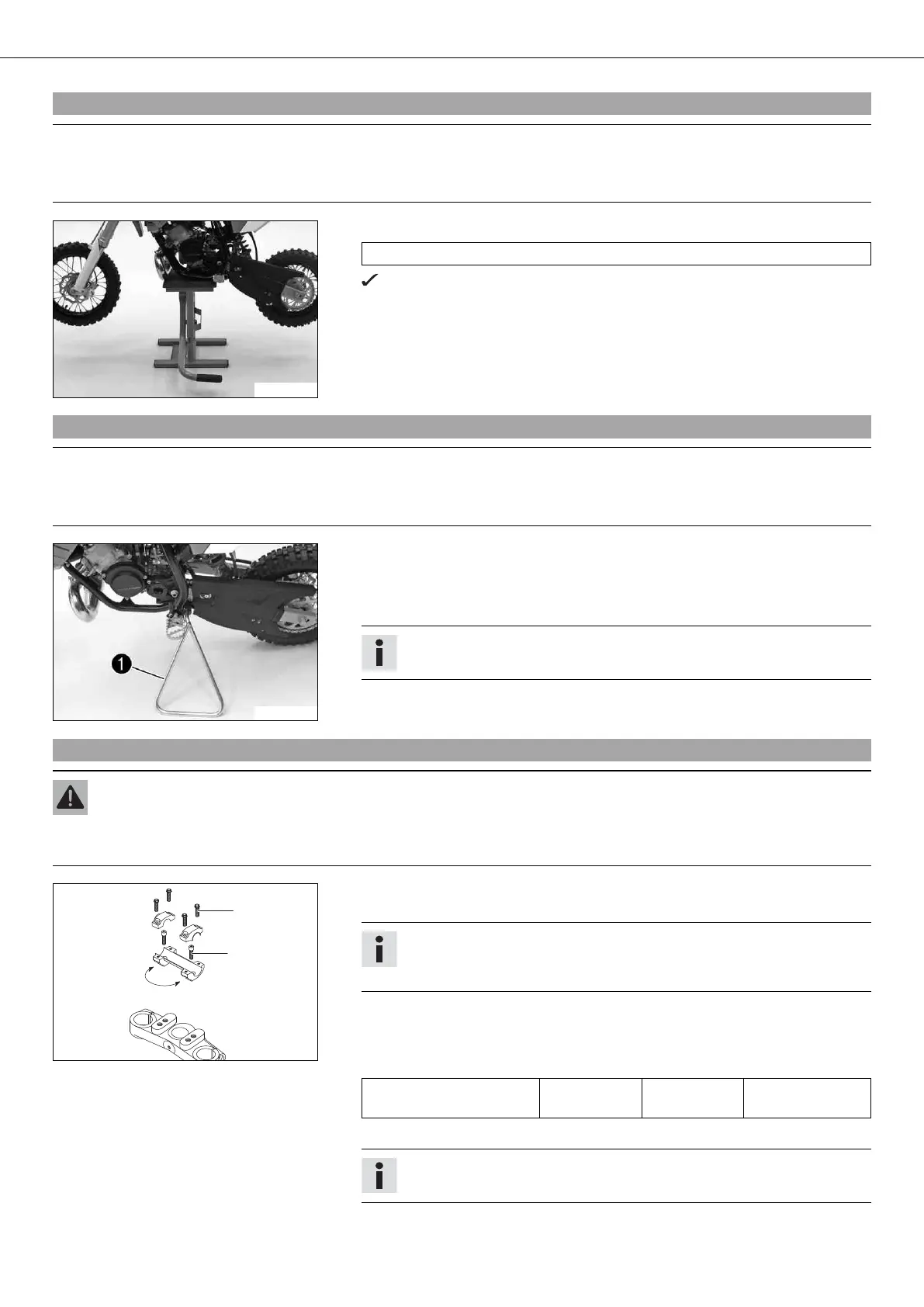

3.1Raising the motorcycle with a lift stand
Note
Danger of damage The parked vehicle may roll away or fall over.
– Always place the vehicle on a firm and even surface.
601590-01
– Raise the motorcycle at the frame underneath the engine.
Lift stand (59229055000)
The tires should no longer be in contact with the ground.
– Secure the motorcycle against falling over.
3.2Removing the motorcycle from the lift stand
Note
Danger of damage The parked vehicle may roll away or fall over.
– Always place the vehicle on a firm and even surface.
601585-10
– Remove the motorcycle from the lift stand.
– Remove the lift stand.
– To park the motorcycle, insert plug-in stand 1 into the plug-in stand bracket on
the left side of the vehicle.
Info
Remove the plug-in stand before riding.
3.3Adjusting handlebar position x
Warning
Danger of accidents Handlebar breakage.
– If the handlebar is bent or straightened it will cause material fatigue, and the handlebar can break. Always replace handle-
bar.
0
0
1
1
0
0
22
400564-10
– Remove the four screws 1. Remove the handlebar clamps. Remove the handlebar
and lay it to one side.
Info
Protect the motorcycle and its attachments from damage by covering them.
Do not bend the cables and lines.
– Remove the two screws 2. Remove the handlebar support.
– Place the handlebar support in the required position. Mount and tighten the two
screws 2.
Guideline
Screw, handlebar support M10 40 Nm
(29.5 lbf ft)
Loctite
®
243™
– Position the handlebar.
Info
Make sure cables and wiring are positioned correctly.
